1.0 to 1.4GHz 4.5dbi Vehicle Omnidirectional Continuous-High-Power antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

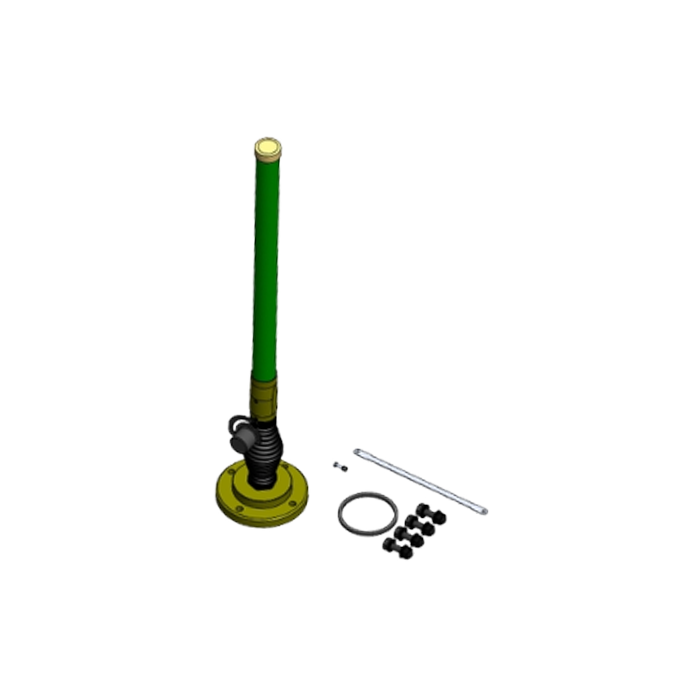

1.0 - 1.4 GHz 4.5dBi High-Power Tactical Vehicle Antenna
Model: MJ-1014G05S-NF | Continuous-High-Power | 150W CW
The MJ-1014G05S-NF is a high-performance Tactical Vehicular Antenna specifically designed for Signal Management Systems within the 1.0 GHz to 1.4 GHz L-Band spectrum. Delivering a robust 4.5 dBi gain and a specialized 28-degree vertical radiation pattern, this antenna maximizes transmission range for mobile mission-critical assets. Built with a heavy-duty spring base, it ensures unwavering link stability under the most extreme battlefield environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1.0 GHz - 1.4 GHz (L-Band) |
| Gain | 4.5 dBi |
| Maximum Power | 150 Watts (Continuous Wave) |
| Vertical Beamwidth | 28° (Concentrated Signal Path) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental

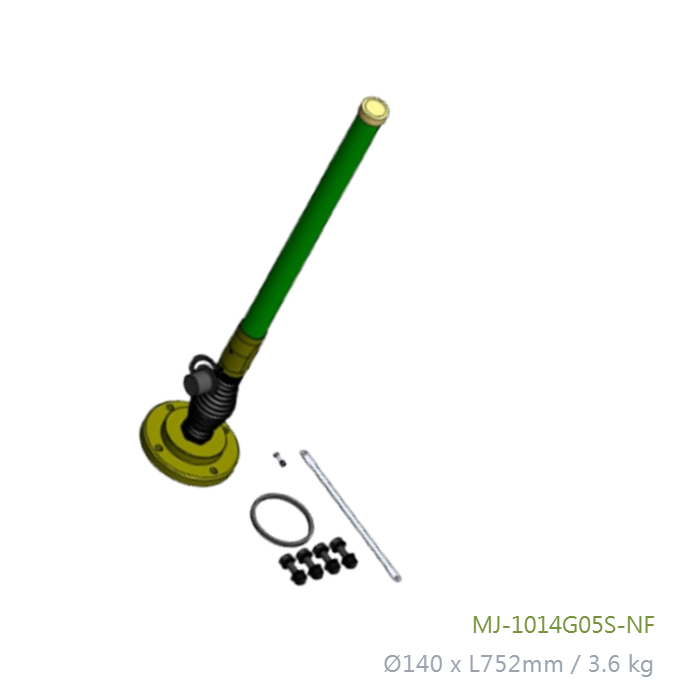

| Dimensions | Ø140 x L752 mm |
| Antenna Weight | 3.6 kg |
| Compliance | MIL-STD-810G / IP65 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
Superior 4.5dBi Gain
Concentrates radiated energy towards the horizon with a narrow 28° vertical beam, significantly extending the effective communication range for tactical networks.
Heavy-Duty Buffer Spring
Equipped with a robust mechanical spring base that deflects and absorbs intense physical stress, protecting the antenna and vehicle mount during off-road travel.
150W Continuous-High-Power
Designed for mission-critical operations, handling the thermal load of 150W continuous transmission to maintain signal dominance in complex environments.
Tactical Grade Endurance
Constructed with reinforced tactical materials to survive extreme vibration, corrosive salt environments (96HR), and global temperature extremes.
Get a Quote / Customization
Contact us for custom mounting flange adaptations or alternative tactical camouflage colors.
