Rugged Wideband Vehicular Antenna (MJ) | FT-RF
- Select
HEAVY-DUTY TACTICAL COMMUNICATIONS

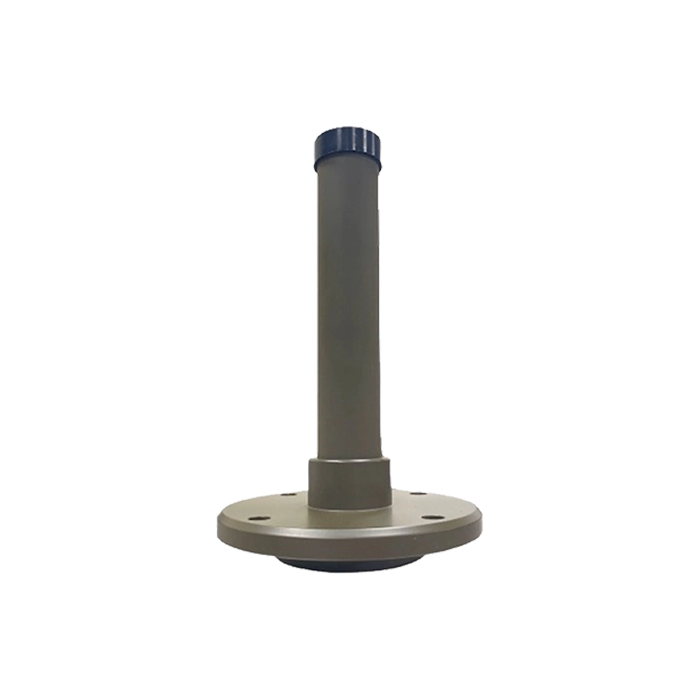

High-Power Rugged Vehicular Antennas (MJ)
The High-Power Rugged Vehicular Antenna (MJ Series) is a heavy-duty, field-proven solution engineered for mobile tactical communications and mission-critical Signal Security operations. Designed for military, law enforcement, and convoy protection vehicles, this series combines robust power handling with exceptional broad-spectrum coverage to maintain flawless link integrity under severe environmental and operational stress.
🛡️ Next-Gen Engineering Highlights
High Power Handling
Optimized RF architecture supports sustained high RF power inputs without thermal degradation, ensuring reliable broad-spectrum signal coverage.
Ultra-Wideband Coverage
Consolidates multiple operational bands into a single vehicular mount, reducing antenna clutter and enabling seamless multi-channel communications.
Heavy-Duty Mechanical Resilience
Engineered with shock-absorbing spring bases and reinforced whip elements to withstand severe off-road impacts, low-hanging foliage, and high-speed vibrations.
All-Weather IP67 Protection
Housed in heavy-duty radomes built to resist extreme temperatures, salt spray, sandstorms, and water immersion in harsh tactical environments.
Key Applications:
| Key Parameter | Technical Specification |
|---|---|
| Power Input Capacity | High RF Continuous Power Thermal Rating |
| Radiation Coverage | 360° Omnidirectional High Gain Output |
| Mechanical Base | Heavy-Duty Impact-Absorbing Spring Base |
| Environmental Standard | IP67 Waterproof, Dustproof & Corrosion-Proof |
| Frequency Range | Ultra-Wideband Multi-Octave Spectrum Support |
| Deployment Integration | Standard Vehicular Heavy-Duty Mounting Base |
High RF Power Capacity Ultra-Wideband Spectrum Omnidirectional Gain Heavy-Duty Spring Base IP67 Weatherproof Rating Tactical Vehicle Ready
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning for your radar or maritime system. Made in Taiwan.
MJ-05M02G03A-NF
500MHz to 2000MHz 3dbi Vehicular Omnidirectional Antenna, MJ-05M02G03A-NF
View Details
Made in Taiwan
| Frequency Range: | 500 MHz - 2000 MHz |
| Maximum Power: | 500 Watts (CW) |
| Gain (Peak): | 3 dBi |
| Dimension: | Ø 140 x L231 mm |
MJ-1740G03A-NF
1700MHz to 4000MHz 3dbi Vehicular Omnidirectional WiFi/ 4G/ 3G/ 5G Antenna, MJ-1740G03A-NF
View Details
Made in Taiwan
| Frequency Range: | 1700 MHz - 4000 MHz |
| Maximum Power: | 200 Watts (CW) |
| Gain (Peak): | 3 dBi |
| Dimension: | Ø 140 x L209 mm |
Made in Taiwan
| Frequency Range: | 300 MHz - 6000 MHz |
| Gain: | 0 dBi - 7 dBi (Typ: 3 dBi) |
| Maximum Power: | 200 Watts (CW) |
| Compliance: | MIL-STD-810G |
Made in Taiwan
| Frequency Range: | 600 MHz - 1200 MHz |
| Maximum Power: | 500 Watts (CW) |
| Gain: | 3 dBi |
| Dimension: | Ø 140 x L331 mm |
MJ-8697M03-NF
680MHz to 1100MHz 3dbi Vehicular Omnidirectional Antenna, MJ-06M11G03A-NF
View Details
Made in Taiwan
| Frequency Range: | 680 MHz - 1100 MHz |
| Maximum Power: | 500 Watts (CW) |
| Gain: | 3 dBi |
| Dimension: | Ø 140 x L311 mm |
MJ-200500M03A-NF
200MHz to 500MHz 3dbi Vehicular and Base Omnidirectional Antenna, MJ-02M05G03A-NF
View Details
Made in Taiwan
| Frequency Range: | 200 MHz - 500 MHz |
| Maximum Power: | 200 Watts (CW) |
| Gain (Peak): | 3 dBi |
| Compliance: | IP67 / RoHS / CE / FCC |
