1000MHz to 1400MHz 3dBi Monopole Vehicle Antenna with N-Female Connector (MJ-1114G03M-NF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification
1000MHz to 1400MHz 3dBi Monopole Vehicle Antenna
Model: MJ-1114G03M-NF | Monopole Vehicle Mount | N-Female | MIL-STD-810G

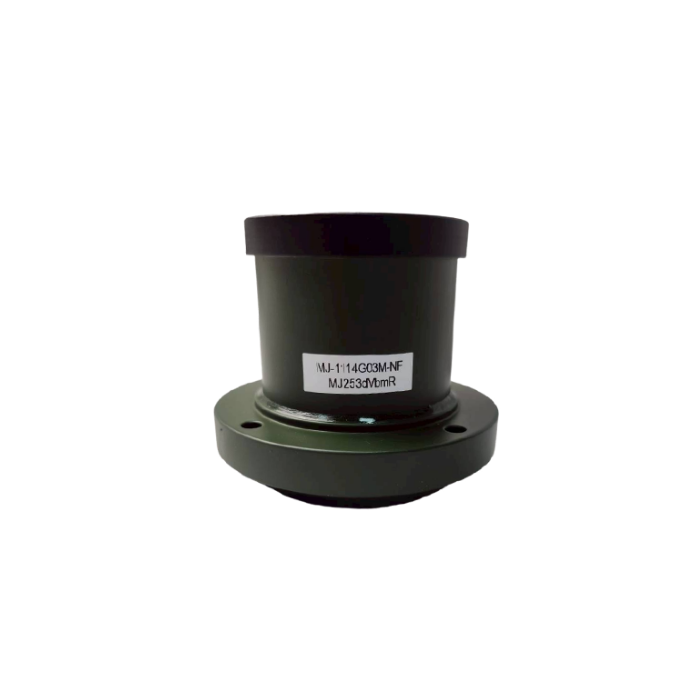

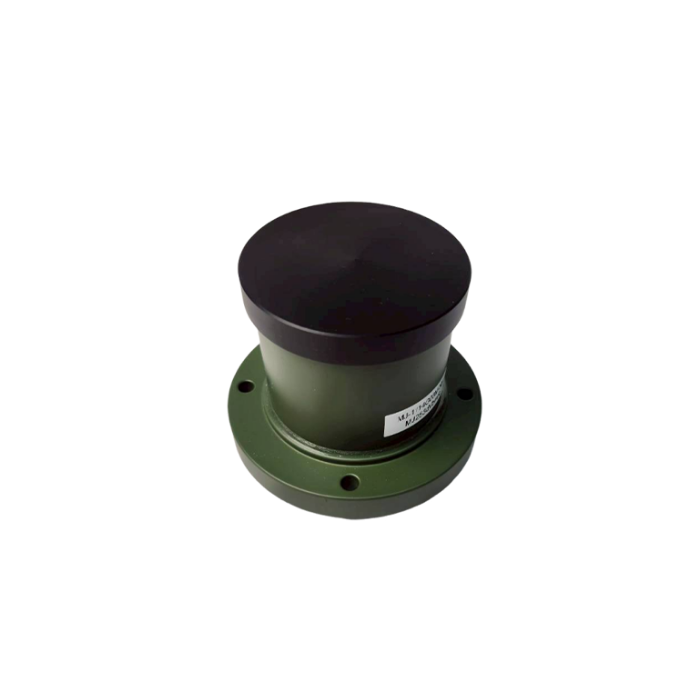

The MJ-1114G03M-NF is an ultra-compact, high-performance L-Band monopole vehicle antenna engineered for tactical communications, mobile transceivers, and wireless telemetry across 1000MHz to 1400MHz. Featuring an ultra-low profile radome (Dia. 65.00 mm x Total H 77.50 mm), integrated bottom breathable raft vent for internal condensation release, 4-hole PCD 78mm flange with included green silicone gasket, and standard N-Female interface, it delivers stable 3dBi omnidirectional coverage and complies with MIL-STD-810G specifications. Designed and manufactured in Taiwan by FT-RF.
Hardware Performance

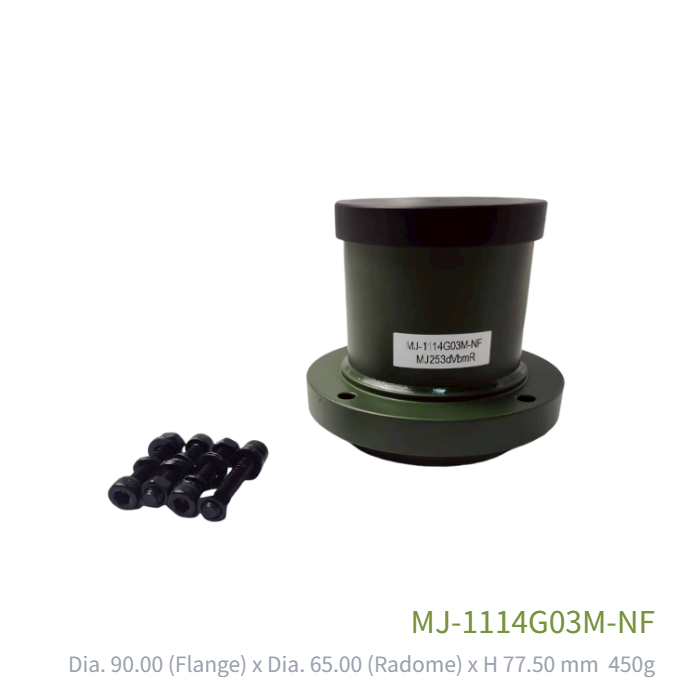

| Dimensions | Dia. 90.00 (Flange) x Dia. 65.00 (Radome) x H 77.50 mm (Upper Height: 55.50 mm) |
| Weight | 450 g (446.27 g Estimated CAD Total) |

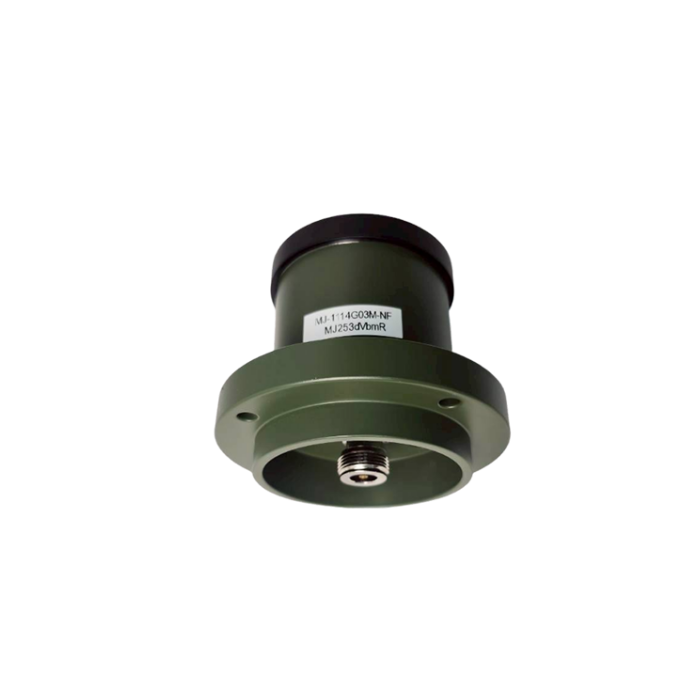

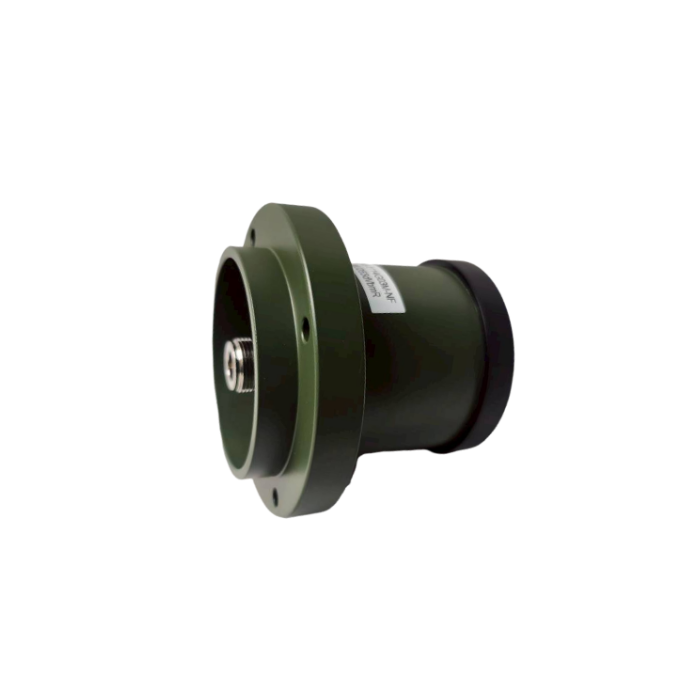

| Connector | N-Female (50 Ohm) with Breathable Raft Vent |
| Mounting Bracket | 4-Hole PCD 78mm Pedestal Base w/ Green Silicone Gasket & M5 Screws |
| Antenna Length (Body) | 77.50 mm (Radome Body Height: 55.50 mm / Bottom Base: 22.00 mm) |
| Hardware Material | Weatherproof Composite Radome & AISI 304 Stainless Steel Hardware |
Software & Control
| Frequency Range | 1000 MHz to 1400 MHz (Continuous L-Band) |
| Gain | 3 dBi (Nominal Peak) |
| Antenna Type | Monopole Vehicle Antenna |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
High Precision Control
Delivers continuous L-band coverage from 1000MHz to 1400MHz with horizontal 360° omnidirectional radiation for tactical mobile networking.
Rugged Reliability
Fully compliant with MIL-STD-810G requirements, featuring salt-spray rated AISI 304 hardware, silicone gasket seal, and high-impact composite housing.
Versatile Integration
Ultra-low profile 77.5mm height with 4-hole PCD 78mm pedestal flange allows low-drag aerodynamic mounting on armored roofs and UAV ground stations.
High Load Capacity
Equipped with a built-in breathable raft vent to prevent internal condensation build-up under extreme tactical operational environments.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
