DIRECTIONAL TRANSMISSION SOLUTION

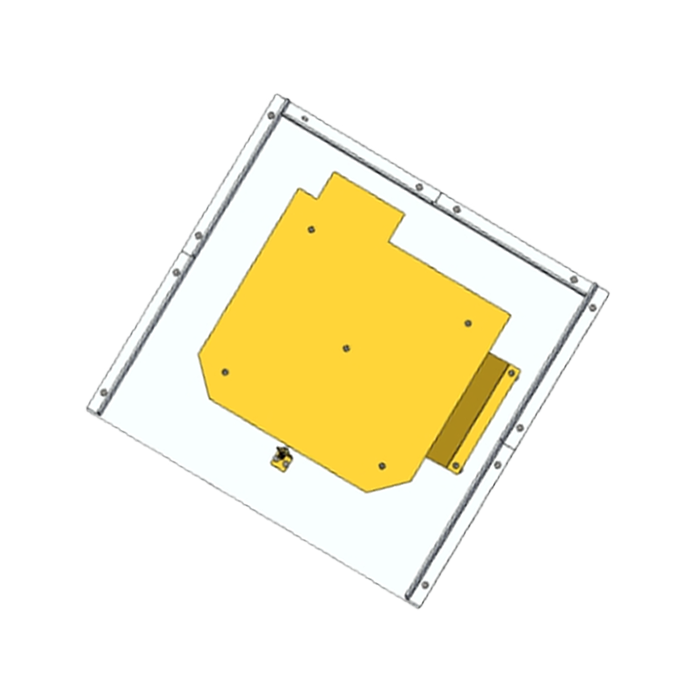

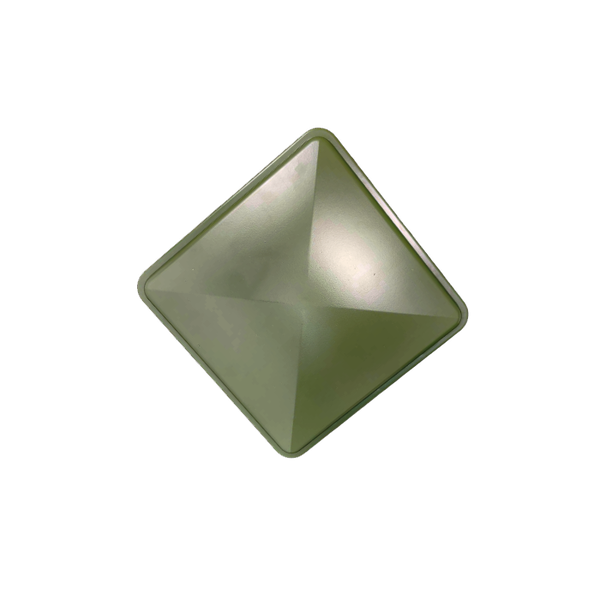

High-Gain Panel Antennas (MP)
The High-Gain Panel Antennas (MP Series) are specifically engineered for long-range communication and high-capacity signal transmission. Designed for critical infrastructure applications, these antennas offer superior gain and directional precision in a rugged, compact form factor.
*Custom frequency tuning, specialized mounting brackets, and industrial color finishes (Forest Green, Desert Tan, Stealth Black) available upon request. Made in Taiwan.
📡 Key Technical Features
High Performance Capacity
Optimized for advanced transmitters requiring reliable performance under high thermal and electrical loads.
Directional Precision
Delivers focused beamwidth patterns to minimize interference and maximize long-range signal reach.
Weatherproof Durability
Constructed with UV-resistant materials and robust sealing for unwavering long-term outdoor reliability.
Low-Profile Infrastructure
Features a professional-grade low-profile housing ideal for base station links and streamlined installation.
Key Applications:
| Key Parameter | Technical Specification |
|---|---|
| Radiation Pattern | Directional Focused Beamwidth Alignment |
| Power Capacity | High Thermal & Electrical Load Capacity |
| Gain Architecture | High-Gain Long-Range Coverage Optimization |
| Enclosure Construction | UV-Resistant Weatherproof Sealed Radome |
| Form Factor | Low-Profile Streamlined Heavy-Duty Housing |
| Deployment Compatibility | Base Station & Critical Infrastructure Ready |
High Thermal Load Capacity Focused Directional Beamwidth UV-Resistant Weatherproof Radome Low-Profile Streamlined Housing Base Station Link Ready High-Gain Long-Range Coverage
🛠️ Customization & Engineering Services
We provide custom mechanical engineering and electrical tuning for directional panel deployments:
- Custom Frequency Tuning: Targeted band optimization for cellular, telemetry, or private networks.
- Heavy-Duty Tower Brackets: Adjustable tilt and swivel mounting hardware.
- Industrial Surface Finishes: UV-resistant radome coatings in Forest Green, Desert Tan, or Stealth Black.
- Traceable Calibration: Individual Gain, VSWR & Beamwidth Radiation Pattern Test Reports.
Direct Technical Support: info-tw@ft168.com.tw
📐 Recommended Panel Accessories
Enhance your directional panel installation with compatible mounting hardware and coaxial assemblies:
MP-2425G14A-NF
2.4GHz to 2.5GHz 14dBi High Power Panel Directional Outdoor N-Female Antenna (MP-2425G14A-NF)
View Details
FT-RF
| Frequency Range: | 2.4GHz to 2.5GHz |
| Gain (Min): | 14 dBi |
| V.S.W.R.: | < 2.0:1 |
| Connector: | N-Female |
| 2022/10/24 | |
FT-RF
| Frequency Range: | 400MHz to 8GHz |
| Gain / F/B / 3dB: | 6.8-10.1dBi / 7-27dB / E:27°-62° H:39°-95° |
| Max Power: | High Power Design |
| Connector: | N-Female |
| 2022/09/02 | |
FT-RF
| Frequency Range: | 330MHz to 8GHz |
| Gain (AVG): | 10 dBi |
| Max Power: | High Power Design |
| Connector: | N-Female |
| 2022/09/02 | |
FT-RF
| Frequency Range: | 400MHz to 3GHz |
| Gain (AVG): | 9 dBi |
| Max Power: | 150W (CW) / 350W (Peak) |
| Connector: | N-Female |
| 2026/09/02 | |
FT-RF
| Product Type: | Directional Panel Antenna |
| Frequency Range: | 1.6 - 1.8 GHz |
| Gain: | 8 dBi |
| Max Power: | 100W |
| Connector: | SMA-Female |
FT-RF
| Frequency Range: | 600 - 800 MHz |
| Nominal Gain: | 8 dBi |
| Max Power (C.W): | 500 Watts |
| Dimensions: | 362 x 342 x 33 mm |
FT-RF
| Frequency Range: | 800 MHz to 1000 MHz |
| Gain: | 8 dBi |
| VSWR: | ≤ 1.5 |
| Connector: | SMA-Female |
| Max Power: | 300W |
FT-RF
| Frequency Range: | 1 GHz - 1.2 GHz |
| Nominal Gain: | 8 dBi |
| Connector Port: | SMA-Female |
| Dimensions: | 15 x 15 x 10 cm |
FT-RF
| Frequency Range: | 1.2 GHz - 1.4 GHz |
| Nominal Gain: | 8 dBi |
| Connector Port: | SMA-Female |
| Dimensions: | 199 x 150 x 28 mm |
FT-RF
| Model Number: | MP-1416G08A-SF |
| Frequency Range: | 1.4 - 1.6 GHz |
| Gain: | 8 dBi |
| Max Power: | 300 W (CW) |
