PRECISION MECHANICAL POSITIONING

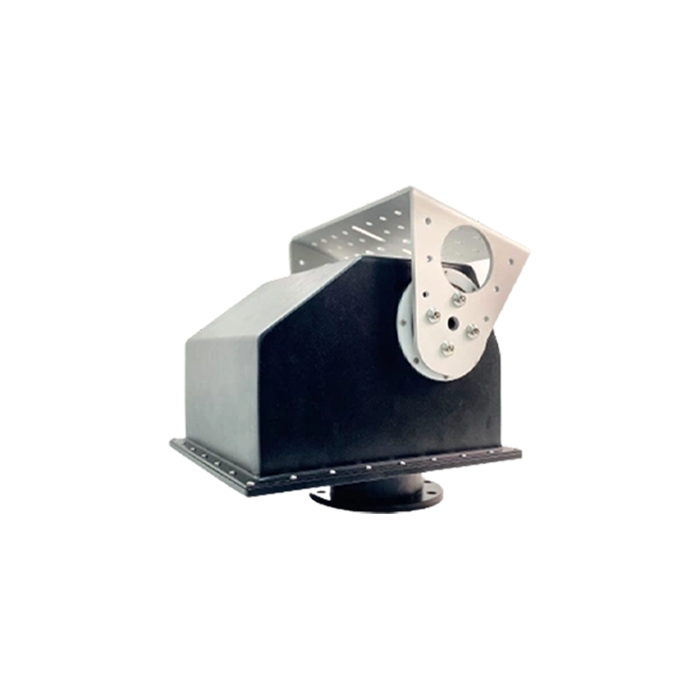

Motorized Pan-Tilt Positioners (PTU)
Our Motorized Pan-Tilt Positioners (PTU Series) provide precision 2-axis rotational control engineered for high-reliability antenna alignment, electro-optical tracking, and remote surveillance payloads. Built to perform flawlessly under severe environmental stress, these heavy-duty positioners ensure stable and continuous operational tracking.
*Custom load capacities, specialized mounting adapters, and industrial finishes (Forest Green, Desert Tan, Black) available upon request. Made in Taiwan.
🎯 High-Precision Tracking & Control
High Payload Capacity
Engineered to support heavy directional antenna arrays, optical sensor packages, and radar systems.
Sub-Degree Precision Alignment
Utilizes high-resolution encoders and zero-backlash drive mechanisms for exact spatial alignment.
Rugged All-Weather Housing
Sealed aluminum alloy construction with industrial-grade environmental protection against dust, water, and corrosion.
Standard Protocol Integration
Supports RS-422/485 serial communication and standard control protocols for seamless system integration.
Key Applications:
| Key Parameter | Technical Specification |
|---|---|
| Axis Motion Range | 360° Continuous Pan Rotation / ±90° Tilt Elevation |
| Angular Accuracy | Sub-Degree Precision with High-Resolution Feedback |
| Communication Interface | RS-422 / RS-485 Serial Command Control |
| Environmental Sealing | IP66 Waterproof & Dustproof Rugged Housing |
| Construction Material | High-Strength Anodized Marine-Grade Aluminum Alloy |
| Operating Temperature | Wide Industrial Grade Range (-30°C to +65°C) |
360° Pan / ±90° Tilt Sub-Degree Accuracy RS-422 / RS-485 Serial Control IP66 Weatherproof Sealing High Load Capacity Engine Industrial Temp Grade
🛠️ Customization & Engineering Services
We offer tailored electrical, mechanical, and protocol customization for motorized positioning systems:
- Custom Payload Brackets: Tailored plates for horn, dish, optical, or multi-sensor packages.
- Protocol Options: Pelco-D/P, Modbus, or custom Ethernet/IP control options.
- Industrial Surface Coatings: Anodized or powder-coated in Forest Green, Desert Tan, or Black.
- Traceable Motion Testing: Individual Angular Precision & Load Capacity Test Reports.
Direct Technical Support: info-tw@ft168.com.tw
📐 Recommended Positioning Accessories
Enhance your pan-tilt deployment with compatible heavy-duty cables, tripods, and brackets:
NEW
FT-RF
| Product Type: | Pan and Tilt Positioner |
| Rotation Range: | Pan 360° / Tilt -55°~+60° |
| Load Capacity: | 35 Kgs |
| Protection / Temp: | IP66 / -40°C~+65°C |
NEW
FT-RF
| Payload Capacity: | Up to 20 kg |
| Communication: | RS-485 (PELCO-D) / CAN Bus |
| Encoder Interface: | RS-422 (BiSS-C) |
| Material: | Aluminum & Stainless Steel |
| Input Power: | DC 24V |
