BROADBAND POLARIZATION SERIES

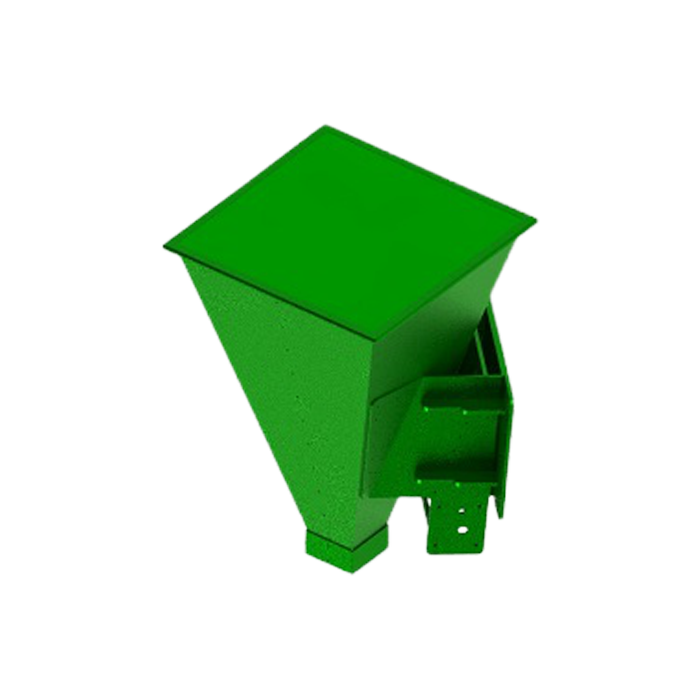

Rugged Horn Antennas (HL)

Our Rugged Horn Antennas (HL-Series) are high-gain, broadband solutions specifically optimized for high-capacity transmitting, radar scanning, and signal management receiving applications across vehicle-mounted and stationary platforms.

*Custom mounting flanges, phase-matched sets, specialized polarization (LHCP/RHCP/Linear), and industrial color finishes (Forest Green, Desert Tan, Stealth Black) available upon request. Made in Taiwan.

📡 Broadband Models & Technical Performance

1GHz to 2GHz 10dBi Horn

Left Polarization broadband horn antenna providing 10dBi gain for medium-range high-capacity signal applications.

2GHz to 8GHz 16dBi Horn

High-gain 16dBi Left Polarization horn antenna optimized for broad-spectrum radar scanning and transmission.

7GHz to 18GHz 20dBi Horn

Ultra-high gain 20dBi Left Polarization horn antenna designed for high-frequency precision RF operations.

IP54 Waterproof Protection

Built with IP54 waterproof rating and high continuous power handling, specifically optimized for professional vehicles.

Key Applications:

Signal Management Receivers High-Capacity Signal Transmitting Radar Scanning & Tracking Professional Vehicle Mounting Broadband Spectrum Monitoring Stationary & Mobile Platform Links

Key Parameter	Technical Specification
Frequency Range	1 GHz – 18 GHz Broadband Coverage Options
Gain Performance	Up to 20 dBi High Gain Architecture
Polarization Type	Left Hand Circular / Linear Polarization Options
Power Handling	High RF Thermal Power Handling Capacity
Environmental Rating	IP54 Waterproof & Weatherproof Sealing
Platform Mounting	Professional Vehicle Ready & Stationary Rigging

1GHz to 18GHz Coverage Up to 20dBi High Gain Left Polarization Setup IP54 Waterproof Sealing High Power Efficiency Vehicle & Tower Mount

🛠️ Customization & Engineering Services

We offer tailored mechanical and electrical customization for specialized radar and horn deployment:

Custom Frequency Bands: Specific band optimization (e.g. C-Band, X-Band, Ku-Band).
Polarization Options: LHCP, RHCP, Dual-Linear, or Single Linear configurations.
Industrial Surface Finishes: Anodized or powder-coated in Forest Green, Desert Tan, or Stealth Black.
Traceable Calibration: Individual Gain & Radiation Pattern Calibration Test Reports.

Direct Technical Support: info-tw@ft168.com.tw
