88MHz to 1GHz 7dBi Outdoor Log-Periodic N-Female Antenna (IP-08M1G08-NF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

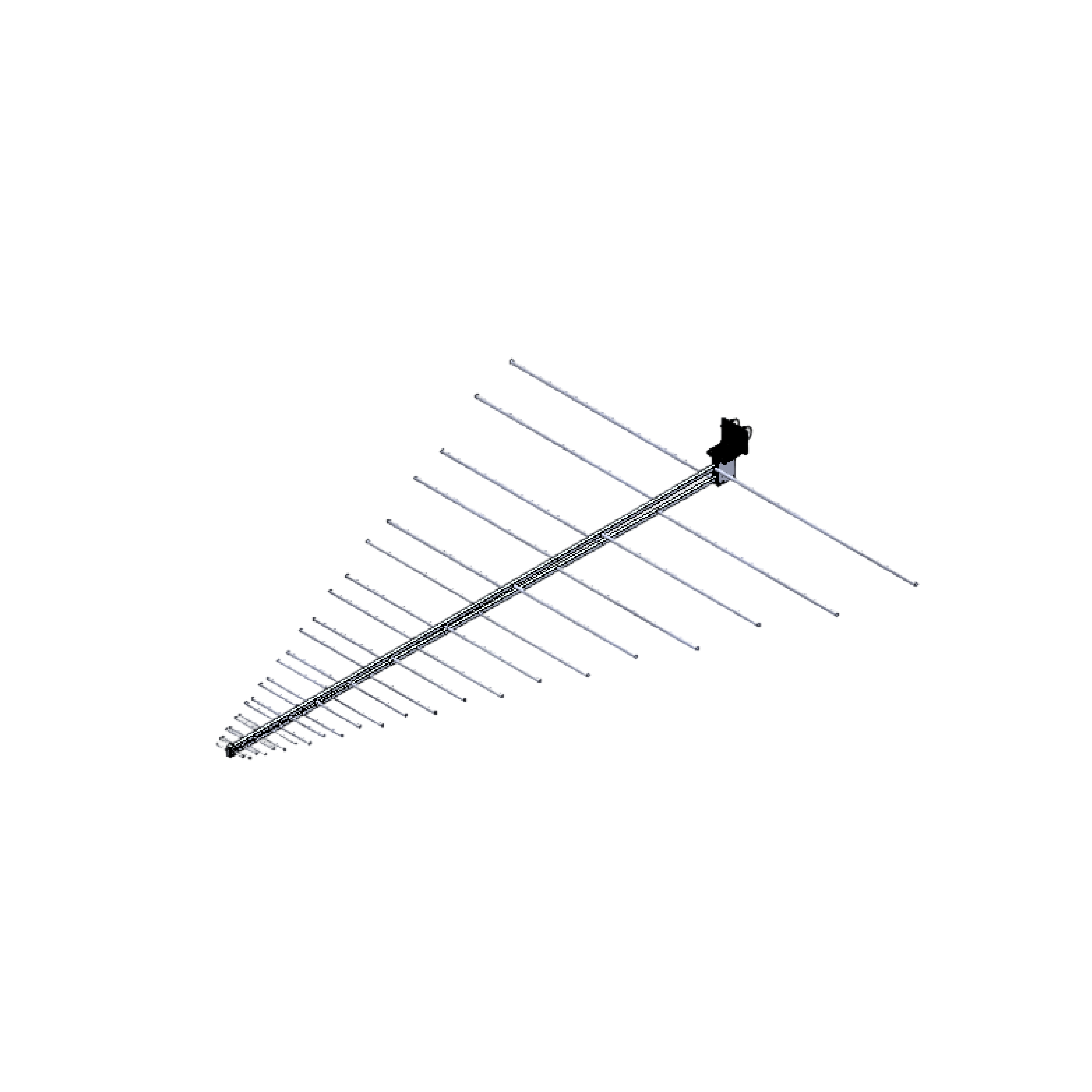

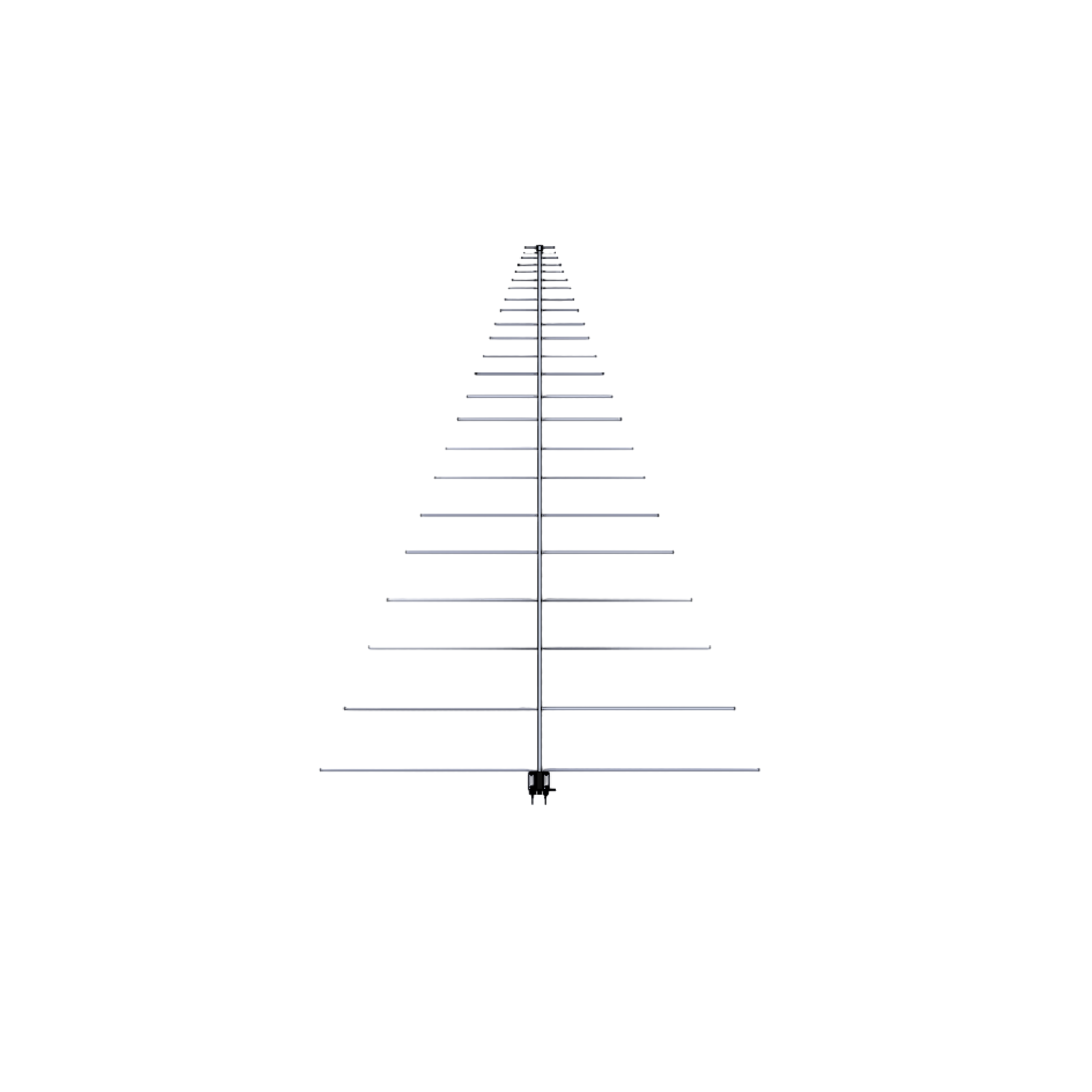

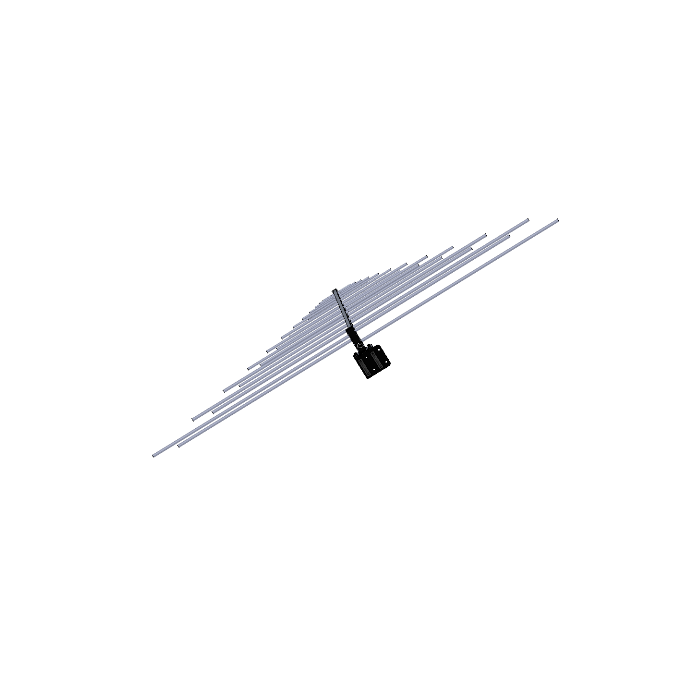

88MHz to 1GHz 7dBi Outdoor Log-Periodic Antenna
Model: IP-08M1G08-NF | Outdoor Log-Periodic | N-Female | IP65
The IP-08M1G08-NF is a high-performance 88MHz to 1GHz outdoor log-periodic directional antenna engineered for broad-band communications, surveillance, and tactical RF monitoring systems. Providing a nominal peak gain of 7 dBi, horizontal polarization angle of 110 degrees, vertical polarization angle of 56 degrees, and 300W maximum power handling, it features robust IP65 weatherproof testing, N-Female connector, and heavy-duty outdoor durability. Designed and manufactured in Taiwan by FT-RF.
Hardware Performance

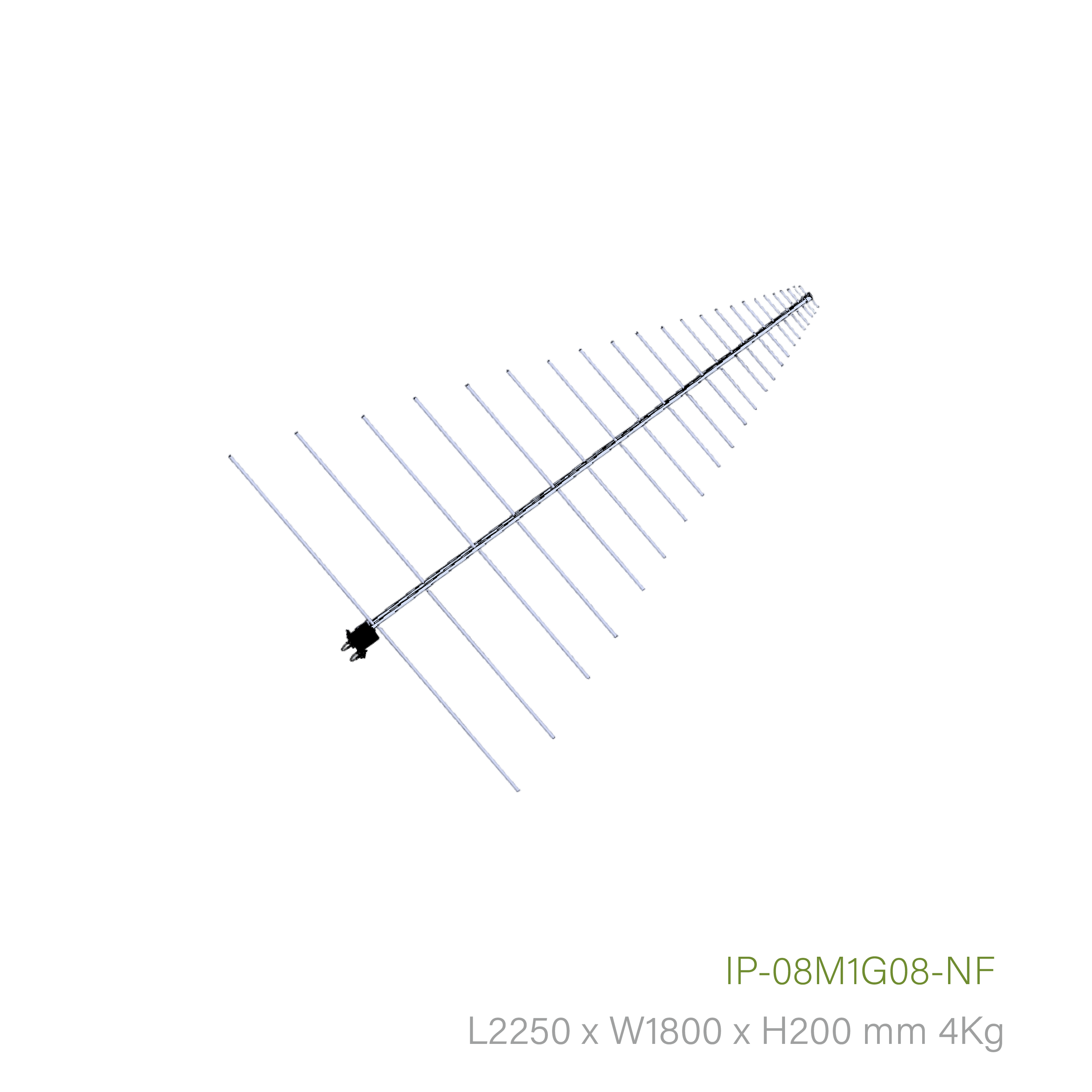

| Dimensions (L x W x H) | 2250 x 1800 x 200 mm |
| Weight | 4 kg (6139.13 g Estimated CAD Total) |
| Connector | N-Female (50 Ohm) |
| Antenna Type | Outdoor Log-Periodic Directional Antenna |
| Environmental Protection | IP65 Waterproof Test, Humidity 95%, -30 to 120 deg |
Software & Control
| Frequency Range | 80MHz to 1000MHz (88MHz to 1GHz) |

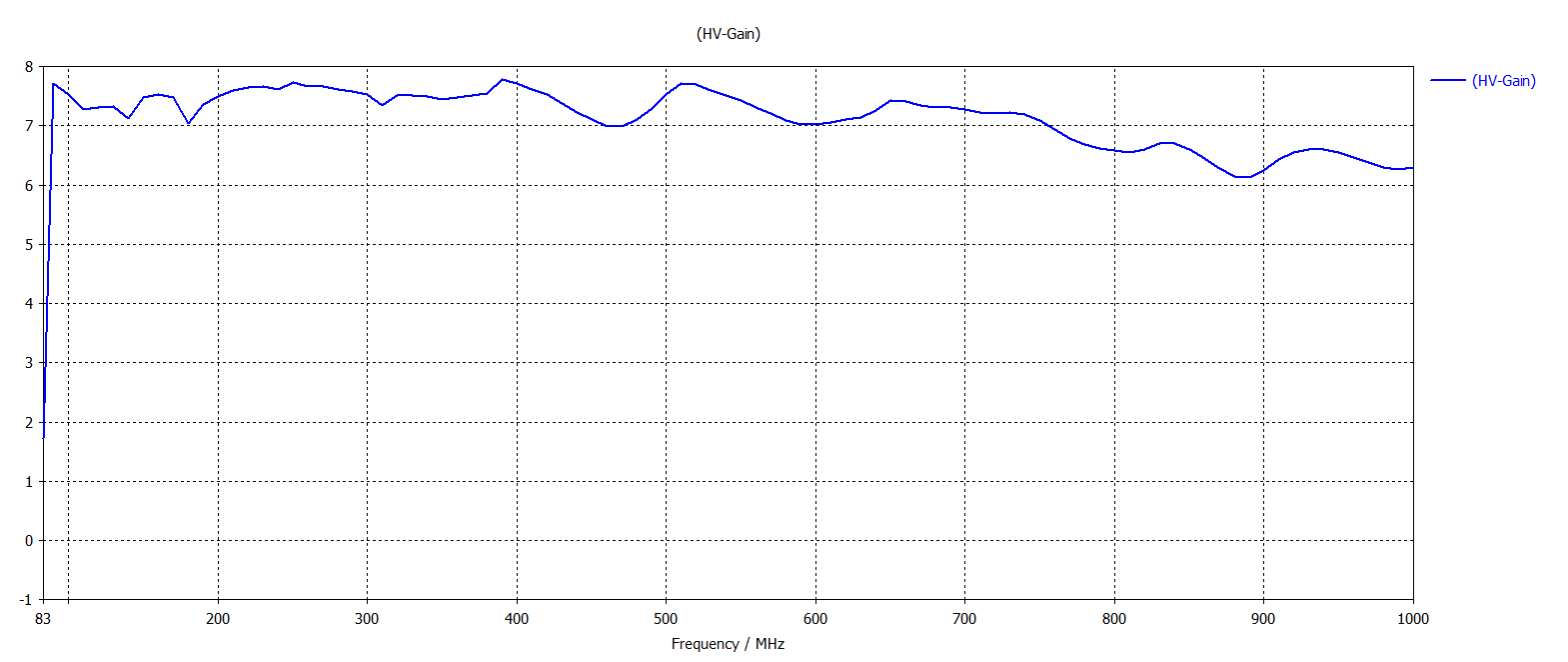

| Gain | 7 dBi |
| Polarization Angle | H: 110 degrees / V: 56 degrees |
| Max Power | 300 W |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
Wideband Coverage
Delivers continuous frequency operation from 88MHz to 1GHz with stable 7 dBi directional gain.
High Power Handling
Engineered to support up to 300W maximum power capacity for demanding high-power communication systems.
Weatherproof Ruggedness
Features IP65 waterproof rating, 95% humidity tolerance, and wide operating temperature from -30 to 120 degrees.
Standardized Interface
Equipped with a secure N-Female connector and heavy-duty structural design for reliable outdoor deployment.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
