Rugged Antenna Deployment Systems (MT) | FT-RF
- Select
PROFESSIONAL COMMUNICATION SYSTEMS

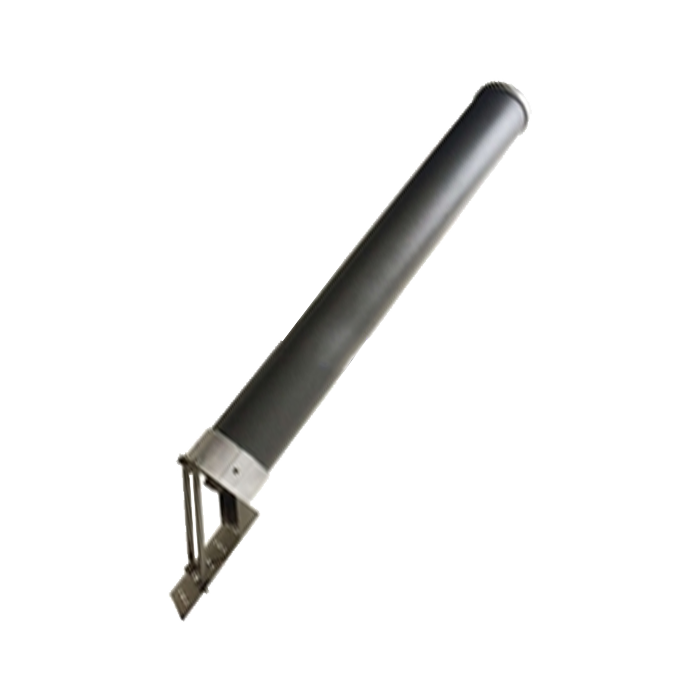

Rugged Base Station Antennas (MT)
Our Rugged Base Station Antennas (MT Series) provide the backbone for operation-critical communication networks. Engineered for unwavering reliability, these systems bridge the gap between field-deployed units and command centers, ensuring seamless wideband connectivity in demanding operational environments.
*Custom mounting hardware, frequency band optimization (VHF, UHF, Microwave), and industrial color finishes (Forest Green, Desert Tan, Stealth Black) available upon request. Made in Taiwan.
🛡️ Rugged Versatility & Base Station Performance
Rapid Field Deployment
Rugged antennas optimized for quick assembly and disassembly by field personnel or mobile command units.
High-Capacity Base Stations
Engineered to handle high thermal loads for continuous-duty command center and base station operations.
Omni & Directional Precision
Versatile radiation patterns available to suit both local area professional links and long-range point-to-point backhaul.
Ruggedized Mechanical Build
Features specialized coatings and high-grade materials to withstand extreme vibration, high wind loads, and thermal stress.
Key Applications:
| Key Parameter | Technical Specification |
|---|---|
| Frequency Agility | Wideband Support Covering VHF, UHF, and Microwave Spectrums |
| Pattern Coverage | Omnidirectional & High-Gain Directional Configurations |
| Thermal Resilience | High-Efficiency Continuous Power Thermal Rating |
| Deployment Capability | Rapid Assembly & Disassembly Field Architecture |
| Connector Interface | N-Female Standard Precision RF Connector |
| Environmental Grade | Extreme Vibration, Wind Load & All-Weather Grade |
VHF / UHF / Microwave High Thermal Load Handling Omni & Directional Patterns Rapid Assembly / Disassembly Vibration & Wind Resistant Operation-Critical Backbone
🛠️ Customization & Engineering Services
We provide custom electrical tuning and mechanical mounting customization for fixed base station installations:
- Custom Frequency Tuning: Targeted band optimization for public safety, utility, or telecom ISP backhaul.
- Custom Tower Brackets: Heavy-duty mounting hardware for mast, pole, or wall deployments.
- Industrial Coating Finishes: Anti-reflection finishes in Forest Green, Desert Tan, or Stealth Black.
- Traceable Calibration: Individual VSWR, Gain & Radiation Pattern Test Reports.
Direct Technical Support: info-tw@ft168.com.tw
📐 Recommended Base Station Accessories
Enhance your base station installation with compatible heavy-duty coaxial assemblies and tower mounts:
Made in Taiwan
| Frequency Range: | 700 MHz - 3000 MHz |
| Beam-width: | Horz. 360° / Vert. 68° |
| Connector: | N-Female |
| Dimensions: | 300 x 520 mm |
| Weight: | 0.8 kg |
Made in Taiwan
| Model Number: | MT-30120M03A-NF |
| Frequency Range: | 30 MHz - 120 MHz |
| Beam-width: | Horz. 360° / Vert. 68° |
| Connector: | N-Female |
| Dimensions: | 3200 x 2600 mm |
| Weight: | 13 kg |
