1.4GHz to 1.6GHz 5dbi Omnidirectional Handheld and Manpack Continuous-High-Power antenna spring design N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
1.4-1.6 GHz 120W High-Power Tactical Manpack Antenna
ME-1416G05AS-NM | Flexible Spring Base | 120W CW | MIL-STD-810G
The ME-1416G05AS-NM is a professional-grade Tactical Manpack & Handheld Antenna specifically engineered for mission-critical operations requiring Continuous-High-Power handling within the 1.4 GHz to 1.6 GHz L-Band spectrum. Delivering a robust 120 Watts (CW) power capacity and a specialized 32-degree vertical pattern, this antenna maximizes transmission range. Fully compliant with MIL-STD-810G and rated at IP67, it ensures unwavering link stability in the most extreme battlefield environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1.4 - 1.6 GHz |
| Gain | 5 dBi |
| Maximum Power | 120 Watts (Continuous Wave) |
| Vertical Beamwidth | 32° (Focused Pattern) |
| Impedance | 50 Ohm |
| Connector | N-Male |
Mechanical & Environmental

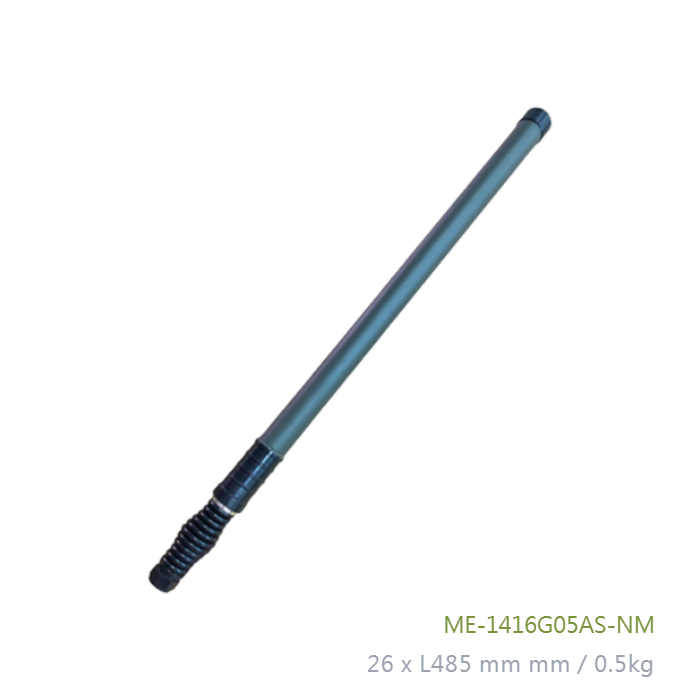

| Dimensions | 26 x L485 mm |
| Weight | 0.5 kg (Lightweight Design) |
| Waterproof Rating | IP67 Rated Sealing |
| Military Standard | MIL-STD-810G Compliant |
| Temperature Range | -40°C to +120°C |
| Testing Standards | 5.0G Vibration / 96H Salt Spray |
Key Tactical Features
Rugged Impact Spring Base
Equipped with a robust mechanical spring that allows the antenna to deflect and absorb intense physical stress, protecting the radio's RF port from damage.
120W High-Power Handling
Specifically engineered to manage the thermal load of 120W continuous transmission, making it the primary choice for mobile signal dominance.
Focused 32-Degree Elevation
The narrow 32° vertical beamwidth concentrates energy toward the horizon, significantly extending the effective communication radius.
Battle-Tested IP67 Sealing
Advanced sealing technology ensures performance during heavy rainfall or amphibious operations, protecting RF components from moisture ingress.
Get a Quote / Customization
Contact us for custom manpack connector adaptations or alternative tactical camouflage color requirements for your mobile system.
