1.4GHz to 1.8GHz 5dbi High Power Vehicular Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

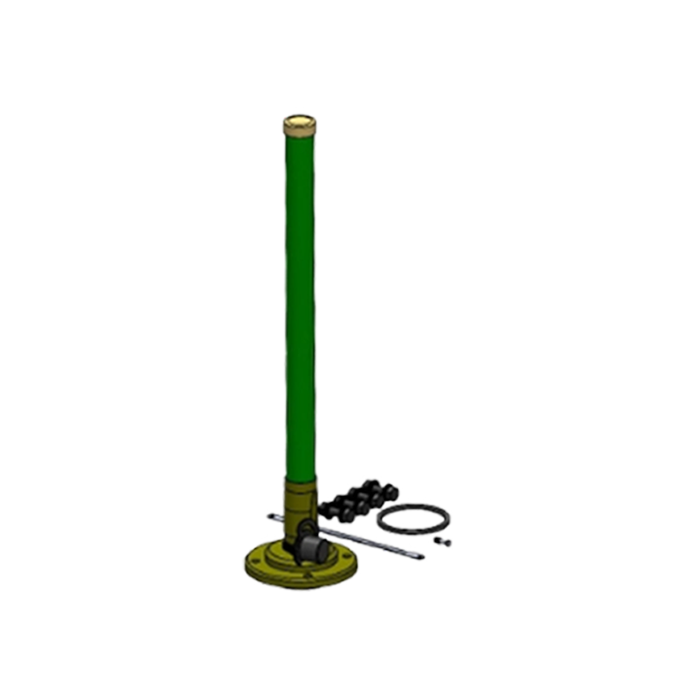

1.4-1.8 GHz 200W High-Gain Tactical Vehicle Antenna
Model: MJ-1418G05T3-NF | Signal Management | 200W CW | MIL-Standards
The MJ-1418G05T3-NF is a high-performance Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management systems within the 1400 MHz to 1800 MHz spectrum. Delivering a robust 200 Watts (CW) power capacity and a concentrated 5 dBi gain, this radiator maximizes transmission efficiency for armored mobile assets. Featuring a precision 28-degree vertical beamwidth and a heavy-duty 4-bolt mounting base, it ensures superior stability in hostile battlefield environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1400 MHz - 1800 MHz |
| Gain | 5 dBi (High Efficiency) |
| Maximum Power | 200 Watts (Continuous Wave) |
| Vertical Beamwidth | 28° (Ultra-Narrow Radiation) |
| V.S.W.R | > 2.5 : 1 (Typical Across Band) |
| Connector | N-Female |
Mechanical & Environmental Specs

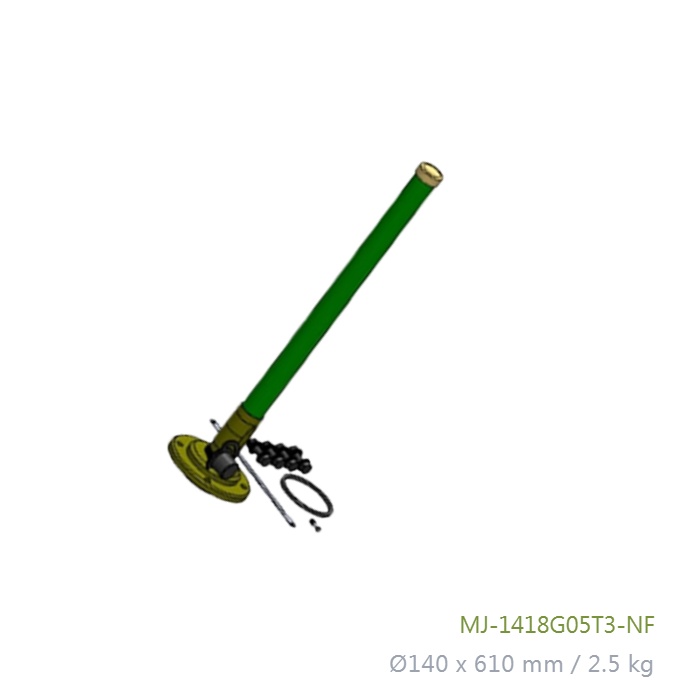

| Dimensions (WxL) | 140 x 610 mm |
| Antenna Weight | 2.5 kg |
| Installation Footprint | 114.3mm | M10 x 4 Bolts |
| Military Standard | MIL-Standards Compliant |
| Operating Temp | -40°C to +120°C |
| Safety Compliance | CE, FCC, RoHS, WEEE |
Key Tactical Features
High Power 200W CW Handling
Designed to handle significant thermal loads for 200W continuous transmission, ideal for mobile Signal Security and tactical data management.
Extreme 28-Degree Vertical Beam
Concentrates radiated energy precisely toward the horizon with an ultra-narrow 28° beam, maximizing effective communication radius for terrestrial links.
Heavy-Duty 4-Bolt Base
The 114.3mm standardized mounting pattern ensures the antenna remains structurally sound on vehicle platforms during high-vibration travel.
Rugged All-Weather Build
Constructed with reinforced tactical materials to survive extreme temperatures, mechanical shocks, and corrosive environmental conditions globally.
Get a Quote / Customization
Contact us for alternative mounting options or specific tactical camouflage color requirements for your mobile command platforms.
