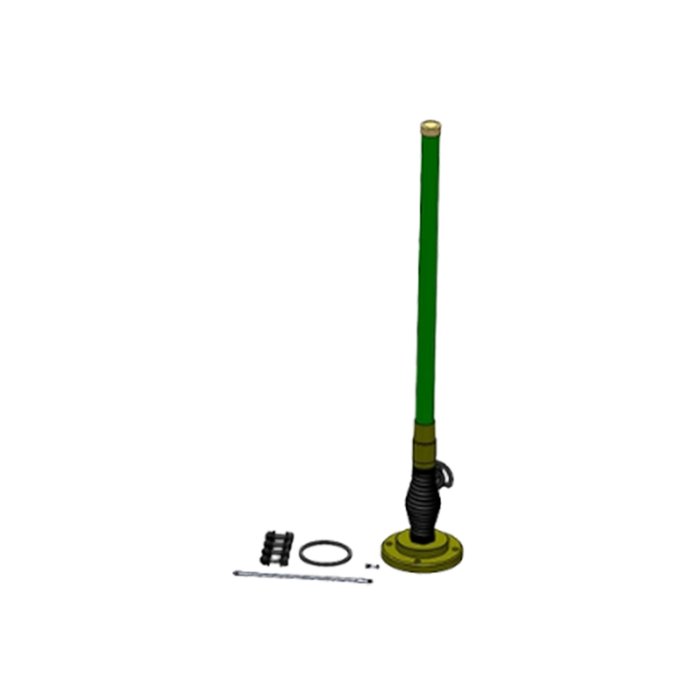

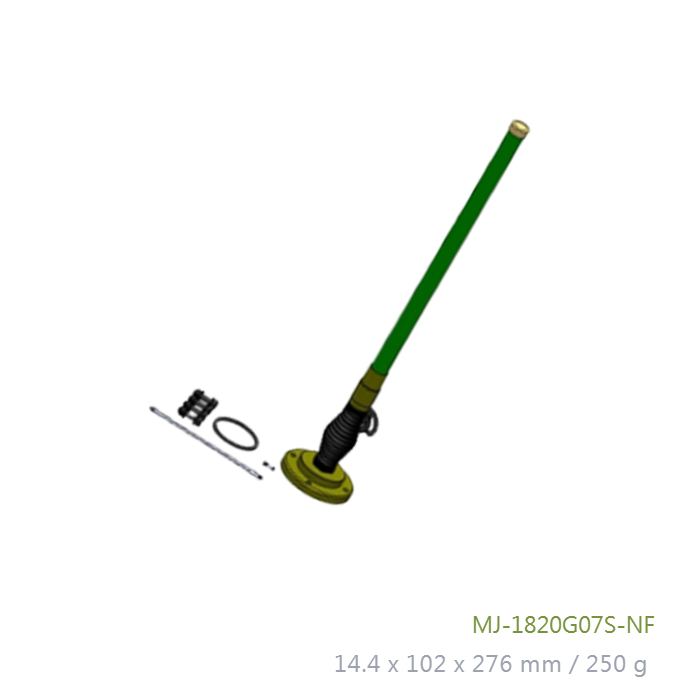

1.8GHz to 2.0GHz 6.5dbi Vehicular High Power Antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
WR-90 Sectoral Horn Antenna (15 dBi)
8.2 - 12.4 GHz (X-Band) | Fan-Beam Pattern | UBR UG-39/U Flange
The WR-90 Sectoral Horn Antenna is a specialized high-gain antenna operating in the X-Band frequency range of 8.2 GHz to 12.4 GHz. Unlike standard pyramidal horns, this sectoral horn features a unique aperture design that produces a distinct Fan-Beam Radiation Pattern. It offers a highly focused 16° beam in the H-plane while maintaining a wide 110° coverage in the E-plane, making it ideal for radar systems and wide-area surveillance.
Technical Specifications
Electrical Specifications
| Frequency Range | 8.2 GHz to 12.4 GHz (X-Band) |
| Gain | 15 dBi |
| Maximum Power | 500 Watts (CW) |
| V.S.W.R | ≤ 1.3 : 1 |
| H-Plane Beamwidth | 16° (Narrow / Focused) |
| E-Plane Beamwidth | 110° (Wide / Fan-Shaped) |
| Waveguide Size | WR-90 |
| Flange Type | UBR UG-39/U (Square Cover) |
Mechanical & Environmental
| Dimensions | 14.4 x 102 x 276 mm |
| Net Weight | 250 g |
| Material | High-Grade Aluminum |
| Finish | Conductive Oxidation / Painted (Custom) |
| Adapter Type | Direct Waveguide (No Adapter) |
Key Professional Features
Fan-Beam Pattern
Creates a "Sectoral" beam (16° x 110°), perfect for radar applications requiring wide vertical coverage and narrow horizontal resolution for Signal Integrity.
UG-39/U Flange Interface
Standard square flange interface allows for direct integration with WR-90 waveguide systems without additional losses, ensuring professional Signal Management.
500W Power Handling
Robust aluminum construction enables handling of up to 500W continuous wave power, suitable for high-energy transmission and Electronic Shielding testing.
Lightweight Agility
Weighing only 250g, this antenna is easy to mount on moving platforms, scanners, or lightweight tripod setups for mission-critical Tactical Use.
Get a Quote / Customization
Contact us for waveguide-to-coax adapters, custom radomes, or specific mounting designs for your X-Band system.
