1.8GHz to 2.0GHz 7dbi Signal Management Antenna For Vehicles N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

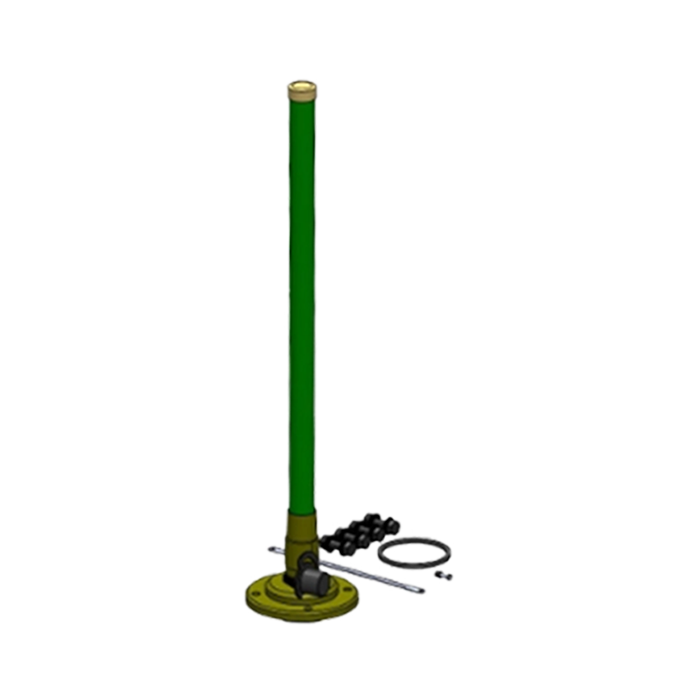

1.8-2.0 GHz 200W High-Gain Tactical Vehicle Antenna
Model: MJ-1820G07T3-NF | Signal Management | 7dBi Peak Gain | MIL-Standards
The MJ-1820G07T3-NF is a high-performance Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management systems within the 1800 MHz to 2000 MHz spectrum. Delivering a robust 200 Watts (CW) power capacity and a concentrated 7 dBi high gain, this radiator maximizes transmission range for armored platforms. Featuring an ultra-narrow 18-degree vertical beamwidth and a heavy-duty 4-bolt mounting base, it ensures superior link dominance in hostile environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1800 MHz - 2000 MHz |
| Gain | 7 dBi (High-Efficiency Collinear) |
| Maximum Power | 200 Watts (Continuous Wave) |
| Vertical Beamwidth | 18° (Ultra-Narrow Concentrated Beam) |
| V.S.W.R | > 2.5 : 1 (Typical Across Band) |
| Connector | N-Female |
Mechanical & Environmental Specs

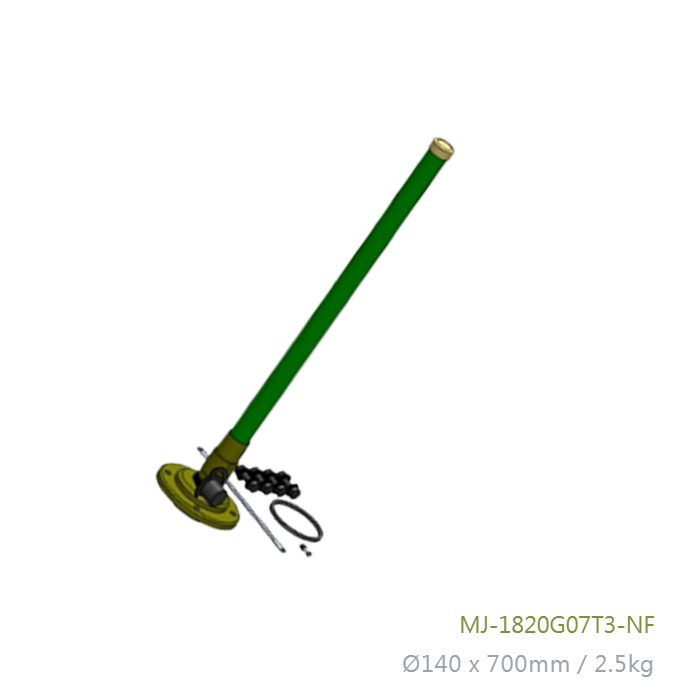

| Dimensions (WxL) | 140 x 700 mm |
| Antenna Weight | 2.5 kg |
| Installation Footprint | 114.3mm | M10 x 4 Bolts |
| Military Standard | MIL-Standards Compliant |
| Operating Temp | -40°C to +120°C |
| Compliance | CE, FCC, RoHS, WEEE |
Key Tactical Features
High Power 200W CW Handling
Designed to handle significant thermal loads for 200W continuous transmission, ideal for mobile Signal Management and high-power signal dominance.
Industry-Leading 7dBi Gain
Concentrates radiated energy precisely toward the horizon with an ultra-narrow 18° vertical beam, maximizing effective range for tactical links.
Heavy-Duty 4-Bolt Base
The 114.3mm standardized mounting pattern ensures the antenna remains structurally sound on vehicle platforms during high-vibration travel.
Rugged All-Weather Build
Engineered with reinforced tactical materials to survive extreme temperatures, mechanical shocks, and corrosive conditions globally.
Get a Quote / Customization
Contact us for alternative mounting patterns or specialized camouflage color requirements for your mobile command platforms.
