1000MHz to 1800MHz 3dbi Vehicle Omnidirectional Continuous-High-Power GPS antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

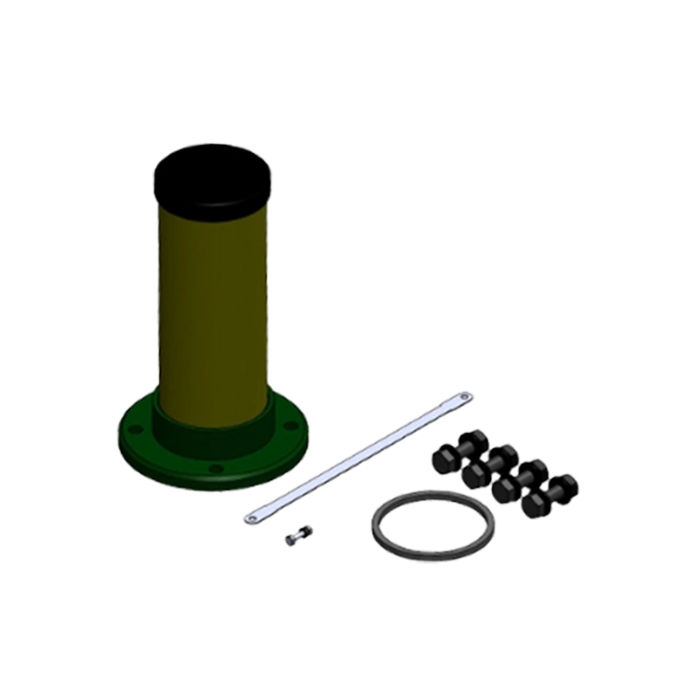

1000-1800 MHz 300W High-Power Tactical Vehicle Antenna
Model: MJ-1314G03-NF | 300W CW | Ultra-Compact 246mm | MIL-STD-810G
The MJ-1314G03-NF is a premium, mission-critical Tactical Vehicle Antenna specifically engineered for Signal Management and high-intensity L-Band operations. Spanning the 1.0 GHz to 1.8 GHz spectrum with an optimized center frequency, this antenna delivers an extraordinary 300 Watts (CW) power capacity. Standing only 246mm tall, it provides a low visual signature while maintaining superior link robustness. Fully compliant with MIL-STD-810G and rated at IP67, it ensures unwavering performance on armored platforms.
Technical Specifications
Electrical Performance
| Frequency Range | 1000 MHz - 1800 MHz (L-Band) |
| Center Frequency | 1300 MHz - 1400 MHz (Optimized) |
| Gain | 3 dBi |
| Maximum Power | 300 Watts (Continuous Wave) |
| Vertical Beamwidth | 68° (-3dB Elevation) |
| V.S.W.R | ≤ 2.0 : 1 (Typical Across Band) |
| Connector | N-Female |
Mechanical & Environmental Specs

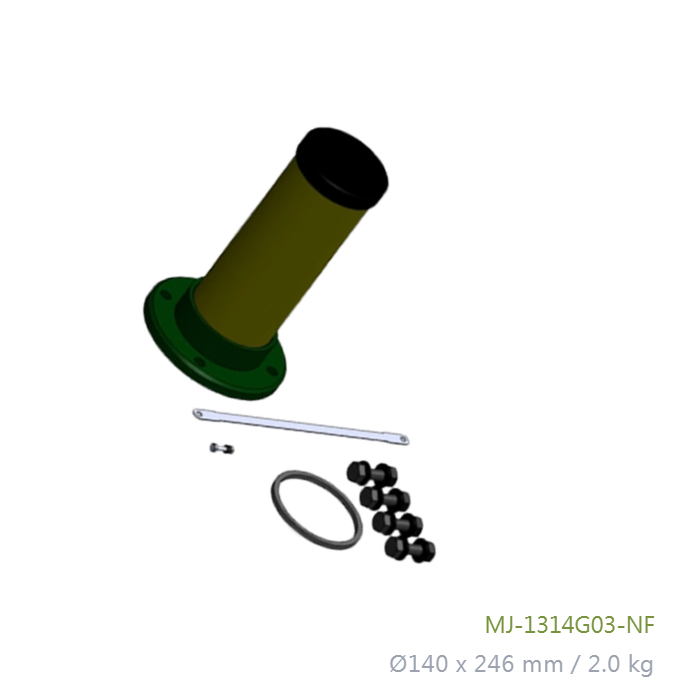

| Dimensions (WxH) | 140 x 246 mm (Ultra-Low Profile) |
| Antenna Weight | 2.0 kg |
| Waterproof Rating | IP67 (Immersion Resistant) |
| Military Standard | MIL-STD-810G Compliant |
| Temperature Range | -40°C to +120°C |
| Testing Standards | 5.0G Vibration / 96H Salt Spray |
Key Tactical Features
Extreme 300W Power Handling
Designed to withstand matched thermal stress for 300W continuous transmission, making it the primary radiator for mobile Signal Defense systems.
Ultra-Low Profile Design
At only 246mm height, this antenna significantly reduces mechanical strike risk and visual detectability on specialized tactical vehicles.
Superior Wide-Angle Elevation
The 68-degree vertical beamwidth ensures link stability even when vehicles are navigating steep inclines or extreme banking maneuvers.
Battle-Ready Reliability
Constructed with reinforced tactical materials to survive high-speed vibration, corrosive salt spray, and extreme global temperatures.
Get a Quote / Customization
Contact us for custom mounting flange patterns or specific tactical camouflage requirements for your mobile command platforms.
