1200MHz to 1400MHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

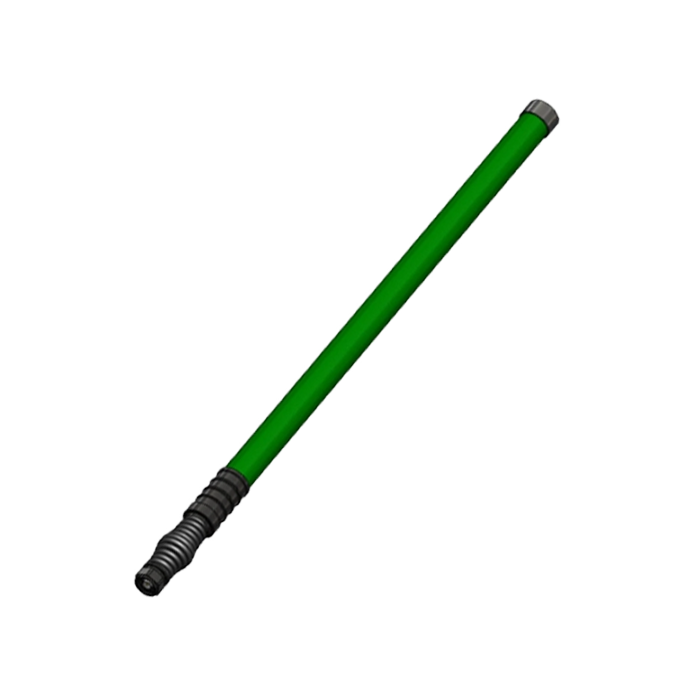

1.2 - 1.4 GHz High-End Tactical Manpack Antenna
Model: ME-1214G05AS-NM | 120W CW | MIL-STD-810G
The ME-1214G05AS-NM is a professional-grade Tactical Manpack Antenna specifically engineered for the 1.2 GHz to 1.4 GHz L-Band spectrum. Delivering a robust power capacity of 120 Watts (CW), this antenna is optimized for mission-critical radio sets and field-deployable command systems. Built with an integrated spring base and rated at IP67, it ensures unwavering link stability under the most extreme battlefield maneuvers.
Technical Specifications
Electrical Performance
| Frequency Range | 1.2 GHz - 1.4 GHz (L-Band) |
| Gain | 2 dBi |
| Maximum Power | 120 Watts (Continuous Wave) |
| Vertical Beamwidth | 58° (-3dB Radiation Pattern) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| V.S.W.R | ≤ 2.5 : 1 (Typical) |
Mechanical & Environmental

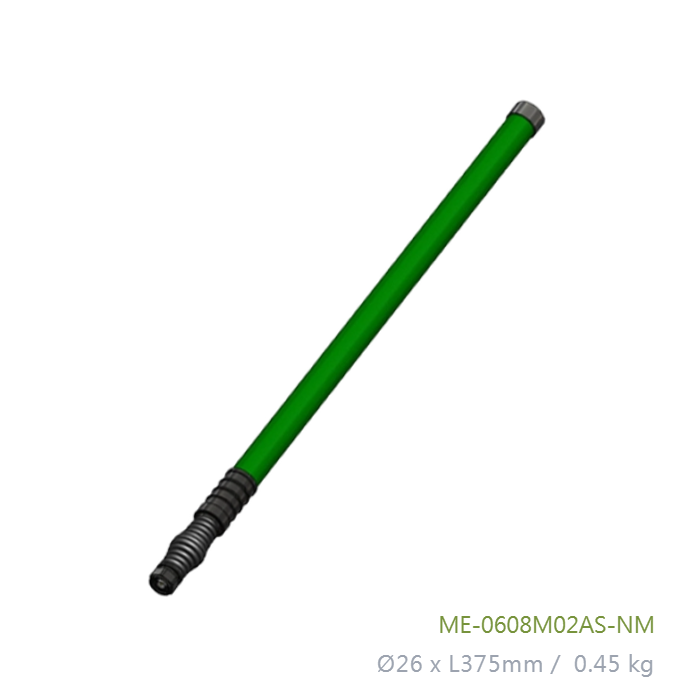

| Dimensions | Ø26 x L375 mm |
| Antenna Weight | 0.45 kg |
| Compliance | MIL-STD-810G / IP67 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
Tactical L-Band Efficiency
Optimized for the 1.2-1.4 GHz range, providing a perfect balance between signal penetration and stable long-range data link performance in complex environments.
Impact-Absorbing Spring Base
The integrated flexible spring base deflects mechanical stress upon impact, protecting the manpack radio's RF port and the antenna mast from torque-induced damage.
120W High Power Support
Specifically engineered to handle substantial heat loads of 120W continuous transmission, ensuring reliable comms and stable Signal Security during prolonged operations.
All-Terrain Reliability
Constructed with military-grade tactical fiberglass and metals to survive extreme vibration and salt spray (96HR) in the most corrosive battlefield environments globally.
Get a Quote / Customization
Contact us for custom length modifications or alternative connector types for handheld/portable systems.
