1320 MHz to 1700 MHz 3dbi Vehicle Omnidirectional Signal Management GPS antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

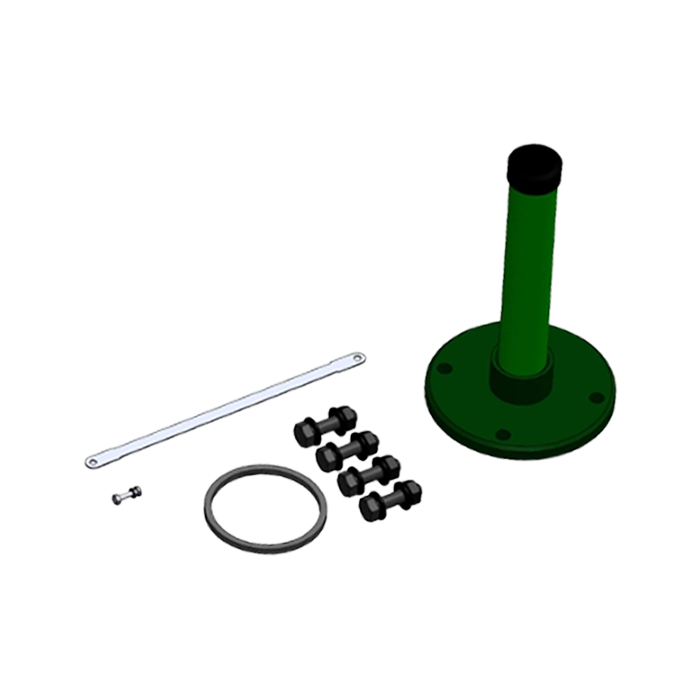

1320-1700 MHz 300W High-Power Tactical Vehicle Antenna
Model: MJ-1516G03-NF | Optimized 1.5-1.6GHz | 300W CW | MIL-STD-810G
The MJ-1516G03-NF is a state-of-the-art Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management and L-Band systems. Optimizing for the 1550 MHz to 1620 MHz range, it covers GPS L1/GNSS and tactical frequencies with a robust 300 Watts (CW) power capacity. Its ultra-lightweight and low-profile design ensures minimal air resistance. Fully compliant with MIL-STD-810G and rated at IP67, it ensures positional accuracy and link dominance in the most hostile environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1320 MHz - 1700 MHz |
| Center Frequency | 1550 MHz - 1620 MHz (Optimized) |
| Gain | 3 dBi |
| Maximum Power | 300 Watts (Continuous Wave) |
| Vertical Beamwidth | 68° (-3dB Elevation) |
| V.S.W.R | > 2.0 : 1 |
| Connector | N-Female |
Mechanical & Environmental Specs

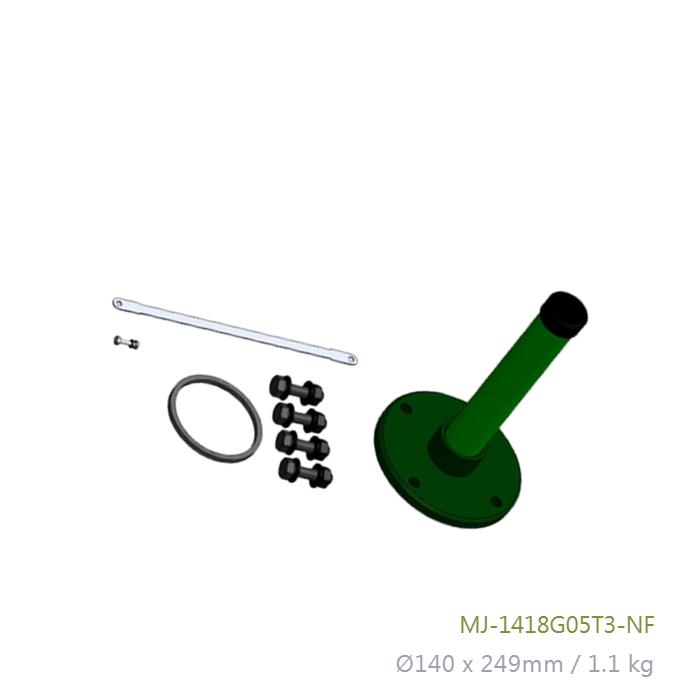

| Dimensions (WxH) | 140 x 249 mm (Low Profile) |
| Antenna Weight | 1.1 kg (Ultra-Lightweight) |
| Waterproof Rating | IP67 (Immersion Resistant) |
| Military Standard | MIL-STD-810G Compliant |
| Temperature Range | -40°C to +120°C |
| Testing Standards | 5.0G Vibration / 96H Salt Spray |
Key Tactical Features
Extreme 300W CW Handling
Designed to withstand unmatched thermal stress for 300W continuous transmission, making it the primary radiator for mobile Signal Defense and GPS dominance.
Ultra-Lightweight Tactical Build
Weighing only 1.1kg, this antenna reduces the load on vehicle mounting systems while providing high-power performance in a 249mm compact frame.
Superior Wide-Angle Coverage
The 68-degree vertical beamwidth ensures link stability even when vehicles are navigating extreme terrain or experiencing high vibration.
IP67 All-Weather Reliability
Advanced sealing technology ensures structural integrity during heavy rainfall or amphibious operations, protecting the internal RF components.
Get a Quote / Customization
Contact us for custom mounting flange patterns or specific GNSS L1 frequency filtering requirements for your mobile platforms.
