1600-2300 MHz 3dBi High-Power Vehicular Omni 4G Antenna
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

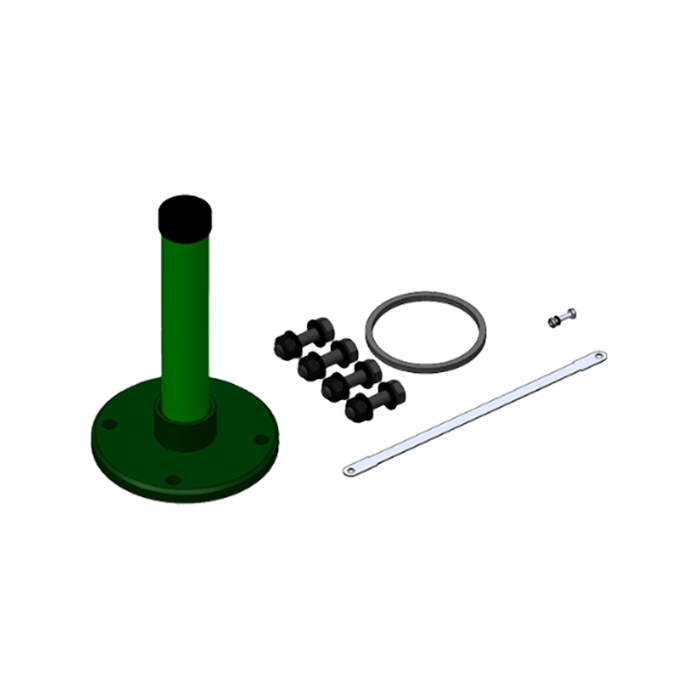

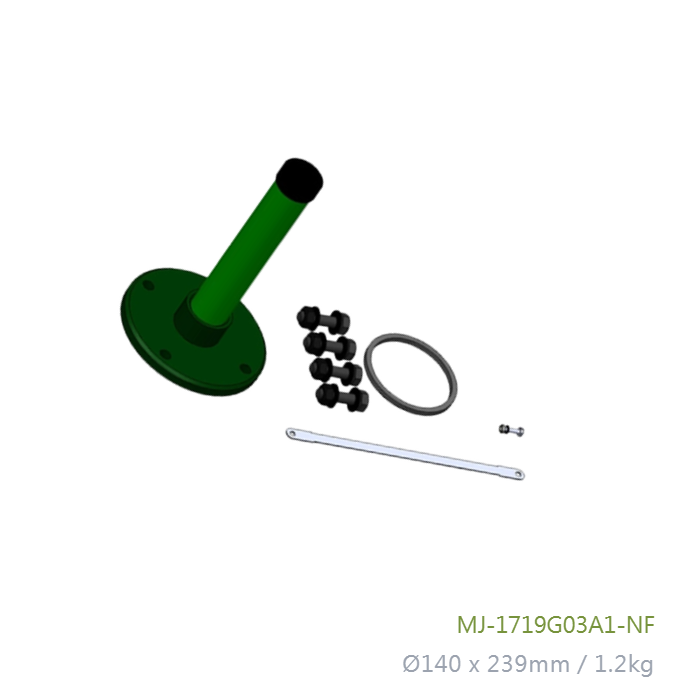

MJ-1719G03A1-NF Vehicle Omnidirectional Antenna
1600MHz to 2300MHz 3dBi High-Power Antenna | 200W CW N-Female
The MJ-1719G03A1-NF is a heavy-duty vehicle omnidirectional antenna engineered for mobile platforms operating across the 1600MHz to 2300MHz spectrum (center frequency 1700-1900MHz). Delivering a stable 3dBi gain and supporting continuous wave powers up to 200W, it features an IP67 waterproof structure and rugged base mount for exceptional reliability in challenging environments.
Hardware Performance
| Dimensions | Ø140 x H239 mm |
| Antenna Element Height | 224.00 mm (Total Height: 239.00 ±20.00 mm) |
| Radome / Cap Diameter | Ø36.00 mm / Ø40.00 mm |
| Weight | 1.2 kg |
| Connector | N-Female |
| Base Mounting Interface | 4-Hole Flange (Ø114.30 mm PCD, M10*4, Ø10.70 mm) |
| Protection Rating | IP67 Waterproof |
| Operating Temp | -40°C to +120°C |
| Environmental Tests | Vibration 5.0G / Salt Spray 96HR / Humidity 95% |
Software & Control
| Frequency Range | 1600 MHz to 2300 MHz |
| Center Frequency | 1700 MHz to 1900 MHz |
| Gain | 3 dBi |
| Max Power (CW) | 200 W |
| -3dB Beamwidth | Horizontal: 360° / Vertical: 68° |
| Color / Polarization | Black and Green / Linear Vertical |
Key Design & Feature Highlights
High Precision Control
Provides complete 360° horizontal coverage with a broad 68° vertical beamwidth for consistent signal links on moving platforms.
Rugged Reliability
Fully IP67 sealed, resistant to 5.0G vibrations and 96-hour salt spray, engineered to endure harsh outdoor deployment.
Versatile Integration
Features a robust 4-bolt base mounting pattern (M10*4 on Ø114.30mm) with an N-Female connector for secure vehicular installation.
High Load Capacity
Capable of handling continuous wave RF power levels up to 200W with operational survivability from -40°C to +120°C.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
