1600 MHz to 2700 MHz 3dbi Vehicle Omni Directional Continuous-High-Power Antenna 3G/4G N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

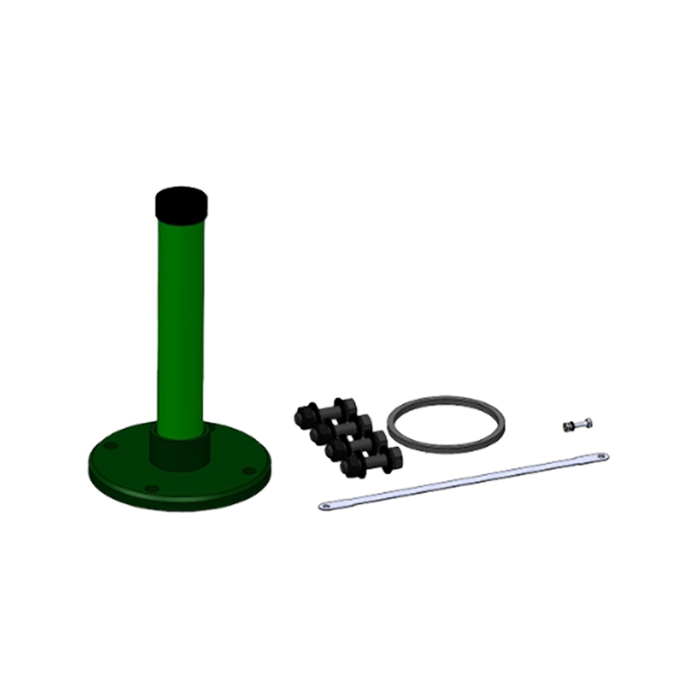

1600-2700 MHz 250W Ultra-Wideband Tactical Vehicle Antenna
Model: MJ-1922G03A1-NF | Signal Management | 250W CW | MIL-STD-810G
The MJ-1922G03A1-NF is a high-performance Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management and broadband communications. Spanning the 1600 MHz to 2700 MHz spectrum with an optimized center frequency, this antenna delivers a robust 250 Watts (CW) power capacity. Its ultra-low profile design ensuring minimal Aerodynamic drag and reduced mechanical strike risk on mobile platforms. Fully compliant with MIL-STD-810G and rated at IP67, it guarantees reliability in the most hostile battlefield environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1600 MHz - 2700 MHz |
| Center Frequency | 1900 MHz - 2200 MHz (Optimized) |
| Gain | 3 dBi |
| Maximum Power | 250 Watts (Continuous Wave) |
| Vertical Beamwidth | 68° (-3dB) |
| V.S.W.R | ≤ 2.0 : 1 (Typical Across Band) |
| Connector | N-Female |
Mechanical & Environmental Specs

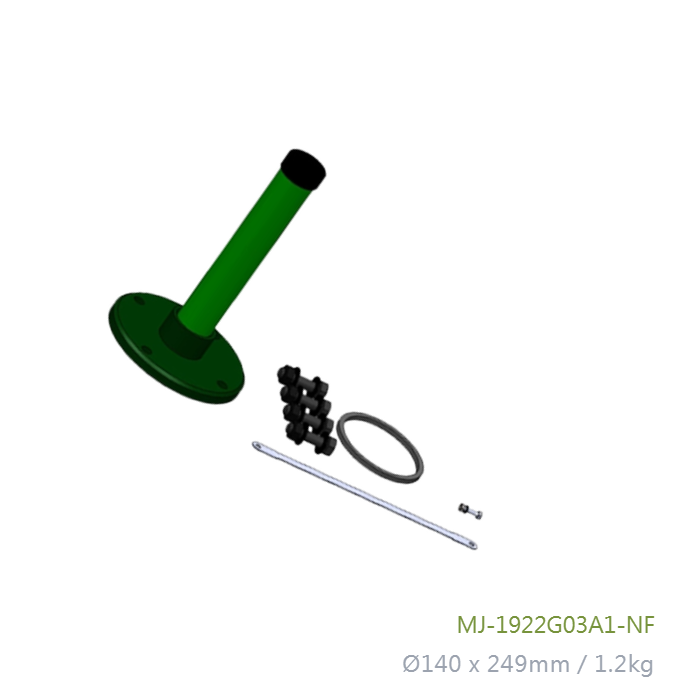

| Dimensions (WxH) | 140 x 249 mm (Tactical Low Profile) |
| Antenna Weight | 1.2 kg |
| Waterproof Rating | IP67 (Immersion Resistant) |
| Military Standard | MIL-STD-810G Compliant |
| Temperature Range | -40°C to +120°C |
| Testing Standards | 5.0G Vibration / 96H Salt Spray |
Key Tactical Features
Extreme 250W Power Handling
Designed to handle industry-leading thermal loads of 250W continuous transmission, making it the primary choice for mobile Signal Management systems.
Low-Profile Tactical Silhouette
At only 249mm height, this antenna significantly reduces mechanical strike risk while maintaining a discreet visual profile on armored platforms.
Broadband 3G/4G/LTE Coverage
Spans the entire 1.6-2.7GHz spectrum, providing a consolidated solution for cellular networks and tactical high-band data links.
Battle-Ready Reliability
Constructed with reinforced tactical materials to survive extreme vibration, corrosive salt spray, and temperatures globally (-40 to +120°C).
Get a Quote / Customization
Contact us for custom mounting flange patterns or specific tactical camouflage color requirements for your command platforms.
