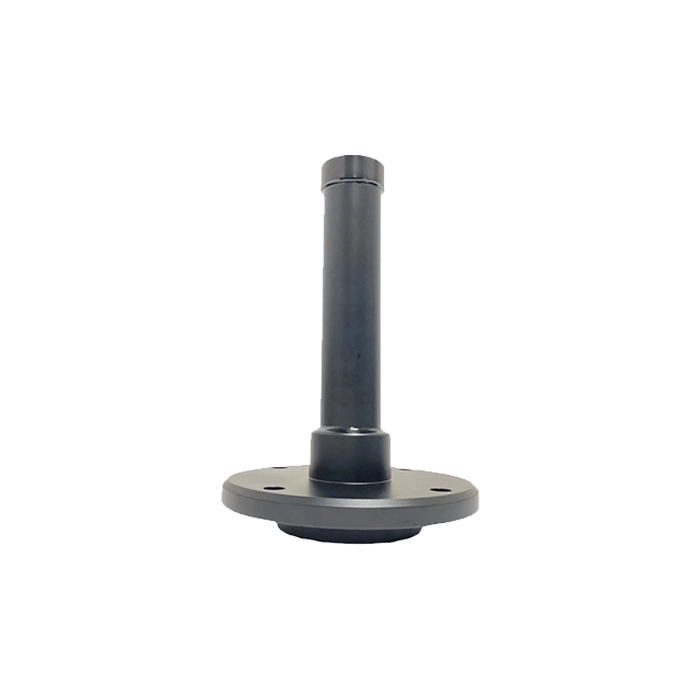

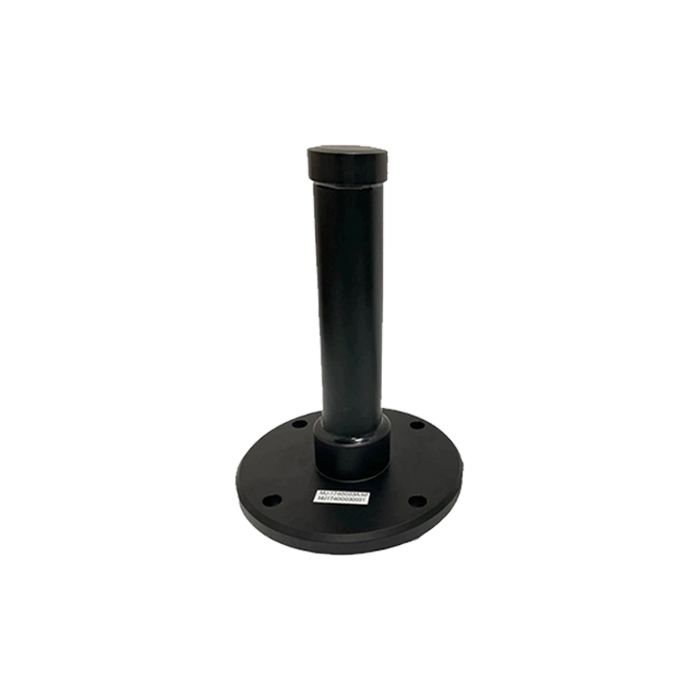

1700 MHz to 4000 MHz 3dbi Vehicle Omnidirectional Signal Management 4G Antenna N-Female (Upgrade version: MJ-1740G03A-NF)
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
1.7-4.0 GHz 200W Wideband Tactical Vehicle Antenna
Model: MJ-1740G03A-NF (Upgrade) | WiFi/4G/5G | 200W CW | MIL-STD-810G
The MJ-1740G03A-NF is an advanced Wideband Tactical Vehicle Antenna engineered for mission-critical operations across the 1700 MHz to 4000 MHz spectrum. This upgraded radiator provides a consolidated solution for WiFi, 4G, and 5G deployments, handling a robust 200 Watts (CW) power capacity. Standing only 209mm tall, it offers an ultra-low profile to minimize mechanical risk and visual signature. Fully weatherized to IP67 and MIL-STD-810G compliant, it ensures link stability for mobile command platforms.
Technical Specifications
Electrical Performance
| Frequency Range | 1700 MHz - 4000 MHz |
| Gain (Peak) | 3 dBi |
| Maximum Power | 200 Watts (Continuous Wave) |
| V.S.W.R | ≤ 2.0 (1690-2810 MHz) | ≤ 3.0 (Full Band) |
| Beamwidth | H: 360° / V: 46° (AVG) |
| Antenna Design | Collinear Dipole Array |
| Connector | N-Female |
Mechanical & Environmental

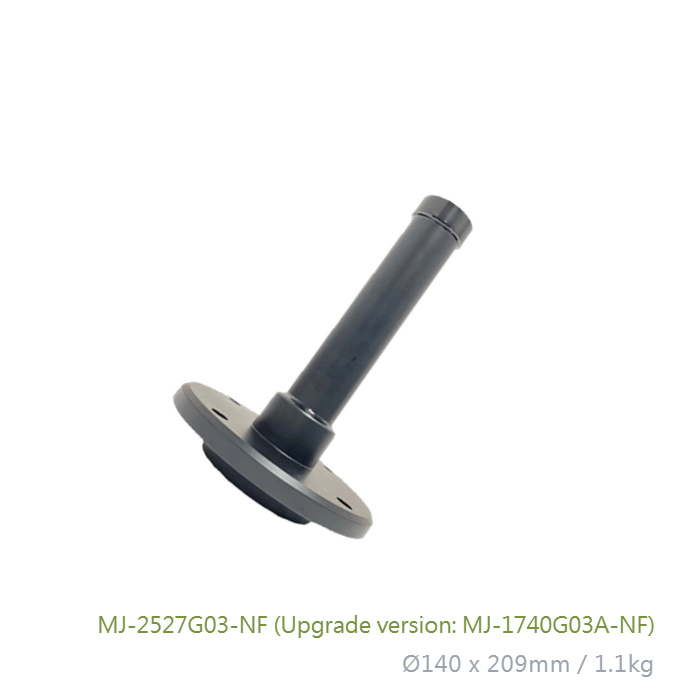

| Dimensions (WxH) | 140 x 209 mm (Ultra-Low Profile) |
| Antenna Weight | 1.1 kg |
| Waterproof Rating | IP67 (Immersion Resistant) |
| Military Standard | MIL-STD-810G Compliant |
| Operating Temperature | -40°C to +120°C |
| Testing Standards | 5.0G Vibration / 96H Salt Spray |
Key Tactical Features
True Wideband Connectivity
Spans the 1.7GHz to 4.0GHz spectrum, enabling seamless support for multiple communication standards (WiFi, 4G, 5G) through a single rugged radiator.
High-Power 200W CW
Designed to withstand intense thermal stress during 200W continuous transmission, ideal for mobile Signal Defense and data dominance.
Ultra-Low Profile Signature
The compact 209mm height significantly reduces the risk of collision with overhead obstacles and lowers the vehicle's detectable visual profile.
Battle-Ready Reliability
MIL-STD-810G compliant structure survives extreme vibrations, high-speed travel shocks, and highly corrosive maritime environments.
Get a Quote / Customization

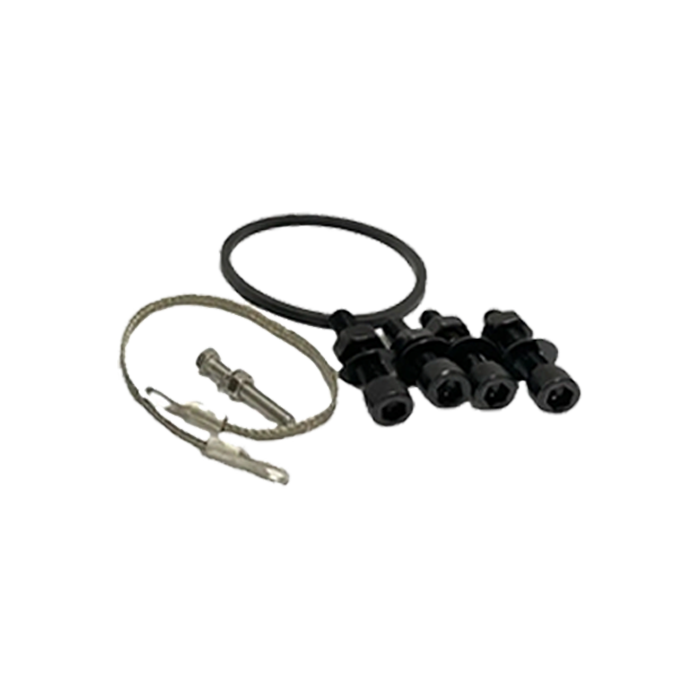

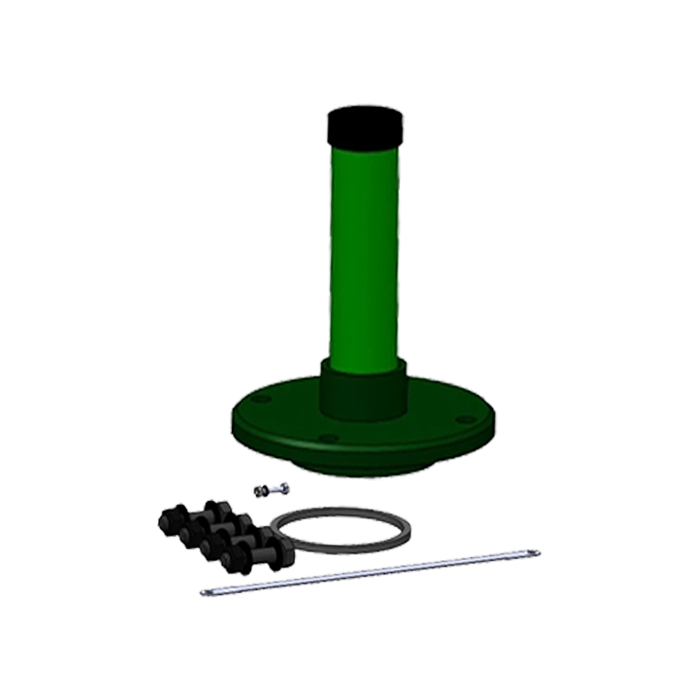

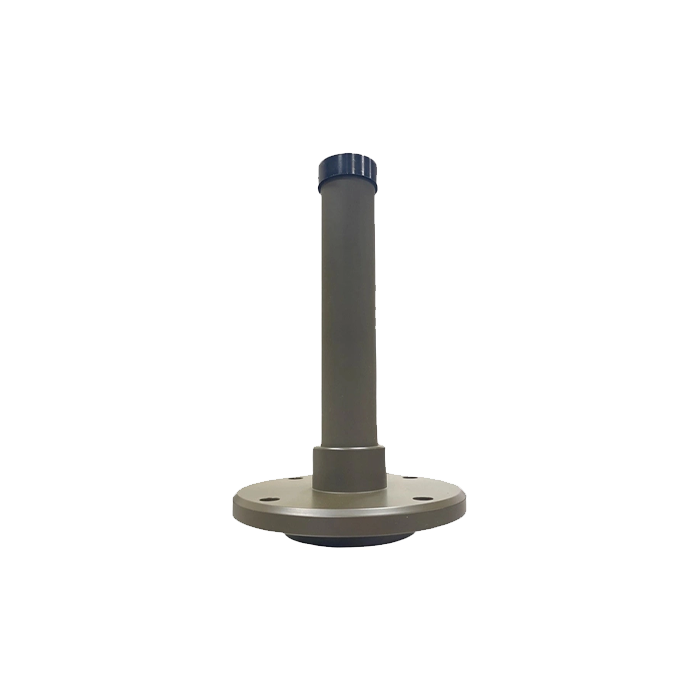

Contact us for custom mounting flange patterns or alternative radome colors for specific camouflage needs on armored vehicles.
