1GHz to 1.4GHz 5dbi Signal Management Antenna For Vehicles N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

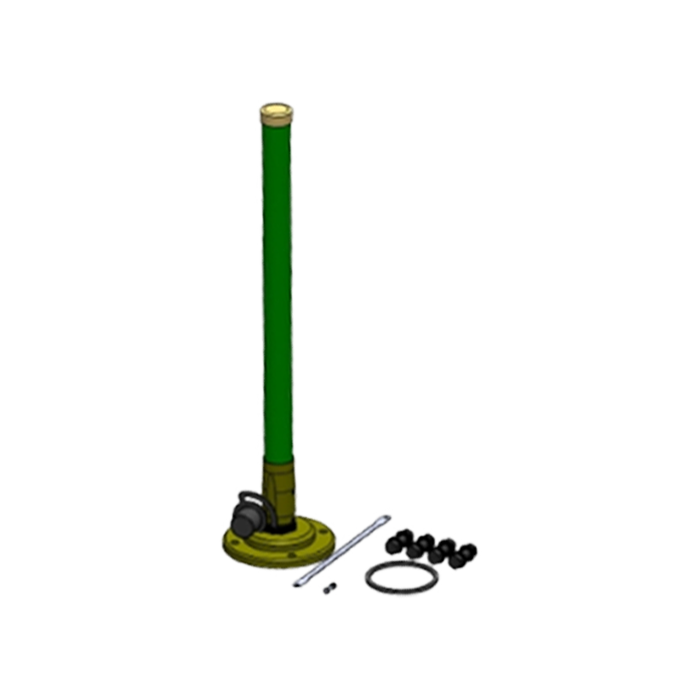

1.0GHz to 1.4GHz 5dBi High-Power Tactical Vehicle Antenna
1000-1400 MHz L-Band | 200W CW Power | MIL-STD Ruggedized
The MJ-0104G05T3-NF is a high-performance Log Periodic Directional Antenna engineered for wide-spectrum VHF dominance. Delivering a stable 7 dBi gain across the 80-300 MHz spectrum, this antenna is optimized for Signal Defense and advanced protective operations. Its robust aluminum construction ensures high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1000 MHz to 1400 MHz |
| Gain | 5 dBi |
| Vertical Beamwidth | 48° |
| VSWR | ≤ 2.5:1 |
| Power Handling | 200 W (Continuous Wave) |
| Nominal Impedance | 50 Ω |
| Polarization | Linear Vertical |
| Connector | N-Female |
| Radiation Pattern | Omni-Directional (Horizontal) |
Mechanical & Environmental Specs

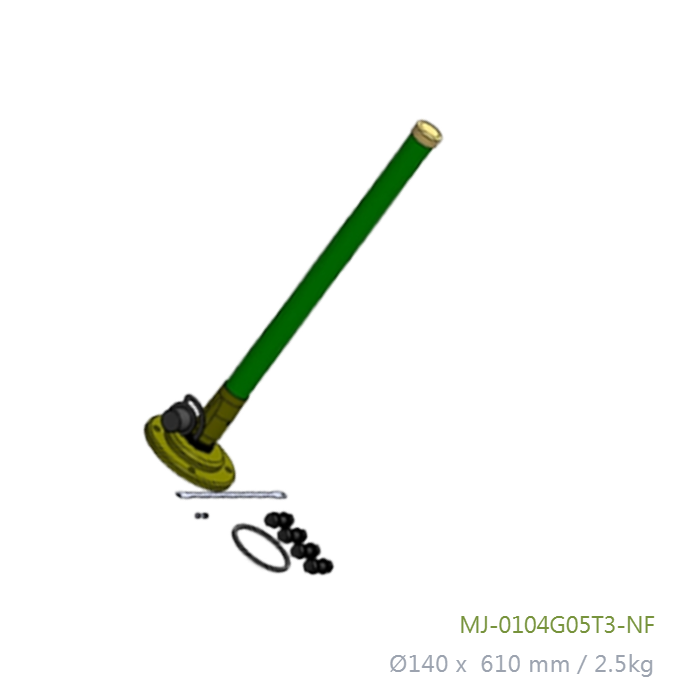

| Dimensions | Ø140 x 610 mm |
| Weight | 2.5 kg |
| Mounting Base | 4-Bolt Pattern (114.3mm) |
| Operating Temp | -40°C to +120°C |
| Compliance | MIL-STD, CE, FCC, RoHS |
| Radome Material | High-Strength Composite |
| Wind Resistance | 200 km/h |
Tactical Features
High Power 200W CW Handling
Designed to handle significant thermal loads for 200W continuous transmission, ideal for mobile Signal Security and tactical data management.
Superior 5dBi High Gain
Features a 48-degree vertical beamwidth that concentrates radiated energy toward the horizon, significantly extending the effective tactical range.
Heavy-Duty 4-Bolt Base
The 114.3mm standardized mounting pattern ensures the antenna remains secure on vehicle rooftops during high-vibration travel and off-road maneuvers.
Rugged All-Weather Build
Engineered with reinforced tactical materials to survive extreme temperatures, mechanical shocks, and corrosive conditions in global theaters of operation.
Get a Quote / Customization
Contact us for alternative mounting options or specific tactical camouflage color requirements for your vehicle platforms.
