2.2GHz to 2.4GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
2.2-2.4 GHz High-End Manpack Antenna (Spring Base)
S-Band Telemetry | 5dBi Gain | 100W Power | IP67 & MIL-STD-810G

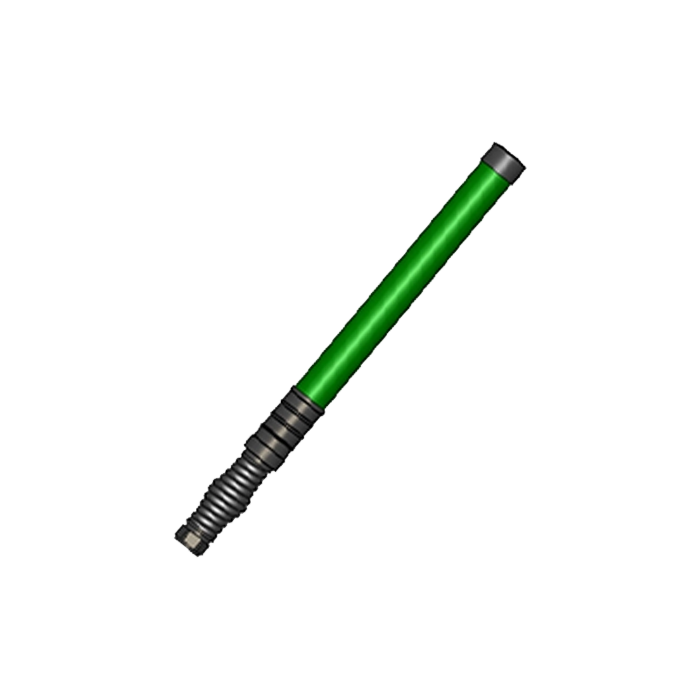

[Image of ME-2224G05AS-NM Manpack Antenna]
The ME-2224G05AS-NM is a high-performance Manpack Antenna designed for the 2.2 GHz to 2.4 GHz S-Band, ideal for telemetry, ground control stations, and specialized tactical communications. A key feature is its wide 52° vertical beamwidth, which provides superior coverage for air-to-ground communication with UAVs. It features a rugged Spring-Loaded Base to absorb shocks and withstand rough handling. With a length of 355.2mm, it handles up to 100 Watts (CW). Engineered for extreme environments, it is IP67 waterproof, compliant with MIL-STD-810G, and operates in temperatures up to +120°C.
Technical Specifications
Electrical Specifications
| Model Number | ME-2224G05AS-NM |
| Frequency Range | 2.2 - 2.4 GHz (S-Band) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 100 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 52° (Wide Vertical Coverage) |
| Connector | N-Male |
Mechanical & Environmental Specifications
| Dimensions | Ø26 x L355.2 mm |
| Weight | 0.43 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
S-Band Telemetry & UAV
Designed for the 2.2-2.4 GHz band with a wide 52° vertical beam, making it perfect for communicating with drones and aircraft.
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, suitable for desert environments or mounting near high-temperature machinery.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
100W High Power
Capable of handling 100W Continuous Wave power, ideal for high-power transmission systems or electronic countermeasure (ECM) roles.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
