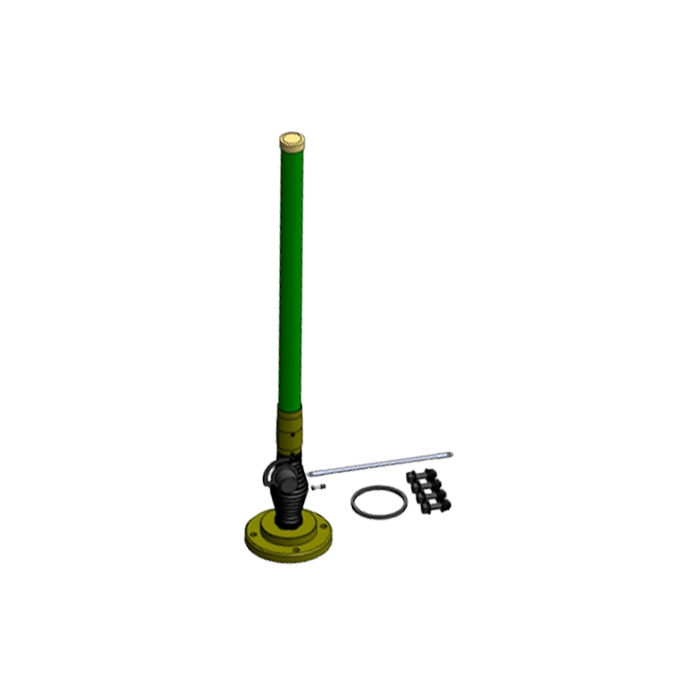

2.2GHz to 2.6GHz 6.5dbi Vehicle Omnidirectional Continuous-High-Power antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
2.2 - 2.6 GHz 6.5dBi High-Power Tactical Vehicle Antenna
Model: MJ-2226G07S-NF | S-Band Continuous-High-Power | MIL-STD-810G
The MJ-2226G07S-NF is a high-end Tactical Vehicle Antenna engineered for professional-grade Continuous-High-Power handling within the 2.2 GHz to 2.6 GHz S-Band spectrum. Featuring an exceptional 6.5 dBi gain and a focused 28-degree vertical beam, this antenna is optimized for long-distance tactical data links and mobile command assets. Fully compliant with MIL-STD-810G and IP65, it ensures mission-critical link stability in the most demanding environments.
Technical Specifications
Electrical Performance
| Frequency Range | 2.2 GHz - 2.6 GHz (S-Band) |
| Gain | 6.5 dBi (High Efficiency) |
| Maximum Power | 120 Watts (Continuous Wave) |
| Vertical Beamwidth | 28° (Narrow Concentrated Beam) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental

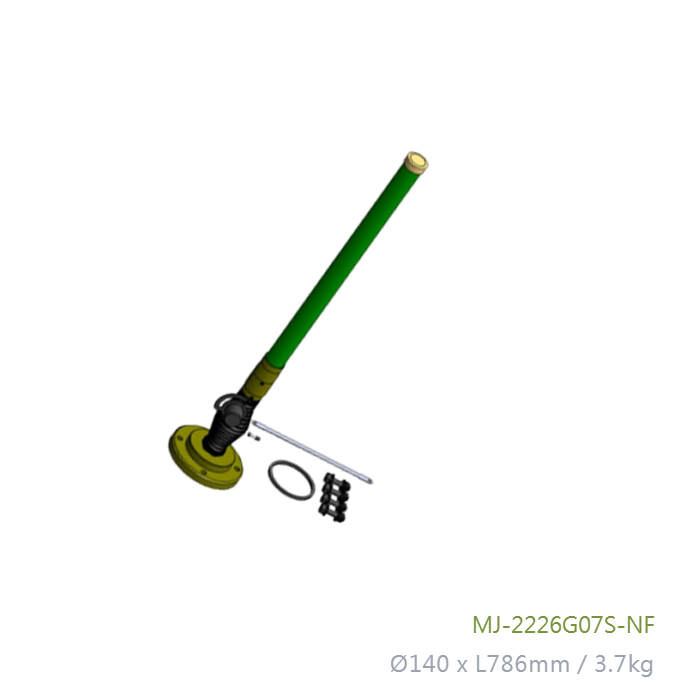

| Dimensions | Ø140 x L786 mm |
| Antenna Weight | 3.7 kg |
| Compliance | MIL-STD-810G / IP65 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
Superior 6.5dBi High Gain
The narrow 28° vertical beam concentrates radiated power toward the horizon, providing an extended operational radius for S-band tactical networks.
Heavy-Duty Buffer Spring
Equipped with a robust mechanical spring base that deflects and absorbs intense impacts, protecting both the antenna mast and the vehicle's RF port during off-road travel.
S-Band CW Power Handling
Specifically engineered to manage the thermal stress of 120W continuous transmission, ensuring reliable high-bandwidth data sessions and stable signal dominance.
MIL-STD-810G Reliability
Constructed with reinforced tactical materials to survive extreme vibration, corrosive salt environments (96HR), and global temperature extremes.
Get a Quote / Customization
Contact us for custom mounting flange adaptations or alternative tactical camouflage color requirements.
