2.2GHz to 2.6GHz 6.5dbi Vehicular High Power Antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
2.2-2.6 GHz High Power Vehicular Antenna with Spring
120W High Power | 6.5 dBi Gain | Heavy-Duty Spring Base | S-Band
Engineered for harsh environments, this 2.2-2.6 GHz High Power Vehicular Antenna is designed to provide reliable S-Band communication and Signal Management. It features a heavy-duty Shock-Absorbing Spring Base that protects the antenna element from physical damage during impacts. With a 3.7kg solid build and 6.5 dBi gain, it handles up to 120W of continuous power, ensuring absolute Signal Integrity for LTE, WiFi, or tactical data links.
Technical Specifications
Electrical Performance
| Frequency Range | 2.2 GHz to 2.6 GHz (S-Band) |
| Gain | 6.5 dBi (High Sensitivity) |
| Maximum Power | 120 Watts (Continuous Wave) |
| Beamwidth | H: 360° / V: 28° |
| V.S.W.R | < 2.5 : 1 |
| Polarization | Vertical |
| Connector | N-Female |
Mechanical & Environmental

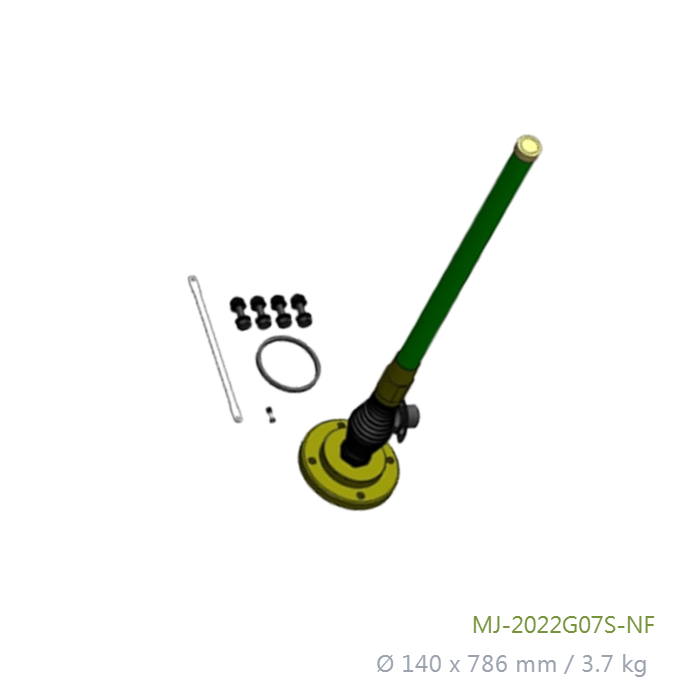

| Dimensions | Ø 140 x 786 mm |
| Net Weight | 3.7 kg (Heavy Duty Construction) |
| Base Type | Spring Loaded Shock Absorber |
| Compliance | MIL-STD-810G, IP65 |
| Temperature Range | -40°C to +120°C |
| Durability | 5G Vibration / 96HR Salt Spray Passed |
Key Tactical Features
2.2-2.6 GHz S-Band Coverage
Optimized for the S-Band spectrum, covering critical frequencies for LTE, Wi-Fi, and professional Signal Management communications.
Rugged Spring Base
Integrated heavy-duty spring mechanism absorbs impact energy, preventing breakage in dense vegetation during intense Tactical Use.
120W Power Handling
Designed to sustain 120W of continuous power, making it suitable for high-power data transmission or Electronic Protection applications.
Extreme 6.5 dBi Range
Delivers superior signal range with a 6.5 dBi omnidirectional pattern, ensuring stable Signal Security over longer distances.
Get a Quote / Customization
Contact us for custom mounting flanges or specific frequency tuning for your armored vehicle platform.
