2.2GHz to 2.6GHz 7dbi Signal Management Antenna For Vehicles N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

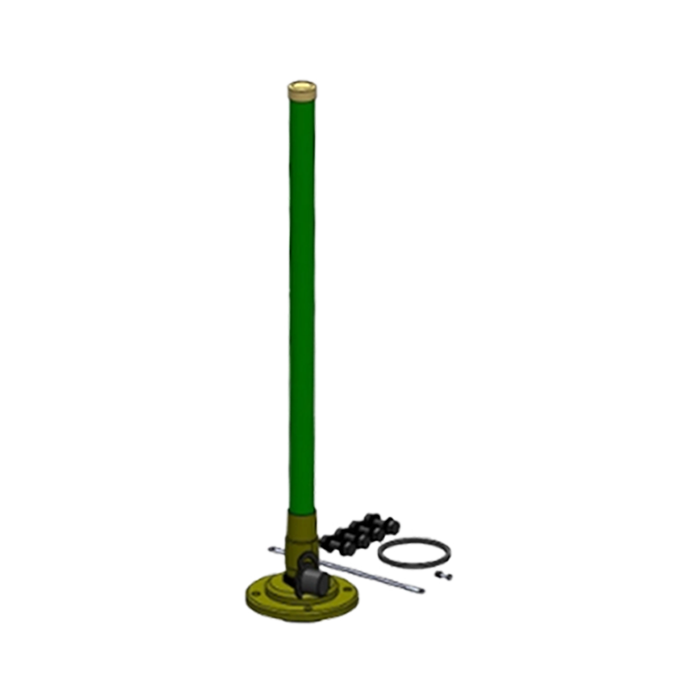

2.2-2.6 GHz 200W Tactical Vehicle Antenna
Model: MJ-2226G07T3-NF | High-Gain Signal Management | 200W CW | MIL-STD-810G
The MJ-2226G07T3-NF is a professional-grade Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management systems in the 2.2 GHz to 2.6 GHz S-Band spectrum. Delivering a robust 200 Watts (CW) power capacity and a concentrated 7 dBi high gain, this radiator maximizes transmission range for mobile platforms. It features a precision 18-degree vertical beamwidth and a heavy-duty 4-bolt mounting base, ensuring superior stability in the most extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 2200 - 2600 MHz |
| Gain | 7 dBi |
| Maximum Power | 200 Watts (Continuous Wave) |
| Vertical Beamwidth | 18° (-3dB) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| Connector | N-Female |
Mechanical & Environmental Specs

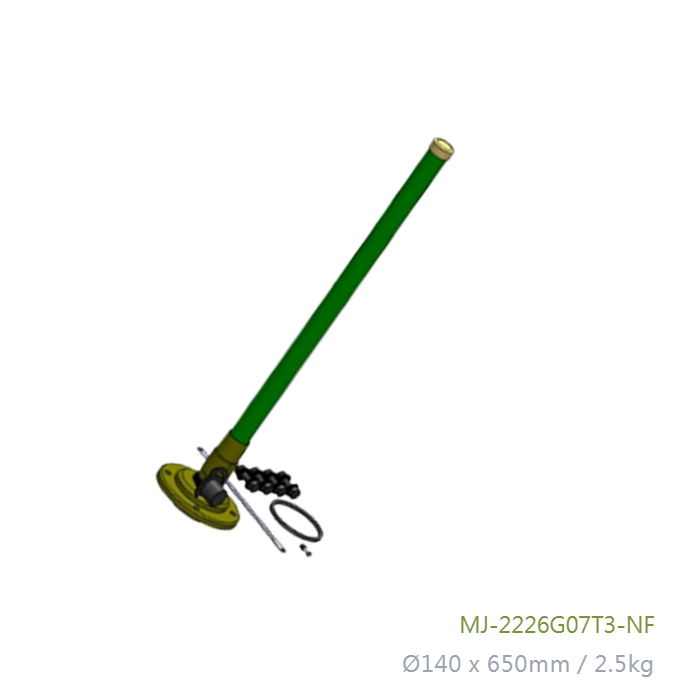

| Dimensions (WxL) | 140 x 650 mm |
| Weight | 2.5 kg |
| Installation Footprint | 114.3mm | M10x4 Bolts |
| Military Standard | MIL-STD-810G Compliant |
| Temperature Range | -40°C to +120°C |
| Waterproof Rating | IP67 Rated |
Key Tactical Features
High-Power 200W Handling
Engineered to handle intense thermal loads of 200W continuous transmission, ideal for tactical signal integrity and broadband dominance.
Extreme 18° Vertical Beam
Concentrates radiated energy precisely toward the horizon, maximizing the effective communication radius for terrestrial tactical links.
MIL-STD-810G Endurance
Ruggedized construction designed to survive extreme vibration, mechanical shocks from rapid travel, and corrosive conditions.
Heavy-Duty Base Design
Equipped with a standardized 114.3mm mounting base for secure integration onto heavy vehicle rooftops and mobile platforms.
Get a Quote / Customization
Contact us for custom mounting flange patterns or specific tactical camouflage requirements for your mobile command platforms.
