2.4GHz to 2.6GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male2.4GHz to 2.6GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

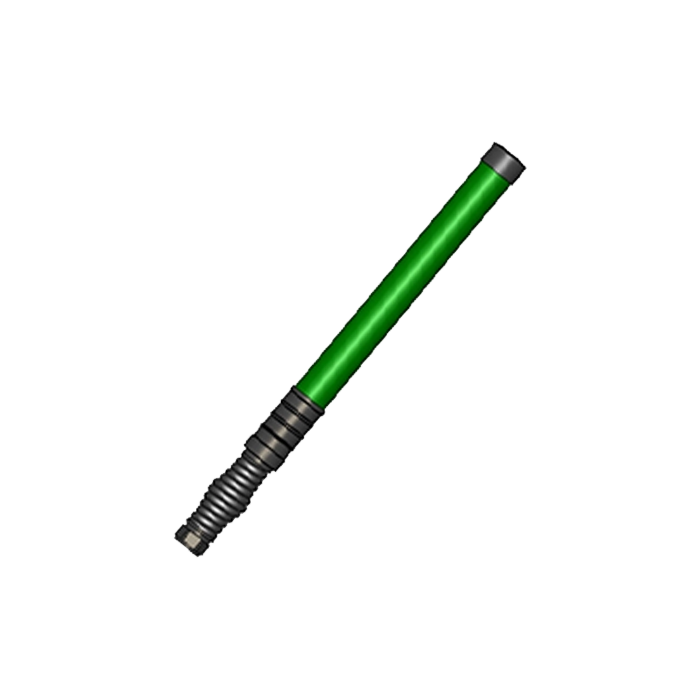

2.4-2.6 GHz High-End Manpack Antenna (Spring Base)
S-Band/ISM | 5dBi Gain | 100W Power | IP67 & MIL-STD-810G
The ME-2426G05-NM is a high-performance Manpack Antenna covering the 2.4 GHz to 2.6 GHz band, essential for ISM (WiFi/Bluetooth), 4G LTE, and tactical mesh networks. It features a rugged Spring-Loaded Base to absorb shocks and prevent damage during movement. With a length of 346mm, it offers a robust 5 dBi gain and handles high power input up to 100 Watts (CW). Engineered for extreme environments, it is IP67 waterproof, compliant with MIL-STD-810G, and operates in temperatures up to +120°C.
Technical Specifications
Electrical Specifications
| Model Number | ME-2426G05-NM (Provisional) |
| Frequency Range | 2.4 - 2.6 GHz (S-Band / ISM) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 100 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 28° |
| Connector | N-Male |
Mechanical & Environmental Specifications

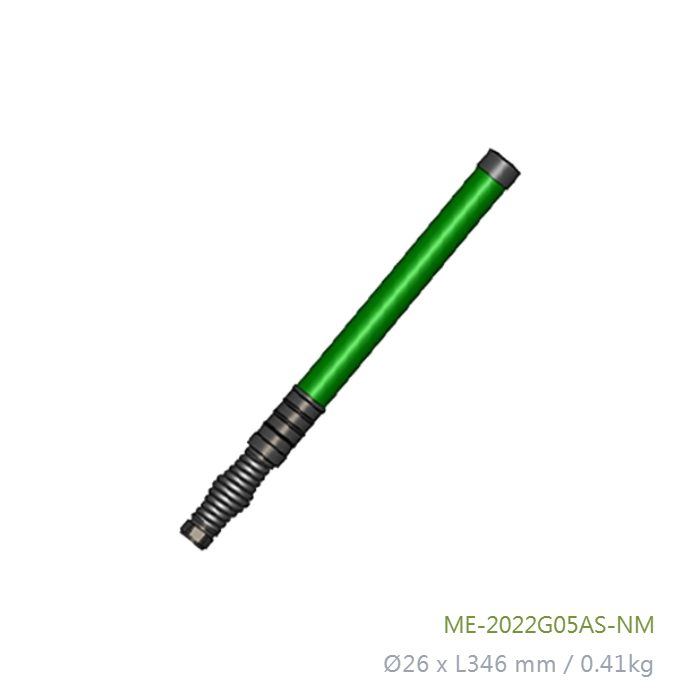

| Dimensions | Ø26 x L346 mm |
| Weight | 0.41 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
ISM & LTE Band
Perfect for 2.4 GHz WiFi, Bluetooth, Zigbee, and LTE Band 7/38/41 applications, supporting versatile tactical communications.
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, suitable for desert environments or mounting near high-temperature machinery.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
100W High Power
Capable of handling 100W Continuous Wave power, ideal for high-power video transmission or signal security operations.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
