2.8GHz to 3.0GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
2.8-3.0 GHz High-End Manpack Antenna (Spring Base)
S-Band Radar | 5dBi Gain | 75W Power | IP67 & MIL-STD-810G

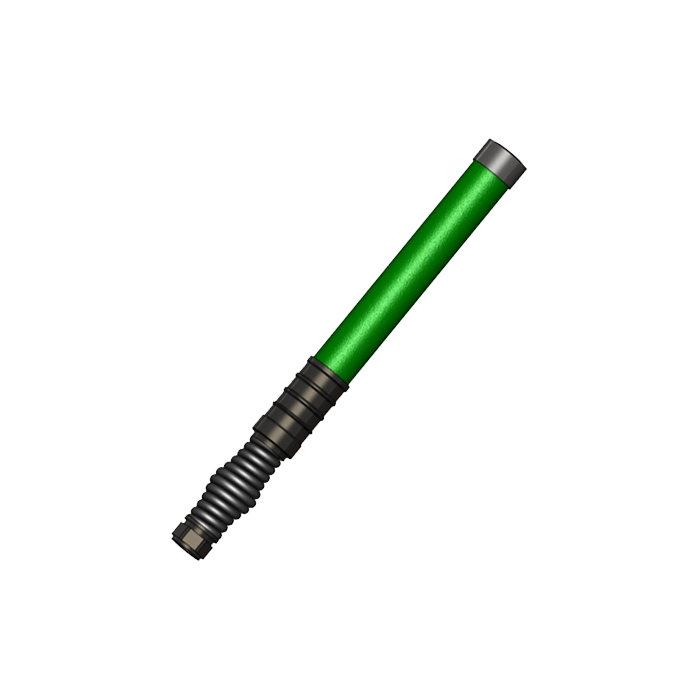

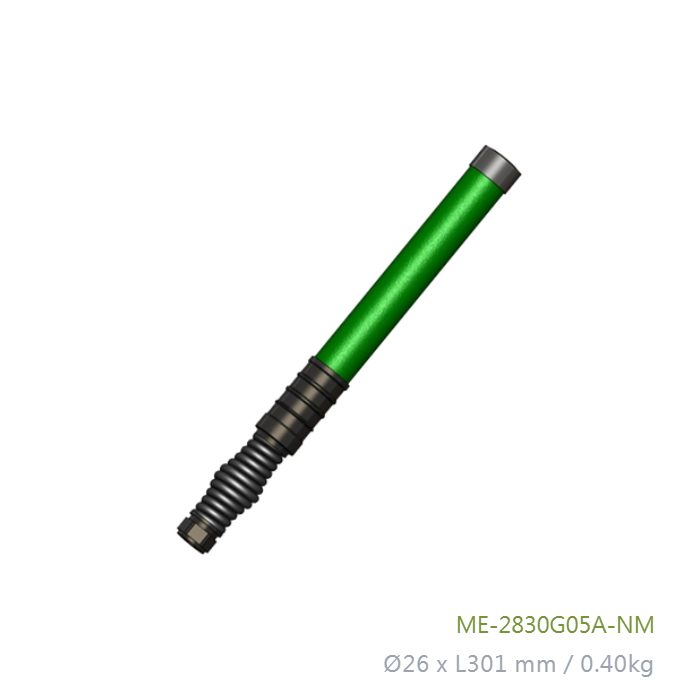

[Image of Manpack Antenna with Spring Base]
The ME-2830G05-NM is a precision-tuned Manpack Antenna covering the 2.8 GHz to 3.0 GHz S-Band frequency, typically used for radar, weather surveillance, and aeronautical navigation systems. It features a robust Spring-Loaded Base to absorb shocks and prevent damage during tactical operations. With a length of 301mm, it provides a stable 5 dBi gain and is capable of handling 75 Watts (CW) of continuous power. Built to endure harsh environments, it is IP67 waterproof, compliant with MIL-STD-810G, and operates in extreme temperatures up to +120°C.
Technical Specifications
Electrical Specifications
| Model Number | ME-2830G05-NM (Provisional) |
| Frequency Range | 2.8 - 3.0 GHz (S-Band) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 75 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 26° |
| Connector | N-Male |
Mechanical & Environmental Specifications
| Dimensions | Ø26 x L301 mm |
| Weight | 0.40 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
S-Band Radar Band
Optimized for the 2.8-3.0 GHz band, widely used in airport surveillance radar, weather monitoring, and maritime navigation.
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, suitable for desert environments or mounting near high-temperature machinery.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
75W High Power
Capable of handling 75W Continuous Wave power, ideal for high-power transmission systems or electronic countermeasure (ECM) roles.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
