3.4GHz to 3.6GHz 7dbi Signal Management Antenna For Vehicles N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

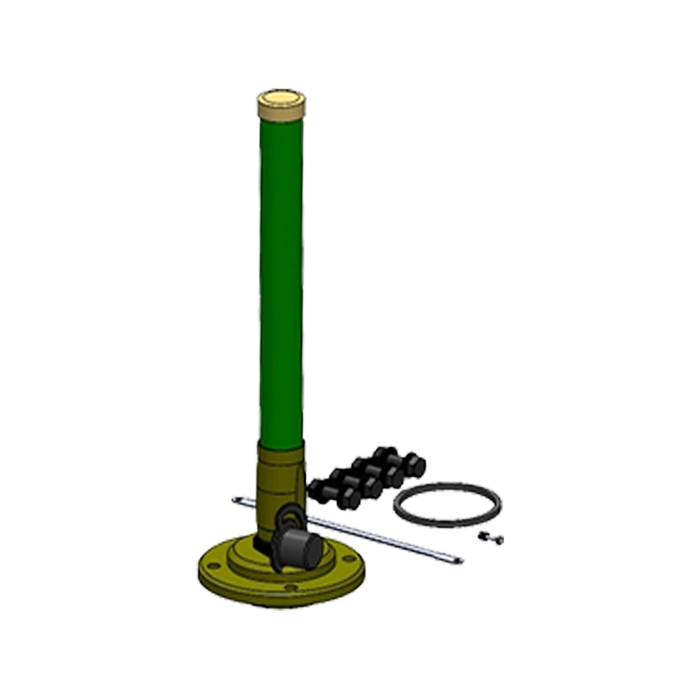

3.4-3.6 GHz 200W High-Gain Tactical Vehicle Antenna
Model: MJ-3436G07T3-NF | 5G C-Band / CBRS | 7dBi High-Gain
The MJ-3436G07T3-NF is a high-performance Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management systems within the 3.4 GHz to 3.6 GHz spectrum. Delivering a robust 200 Watts (CW) power capacity and a concentrated 7 dBi high gain, this radiator maximizes transmission distance for mobile platforms. Featuring an ultra-narrow 18-degree vertical beamwidth and a heavy-duty 4-bolt mounting base, it ensures superior mechanical survival and signal dominance in hostile environments.
Technical Specifications
Electrical Performance
| Frequency Range | 3400 MHz - 3600 MHz |
| Gain | 7 dBi (High-Efficiency Collinear) |
| Maximum Power | 200 Watts (Continuous Wave) |
| Vertical Beamwidth | 18° (Ultra-Narrow Concentrated Beam) |
| V.S.W.R | > 2.5 : 1 (Typical Across Band) |
| Connector | N-Female |
Mechanical & Environmental
| Dimensions (WxL) | 140 x 445 mm |
| Antenna Weight | 2.5 kg |
| Installation Footprint | 114.3mm | M10 x 4 Bolts |
| Operating Temp | -40°C to +120°C |
| Standard Compliance | MIL-STD-810G Compliant |
| Safety Standards | CE, FCC, RoHS, WEEE |
Key Tactical Features
Extreme 200W CW Handling
Specifically engineered to withstand intense thermal stress for 200W continuous transmission, ensuring dominance for 5G C-Band and CBRS signals.
High-Gain 7dBi Beam
Concentrates radiated energy precisely toward the horizon with an ultra-narrow 18° vertical beam, maximizing the radius for tactical links.
Heavy-Duty 4-Bolt Base
The standardized 114.3mm footprint ensures the antenna remains structurally sound on vehicle rooftops during high-vibration off-road maneuvers.
Battle-Ready Reliability
Constructed with reinforced tactical materials to survive extreme thermal fluctuations, mechanical shocks, and corrosive environments globally.
Get a Quote / Customization
Contact us for custom mounting flange patterns or specific tactical camouflage color requirements for your mobile platforms.
