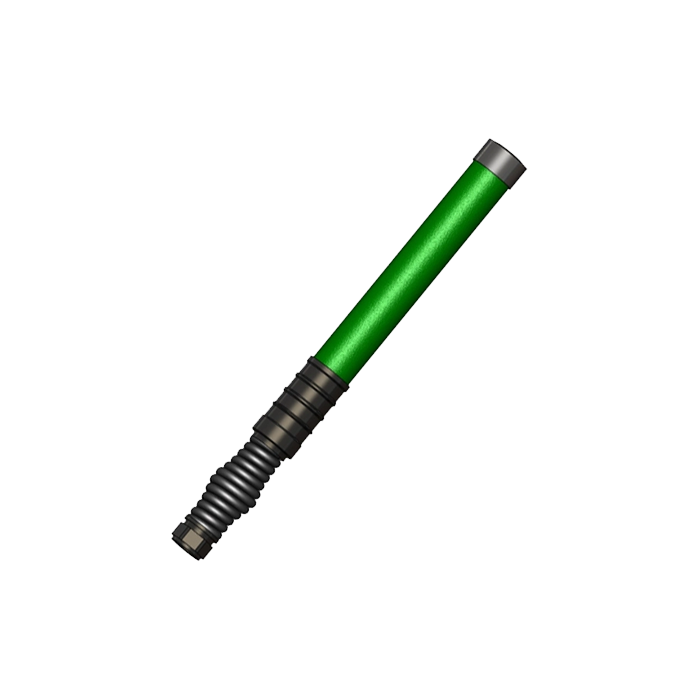

3.8GHz to 4.0GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
3.8-4.0 GHz High-End Manpack Antenna (Spring Base)
C-Band | 5dBi Gain | 70W Power | IP67 & MIL-STD-810G
This high-end Manpack Antenna is designed for the 3.8 GHz to 4.0 GHz C-Band frequency range. Featuring a rugged Spring-Loaded Base, it is built to withstand mechanical shocks during tactical operations. Despite its compact 286mm length, it delivers a powerful 5 dBi gain and handles up to 70 Watts (CW). Fully compliant with MIL-STD-810G and rated IP67 for waterproofing, this antenna operates reliably in extreme temperatures up to +120°C, making it suitable for 5G private networks, military C-band links, and harsh industrial applications.
Technical Specifications
Electrical Specifications
| Frequency Range | 3.8 - 4.0 GHz (C-Band) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 70 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 28° |
| Connector | N-Male |
Mechanical & Environmental Specifications

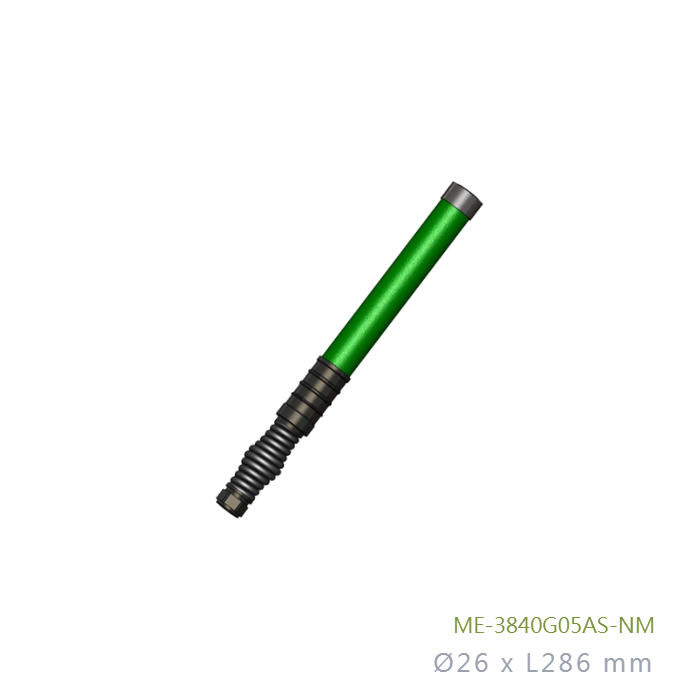

| Dimensions | Ø26 x L286 mm |
| Weight | 0.39 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, suitable for desert environments or mounting near high-temperature machinery.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
70W High Power
Capable of handling 70W Continuous Wave power, ideal for C-band datalinks and high-power transmission systems.
C-Band Optimized
Provides 5 dBi gain in the 3.8-4.0 GHz band, perfect for 5G Sub-6 applications and specialized military communications.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
