3 GHz to 4 GHz 6.5dbi Vehicular High Power Antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

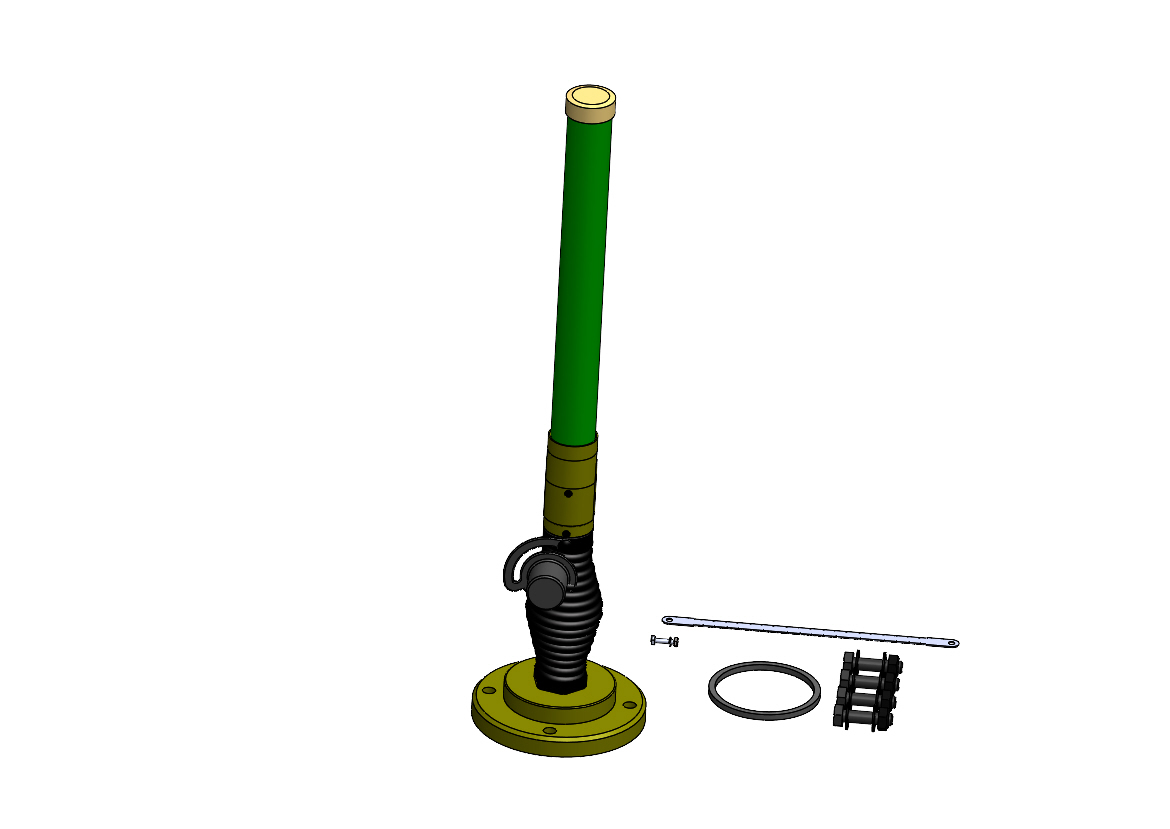

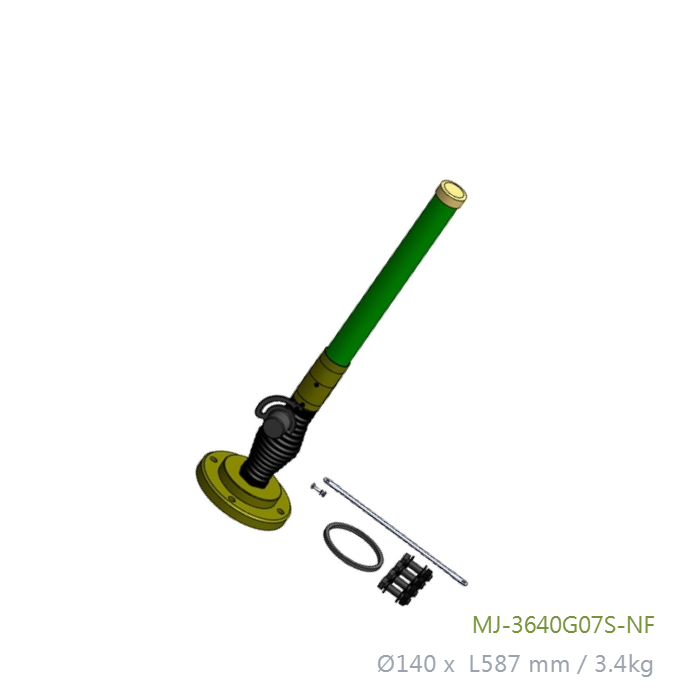

3 GHz to 4 GHz 6.5dbi Vehicular High Power Antenna
3.3 - 4.2 GHz | 100W Power | MIL-810G Rugged Spring Base
Designed for tactical mobility and harsh environments, this Vehicular High Power Antenna provides robust C-Band coverage from 3.3 GHz to 4.2 GHz. It features a heavy-duty Spring Loaded Base to absorb mechanical shock and impact during high-mobility operations. Compliant with MIL-STD-810G and rated IP65, this unit ensures reliable 360° omni-directional communication or Signal Defense capability for military and industrial vehicles.
Technical Specifications
Electrical Specifications
| Frequency Range | 3.3 GHz to 4.2 GHz |
| Gain | 7 dBi |
| Max Power Handling | 100 Watts (CW) |
| Beamwidth | H: 360° (Omni) / V: 28° |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental
| Dimensions | Ø140 x 587 mm |
| Net Weight | 3.4 kg |
| Base Type | Heavy Duty Spring Mount |
| Environmental Standards | MIL-STD-810G / IP65 Waterproof |
| Operating Temperature | -40°C to +120°C |
Key Tactical Features
Spring Loaded Base
Equipped with a robust spring mechanism to prevent damage from tree strikes or rough terrain impacts while the vehicle is in high-speed motion.
MIL-810G & IP65
Certified toughness: withstands 5G vibration, 96-hour salt spray, and water ingress, ready for the toughest Protection Operations.
100W High Power
Capable of handling 100 Watts of continuous wave power, suitable for long-range tactical communications or electronic protection applications.
Extreme Temp Range
Operates reliably from -40°C up to +120°C, ensuring mission-critical performance in desert heat or arctic environments.
Get a Quote / Customization
Contact us for specialized vehicle mounting kits or custom tactical color options.
