3 GHz to 4 GHz 7dbi Vehicle Omnidirectional Continuous-High-Power Antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
3.0 - 4.0 GHz 7dBi High-Power Tactical Vehicle Antenna
Model: MJ-3436G07S-NF | Optimized 3.5GHz | MIL-STD-810G
The MJ-3436G07S-NF is a premium Tactical Vehicle Antenna specifically optimized for the 3.4 - 3.6 GHz 5G and tactical bands. Delivering an impressive 7 dBi high gain with a narrow 28-degree vertical radiation pattern, this antenna is the ultimate solution for Signal Management and long-range high-speed data links on mobile platforms. Built with a heavy-duty spring base, it guarantees mission-critical reliability in extreme battlefield environments.
Technical Specifications
Electrical Performance
| Frequency Range | 3.0 GHz - 4.0 GHz |
| Center Frequency | 3.4 GHz - 3.6 GHz (Optimized) |
| Gain | 7 dBi (High Efficiency) |
| Maximum Power | 100 Watts (Continuous Wave) |
| Vertical Beamwidth | 28° (Concentrated Signal Path) |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental

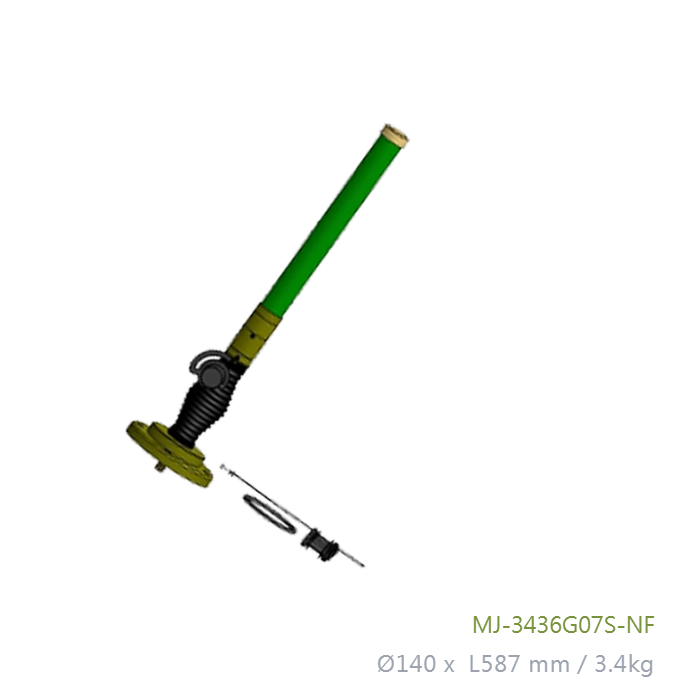

| Dimensions | Ø140 x L587 mm |
| Antenna Weight | 3.4 kg |
| Compliance | MIL-STD-810G / IP65 Rated |
| Temperature Range | -40°C to +120°C |
| Finish | Tactical Matte Black & Green |
Key Tactical Features
Supreme 7dBi High Gain
The narrow 28° vertical beam concentrates energy precisely toward the horizon, providing the maximum possible range for high-frequency tactical links.
Heavy-Duty Buffer Spring
Equipped with an integrated mechanical shock-absorber base that protects the radio's RF port and the antenna mast from mechanical damage during impact.
Continuous-High-Power
Specifically engineered to handle the thermal loads of 100W continuous transmission in the 3.5GHz band, ensuring stable Signal Security.
Battle-Ready Reliability
Constructed with reinforced tactical materials to survive high-speed vibration (5.0G), corrosive salt environments, and extreme desert/arctic heat.
Get a Quote / Customization
Contact us for custom mounting flange patterns or alternative tactical camouflage requirements.
