400 MHz to 600 MHz 3dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

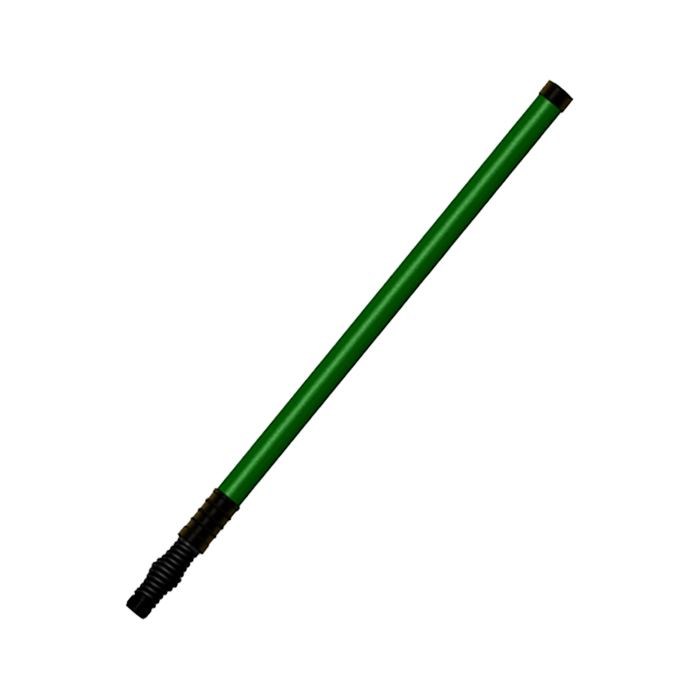

400-600 MHz High-End Tactical Manpack Antenna
Model: ME-0406M02AS-NM | 250W CW | MIL-STD-810G
The ME-0406M02AS-NM is a professional-grade, high-end Tactical Manpack Antenna designed for mission-critical UHF and low-band LTE communication. Delivering an extraordinary power capacity of 250 Watts (CW), this antenna is optimized for both portable radio sets and field-deployable high-power repeaters. Built with a flexible spring base and rated at IP67, it ensures unwavering link performance under the most extreme battlefield conditions.
Technical Specifications
Electrical Performance
| Frequency Range | 400 - 600 MHz |
| Gain | 2 dBi |
| Maximum Power | 250 Watts (Continuous Wave) |
| Vertical Beamwidth | 52° (-3dB Pattern) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental

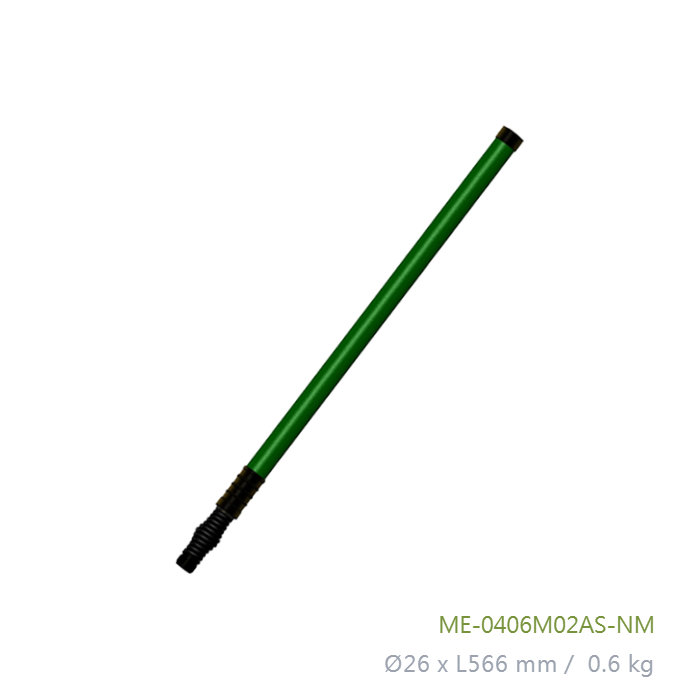

| Dimensions | Ø26 x L566 mm |
| Weight | 0.6 kg |
| Compliance | MIL-STD-810G / IP67 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
High Power 250W Handling
Specifically engineered to handle the high thermal stress of 250W continuous transmission, making it suitable for powerful tactical repeaters and mission-critical links.
Tactical Spring Base
The integrated spring allows the antenna to bend freely upon impact, protecting the radio's RF port and the antenna mast from mechanical damage during maneuvers.
Extreme Durability
Built to survive the toughest field deployments, with IP67 sealing and extensive vibration/salt spray (96HR) testing according to military standards.
Reliable Omni-Coverage
Ensures 360-degree connectivity for operators on the move, maintaining stable link quality regardless of orientation in dense brush or urban environments.
Get a Quote / Customization
Contact us for custom thread adaptations or specific tactical color schemes (Desert Tan / Foliage Green).
