4000MHz to 6800MHz 3dBi Vehicle Omnidirectional WiFi and 5G Antenna (MJ-5159G03-NF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

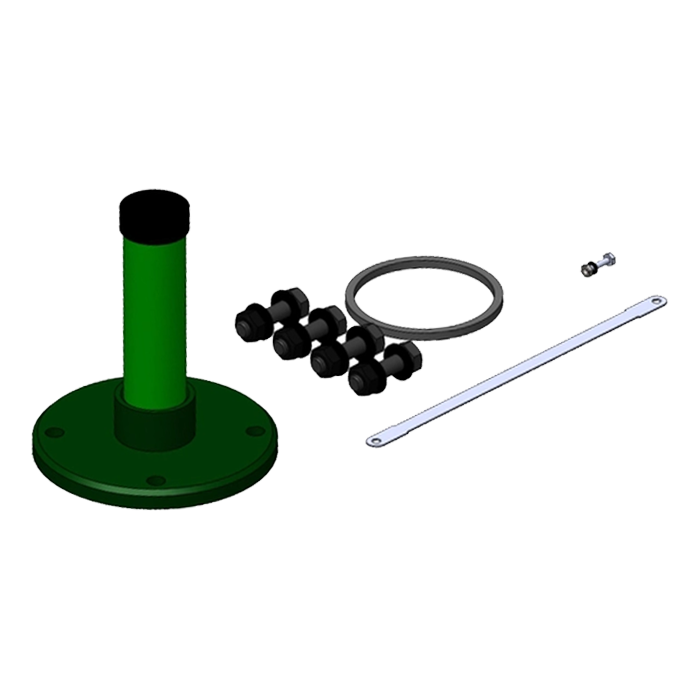

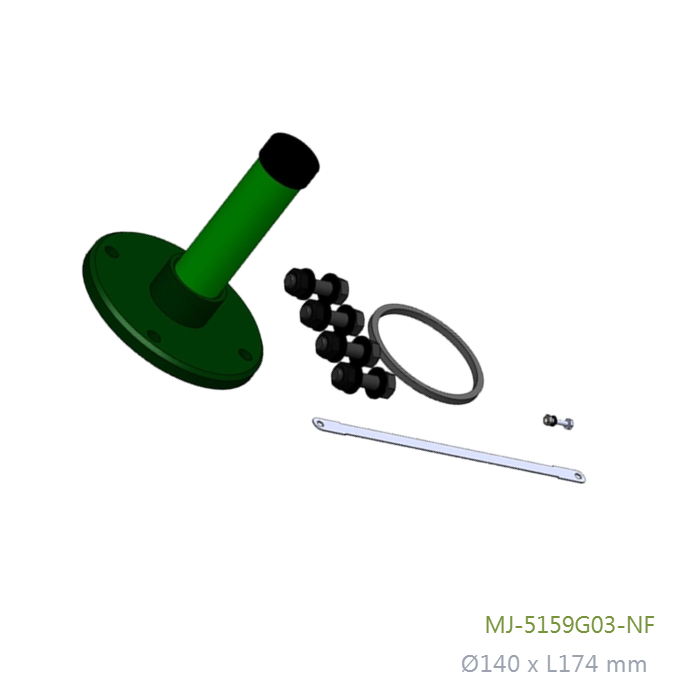

4000MHz to 6800MHz 3dBi Vehicle Omnidirectional WiFi and 5G Antenna
Model: MJ-5159G03-NF | Vehicle Omnidirectional Antenna | N-Female | 3dBi Gain
The MJ-5159G03-NF is a high-performance vehicle omnidirectional antenna engineered for signal defense, WiFi, and 5G applications across 4000MHz to 6800MHz (Center frequency: 5.1 to 5.9GHz). Featuring robust construction, IP67 waterproof rating, N-Female connector interface, high power handling capability up to 200W CW, MIL-STD-810G compliance, and stable 3dBi gain. Designed and manufactured in Taiwan by FT-RF.
Hardware Performance
| Dimensions (L x W x H) | 140 x 140 x 174 mm |
| Weight | 1.0 Kg (Estimated CAD Total) |
| Connector | N-Female (50 Ohm) |
| Hardware Material | IP67 Waterproof & MIL-STD-810G Compliant |
Software & Control
| Frequency Range | 4000 MHz to 6800 MHz (Center: 5.1 to 5.9 GHz) |
| Gain | 3 dBi |
| Max Power (CW) | 200 W |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
Wideband Frequency Coverage
Covers 4000MHz to 6800MHz with an optimized center frequency range from 5.1 to 5.9GHz for advanced communication systems.
High Power Handling
Engineered to handle up to 200W CW continuous power for demanding vehicle and signal defense deployments.
Military-Grade Durability
Fully compliant with MIL-STD-810G, featuring IP67 water resistance, 5.0G vibration test, and 96-hour salt spray resistance.
Omnidirectional Pattern
Provides 360-degree horizontal polarization coverage and 68-degree vertical beamwidth for reliable omnidirectional links.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
