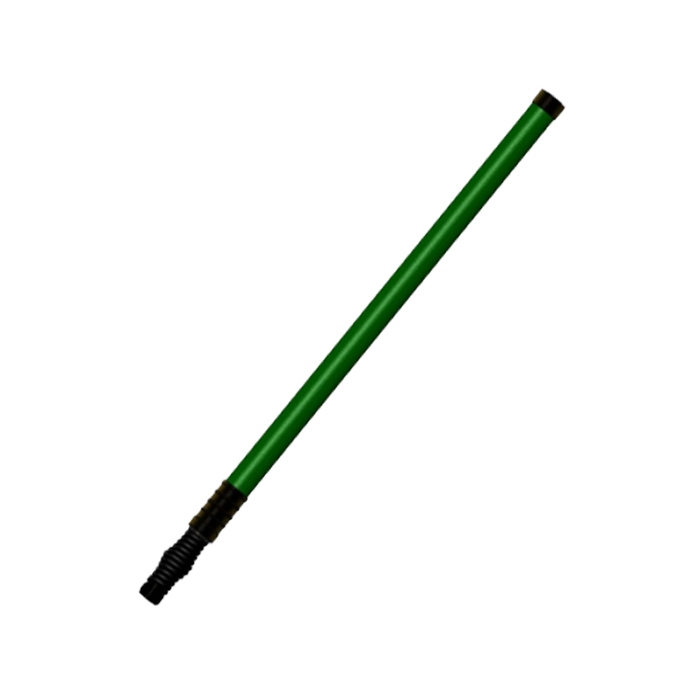

400MHz to 600MHz 3dbi Omnidirectional Handheld and Manpack Continuous-High-Power antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
400-600 MHz 250W Tactical High-Power Manpack Antenna
Model: ME-0608M02AS-NM | Continuous-High-Power | MIL-STD-810G
The ME-0608M02AS-NM is a professional-grade Tactical Manpack Antenna specifically engineered for mission-critical operations requiring Continuous-High-Power handling. Delivering an exceptional 250 Watts (CW) power capacity, this radiator is optimized for advanced handheld sets and field-deployable electronic management systems across the 400 MHz to 600 MHz spectrum. Built with a heavy-duty spring base and rated at IP67, it ensures unwavering link stability under the most extreme battlefield maneuvers.
Technical Specifications
Electrical Performance
| Frequency Range | 400 - 600 MHz |
| Gain | 2 dBi |
| Maximum Power | 250 Watts (Continuous Wave) |
| Vertical Beamwidth | 52° (-3dB Radiation Pattern) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental

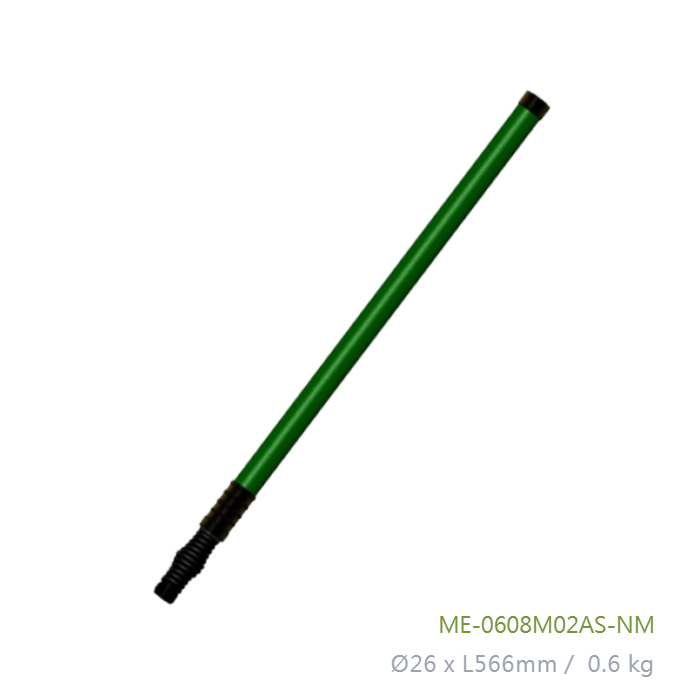

| Dimensions | Ø26 x L566 mm |
| Antenna Weight | 0.6 kg |
| Compliance | MIL-STD-810G / IP67 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
Extreme 250W Power Capacity
Specifically built to handle the intense thermal loads of 250W continuous transmission, ideal for mobile Signal Defense systems and high-power repeaters.
Tactical Spring Impact Buffer
The integrated heavy-duty spring allows the antenna to deflect and return to its original position upon impact, safeguarding the radio's RF port during intense maneuvers.
MIL-STD-810G Reliability
Engineered for maximum structural integrity against severe vibrations, high-speed travel shocks, and salt-heavy coastal environments (96HR).
IP67 Waterproof Sealing
Advanced sealing technology ensures reliable operation during immersion and heavy rain, maintaining peak Signal Integrity in all-weather battlefield scenarios.
Get a Quote / Customization
Contact us for custom length modifications or alternative connector types for tactical command systems.
