400MHz to 600MHz 3dbi Vehicle Omnidirectional Continuous-High-Power antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

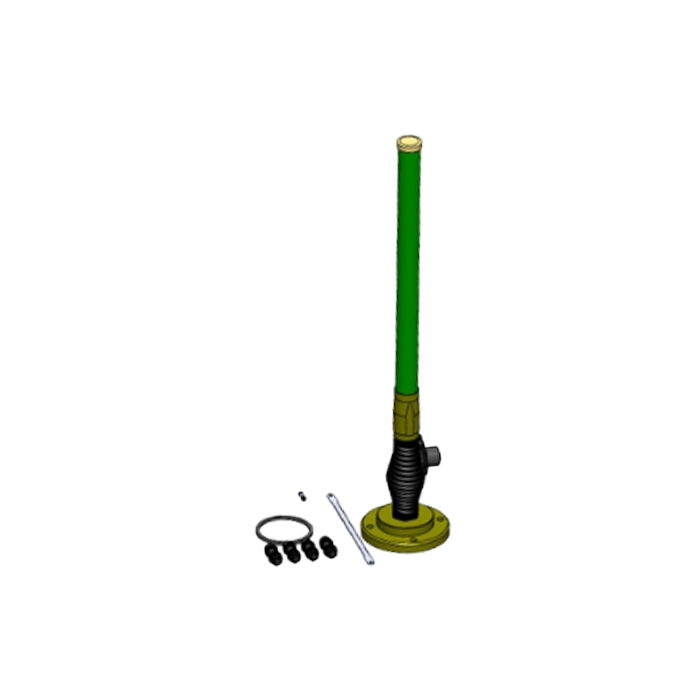

400-600 MHz 300W High-Power Vehicle Antenna

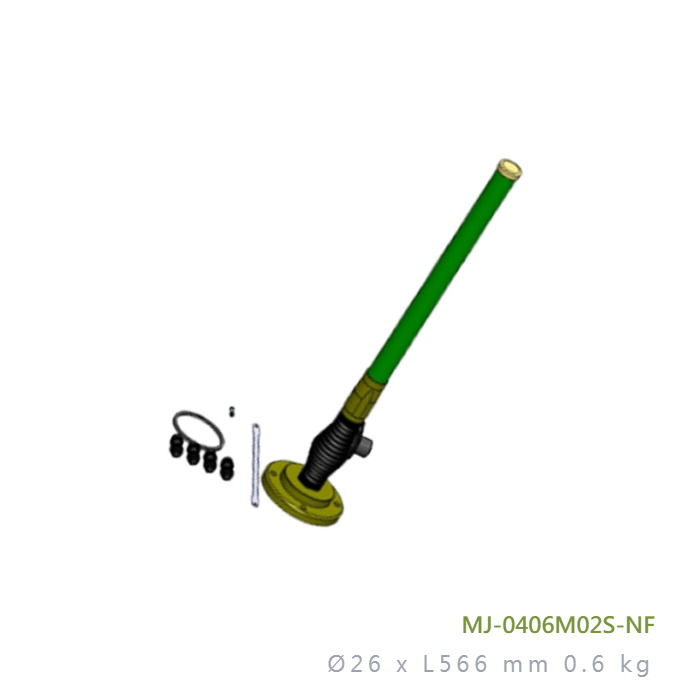

Model: MJ-0406M02S-NF | Continuous-High-Power | MIL-STD-810G
The MJ-0406M02S-NF is a premium, mission-critical Tactical Vehicle Antenna engineered for Continuous-High-Power handling within the 400 MHz to 600 MHz spectrum. Delivering an extraordinary 300 Watts (CW) power capacity, this radiator is designed for high-intensity Signal Management and advanced mobile command units. Built with a heavy-duty spring base, it ensures unwavering performance under the most extreme thermal and vibrational environments.
Technical Specifications
Electrical Performance
| Frequency Range | 400 - 600 MHz |
| Gain | 2 dBi |
| Maximum Power | 300 Watts (Continuous Wave) |
| Vertical Beamwidth | 52° (-3dB Pattern) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental
| Dimensions | Ø140 x L721 mm |
| Antenna Weight | 3.6 kg |
| Compliance | MIL-STD-810G / IP65 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
Extreme 300W CW Handling
Specifically built to withstand the intense thermal stress of 300W continuous transmission, making it ideal for mobile Signal Security systems and high-power repeaters.
Heavy-Duty Spring Base
Equipped with a robust impact buffer that allows the antenna mast to deflect upon hitting obstacles, protecting the vehicle mount and the RF line during off-road travel.
MIL-STD-810G Reliability
Engineered for maximum structural integrity against severe vibrations, high-speed travel shocks, and salt-heavy coastal environments (96HR).
