500 MHz to 6 GHz 5dBi Vehicle Omnidirectional Signal Management Antenna
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

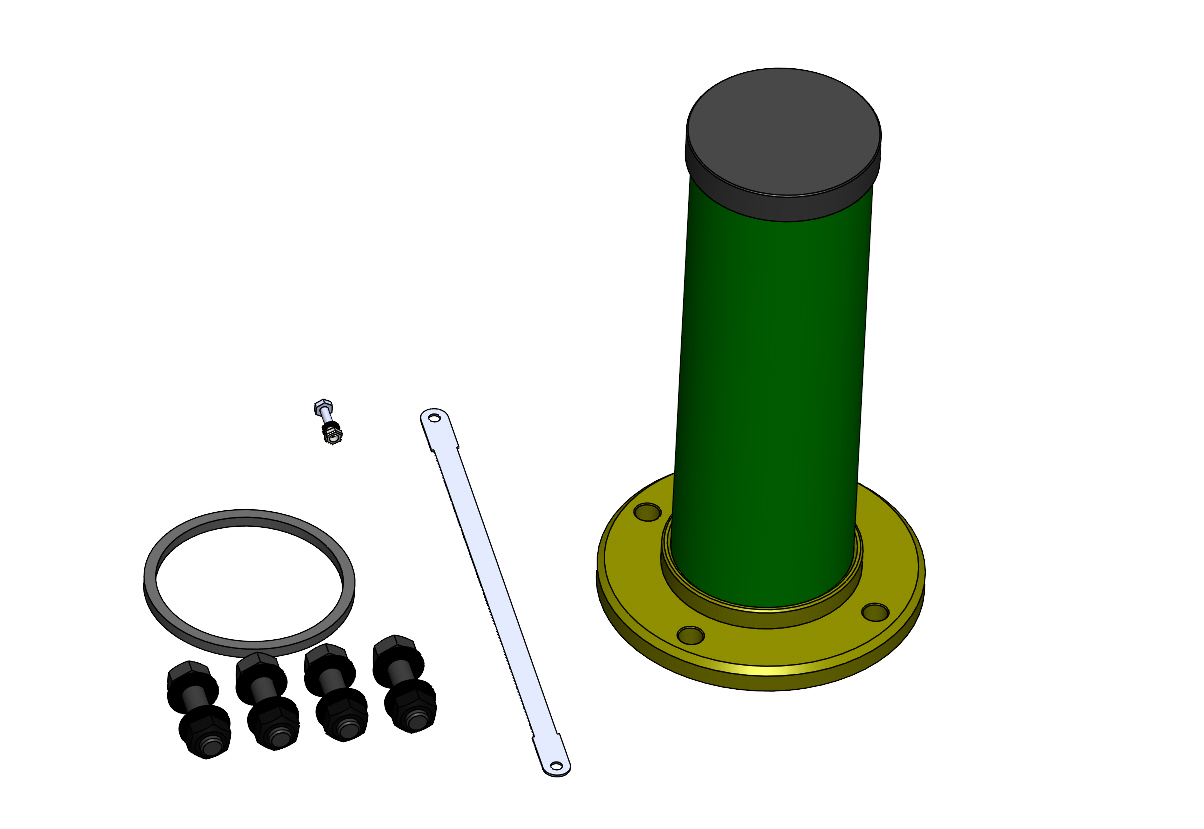

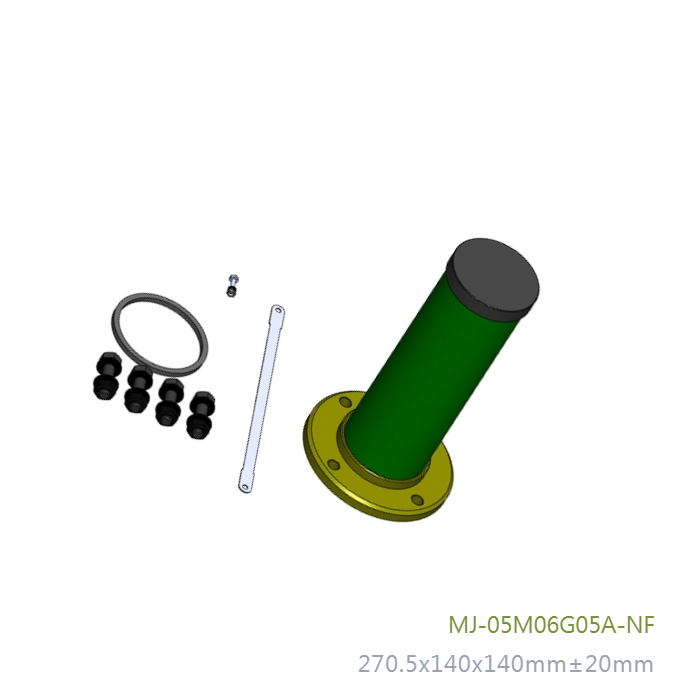

500 MHz to 6 GHz 5dBi Vehicle Omnidirectional Signal Management Antenna
500 MHz to 6 GHz | 500W CW Power | Ultra-Wideband Tactical Vehicle Antenna
The MJ-05M06G05A-NF is a state-of-the-art Ultra-Wideband Tactical Vehicle Antenna designed for maximum spectral flexibility and high-intensity signal security. Engineered to cover a massive range from 500 MHz to 6.0 GHz, it supports UHF, LTE, 5G, and C-band communications through a single radiator. With an unmatched power rating of 500 Watts (CW), it is purpose-built for professional signal management and tactical defense operations in the most extreme battlefield environments.
Technical Specifications
Electrical Performance
| Frequency Range | 500 MHz - 6.0 GHz (Ultra-Wideband) |
| Gain | -3 dBi to 5 dBi |
| Maximum Power (CW) | 500 Watts |
| V.S.W.R | ≤ 2.5 : 1 (Typical Across Band) |
| Radiation Pattern | Omni-Directional (360°) |
| Impedance | 50 Ohm |
| Connector | N-Female |
Mechanical & Environmental Specs
| Mounting Pattern | 114.3mm Footprint | M10 x 4 Bolts |
| Operating Temperature | -40°C to +120°C |
| Durability Standards | MIL-STD-810G Compliant Design |
| Sealing Rating | IP65 Waterproof & Dustproof |
| Tactical Color | Matte Black / Tactical Green |
Key Tactical Features
Extreme 500W Capacity
Designed to handle industry-leading thermal loads of 500W continuous transmission for mobile signal security and protection operations.
Multi-Mission Bandwidth
Spans 500MHz to 6GHz spectrum, providing a single-antenna solution for UHF, LTE, 5G, and microwave links.
Rugged Heavy-Duty Base
Engineered to secure the radiator against extreme vehicle vibrations and high-speed off-road tactical maneuvers.
Taiwan Precision Eng.
Manufactured in Taiwan to the highest industrial RF standards, ensuring peak performance and mechanical survival in the field.
Get a Quote / Customization
Contact us for custom mounting flange adaptations or tactical camouflage color requirements for your command platforms.
