600 MHz to 800 MHz 3dbi High Power Vehicular Antenna BNC-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

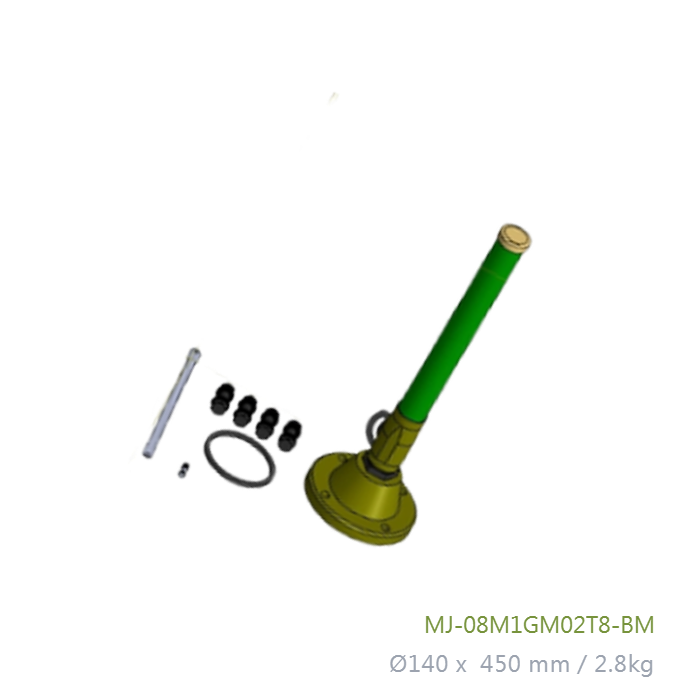

800 MHz - 1 GHz 300W High-Power Tactical Vehicle Antenna
Model: MJ-08M1GM02T8-BM | Signal Management | 300W CW | MIL-STD-810G
The MJ-08M1GM02T8-BM is a high-performance Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management operations. Delivering a massive 300 Watts (CW) power capacity, this radiator is designed for high-intensity protection units. Featuring a ruggedized BNC-Female connector and a heavy-duty 4-bolt mounting base, it ensures superior link stability in the most extreme battlefield environments.
Technical Specifications
Electrical Performance
| Frequency Range | 800 MHz - 1 GHz |
| Gain | -1 dBi to 3 dBi |
| Maximum Power | 300 Watts (Continuous Wave) |
| Vertical Beamwidth | 48° (-3dB Focused Elevation) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| Connector | BNC-Female |
Mechanical & Environmental Specs
| Dimensions (WxL) | 140 x 450 mm |
| Antenna Weight | 2.8 kg |
| Installation Footprint | 114.3mm | M10 x 4 Bolts |
| Military Standard | MIL-STD-810G Compliant Design |
| Operating Temp | -40°C to +120°C |
Key Tactical Features
Extreme 300W CW Handling
Designed to manage high thermal stress for 300W continuous transmission, ideal for mobile electronic protection and signal security operations.
Heavy-Duty 4-Bolt Mounting
The 114.3mm standardized mounting base ensures the antenna remains secure on armored vehicles during high-vibration travel.
Focused Vertical Coverage
The 48-degree vertical beamwidth concentrates energy effectively toward the horizon, enhancing signal link distance for terrestrial operations.
Battle-Ready Reliability
Fully compliant with MIL-STD-810G, this antenna is built to withstand extreme mechanical shocks and corrosive environments globally.
Get a Quote / Customization
Contact us for alternative connector types or specific tactical camouflage requirements for your mobile platforms.
