600MHz to 800MHz 3dbi High Power Vehicular Antenna BNC-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

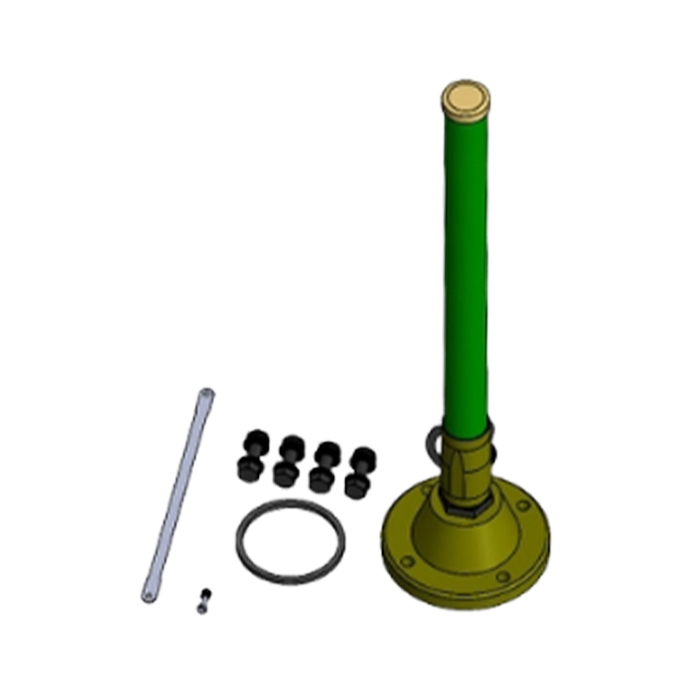

600-800 MHz 300W High-Power Tactical Vehicle Antenna
Model: MJ-0608M02T8-BM | Signal Management | 300W CW | MIL-Standards Compliant
The MJ-0608M02T8-BM is a high-performance Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management systems within the 600 MHz to 800 MHz spectrum. Delivering a robust 300 Watts (CW) power capacity, this radiator is designed for high-intensity Electronic Protection and advanced mobile command units. Featuring a standardized 4-bolt mounting base, it ensures superior mechanical stability on vehicle platforms in the most hostile environments.
Technical Specifications
Electrical Performance
| Frequency Range | 600 MHz - 800 MHz |
| Gain | -1 to 3 dBi |
| Maximum Power | 300 Watts (Continuous Wave) |
| Vertical Beamwidth | 48° (Concentrated Signal Path) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| Connector | BNC-Female |
Mechanical & Environmental Specs

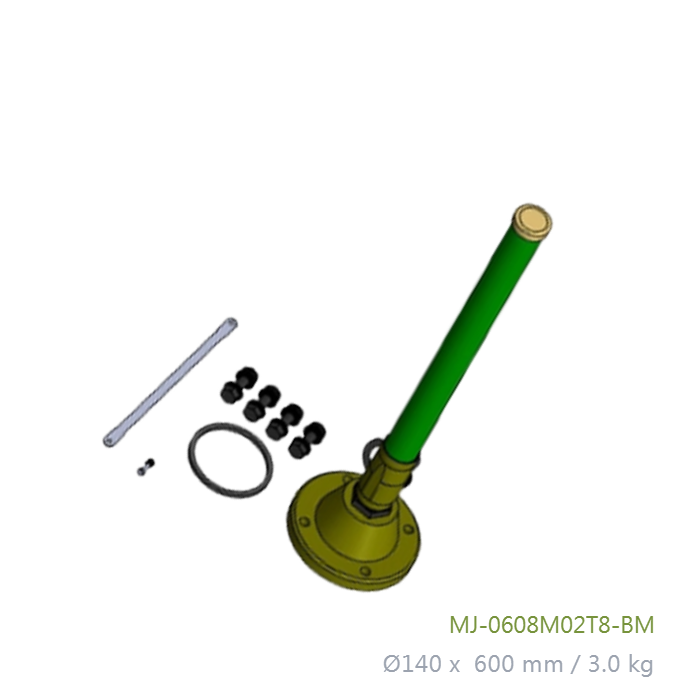

| Dimensions (WxL) | 140 x 600 mm |
| Antenna Weight | 3.0 kg |
| Installation Footprint | 114.3mm | M10 x 4 Bolts |
| Operating Temp | -40°C to +120°C |
| Military Standard | MIL-Standards Compliant |
| Safety Compliance | CE, FCC, RoHS, WEEE |
Key Tactical Features
Extreme 300W CW Handling
Designed to handle unmatched thermal stress for 300W continuous transmission, making it the primary radiator for mobile Signal Security and management systems.
Heavy-Duty 4-Bolt Base
The standardized 114.3mm mounting pattern ensures the antenna remains structurally sound on heavy vehicle platforms during high-vibration maneuvers.
Focused 48-Degree Elevation
Concentrates radiated energy effectively toward the horizon, enhancing the operational range for terrestrial tactical links and signal management.
Rugged All-Weather Reliability
Constructed with reinforced tactical materials to survive extreme temperatures, mechanical shocks, and corrosive conditions globally.
Get a Quote / Customization
Contact us for alternative connector types (N-Type/SMA) or specific tactical camouflage requirements for your mobile assets.
