600MHz to 800MHz 3dbi Signal Management Antenna For Vehicles BNC-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

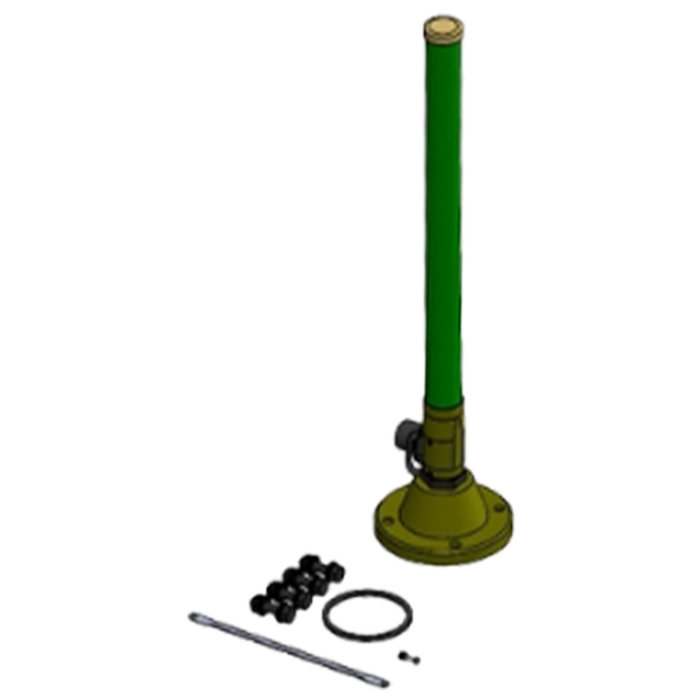

600-800 MHz 500W Ultra-High-Power Tactical Vehicle Antenna
Model: MJ-0406M02T8-BM | Signal Management | 500W CW | MIL-Standards
The MJ-0406M02T8-BM is an industry-leading Tactical Vehicular Antenna specifically engineered for mission-critical Signal Management systems within the 600 MHz to 800 MHz spectrum. Delivering an extraordinary 500 Watts (CW) power capacity, this radiator is designed for high-intensity electronic protection and signal dominance. Featuring a heavy-duty 4-bolt mounting base, it ensures maximum stability on armored platforms in the most hostile environments.
Technical Specifications
Electrical Performance
| Frequency Range | 600 MHz - 800 MHz |
| Gain | -1 dBi to 3 dBi |
| Maximum Power | 500 Watts (Continuous Wave) |
| Vertical Beamwidth | 48° (Focused Signal Path) |
| V.S.W.R | > 2.5 : 1 (Typical Across Band) |
| Connector | BNC-Female |
Mechanical & Environmental Specs

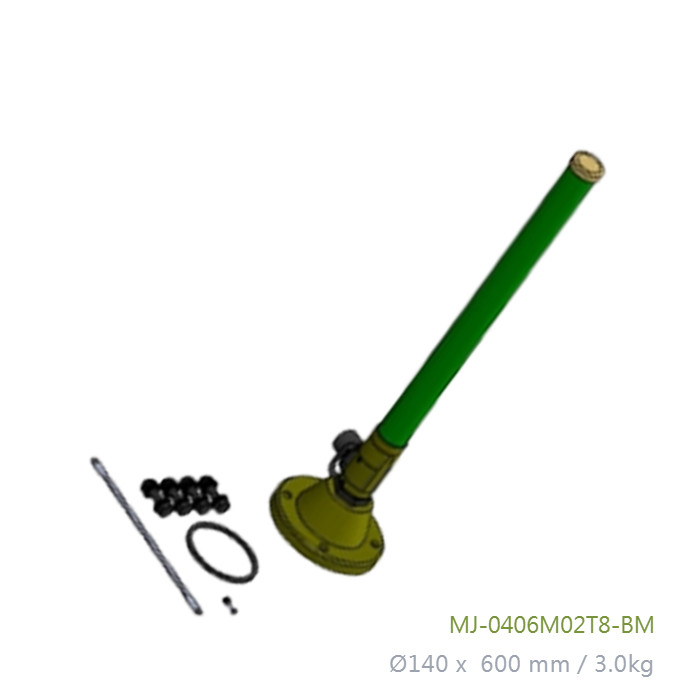

| Dimensions (WxL) | 140 x 600 mm |
| Antenna Weight | 3.0 kg |
| Installation Footprint | 114.3mm | M10 x 4 Bolts |
| Military Standard | MIL-Standards Compliant |
| Operating Temp | -40°C to +120°C |
| Safety Compliance | CE, FCC, RoHS, WEEE |
Key Tactical Features
Extreme 500W CW Handling
Engineered to withstand unmatched thermal stress for 500W continuous transmission, making it the primary radiator for mobile Signal Defense systems.
Heavy-Duty 4-Bolt Base
The standardized 114.3mm footprint ensures the antenna remains structurally sound on heavy-duty vehicle platforms during high-vibration off-road travel.
Focused 48-Degree Elevation
Concentrates radiated energy effectively toward the horizon, enhancing the operational range for terrestrial tactical links and Signal Management.
Rugged All-Weather Reliability
Constructed with reinforced tactical materials to survive extreme thermal fluctuations, mechanical shocks, and corrosive conditions globally.
Get a Quote / Customization
Contact us for custom mounting flange adaptations or alternative tactical camouflage color requirements for your mobile assets.
