600MHz to 800MHz 3dbi Vehicular High Power Antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
600-800 MHz 300W Continuous-High-Power Vehicular Antenna
Model: MJ-0608M02S-NF | Tactical Spring Base | MIL-STD-810G
The MJ-0608M02S-NF is a professional-grade Tactical Vehicular Antenna specifically engineered for mission-critical operations requiring Continuous-High-Power handling within the 600 MHz to 800 MHz spectrum. Delivering an extraordinary 300 Watts (CW) power capacity, this radiator is designed for high-intensity Signal Defense systems. Built with a heavy-duty spring base, it ensures superior mechanical protection during high-speed off-road maneuvers.
Technical Specifications
Electrical Performance
| Frequency Range | 600 - 800 MHz |
| Gain | 2 dBi |
| Maximum Power | 300 Watts (Continuous Wave) |
| Vertical Polarization | 52° (-3dB Beamwidth) |
| Horizontal Polarization | 360° (Omnidirectional) |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental

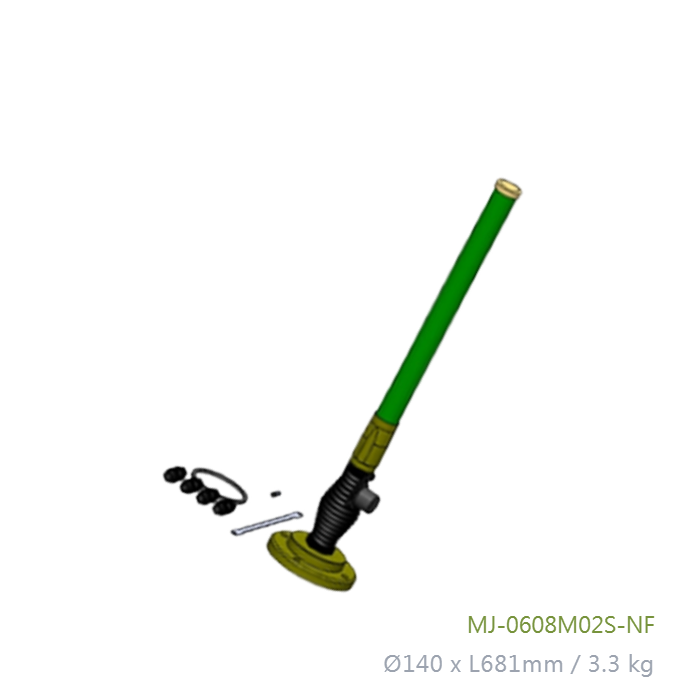

| Dimensions | Ø140 x L681 mm |
| Antenna Weight | 3.3 kg |
| Compliance | MIL-STD-810G / IP65 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
Extreme 300W CW Handling
Designed to withstand intense thermal stress during 300W continuous transmission sessions, making it ideal for mobile Signal Defense repeaters or high-power broadcasting.
Heavy-Duty Shock Spring
Equipped with a robust buffer spring that allows the antenna mast to bend freely upon impact with obstacles, safeguarding the vehicle's RF port during off-road travel.
MIL-STD-810G Endurance
Engineered for maximum structural integrity against severe vibrations, high-speed travel shocks, and corrosive salt-heavy (96HR) coastal environments.
All-Weather Operations
Advanced sealing technology and tactical materials ensure peak Signal Security performance in extreme temperatures and high-humidity scenarios (-40 to +120°C).
Get a Quote / Customization
Contact us for custom mounting flange patterns or specific tactical camouflage requirements.
