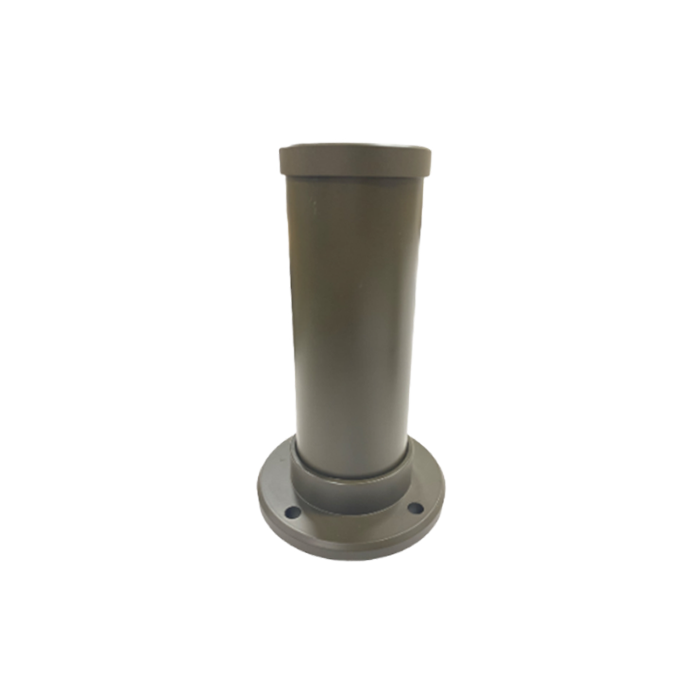

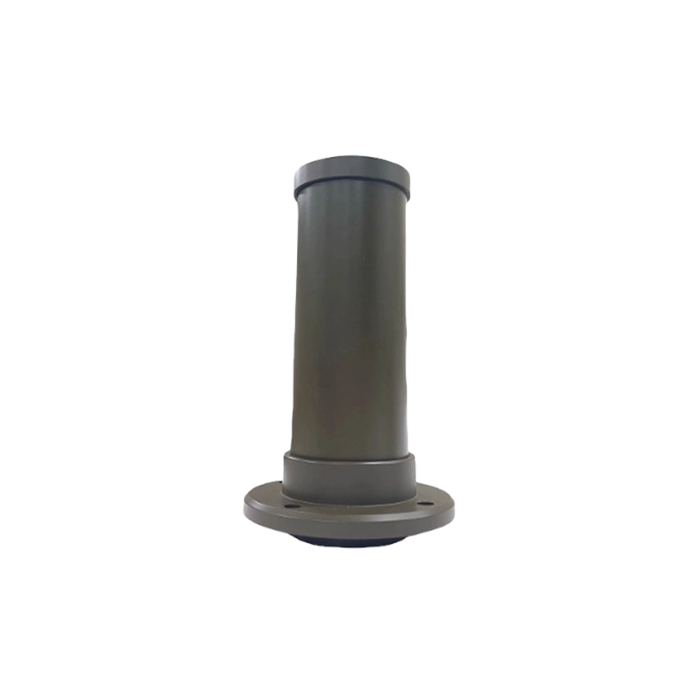

680MHz to 1100MHz 3dbi Vehicular Omnidirectional Antenna, MJ-06M11G03A-NF
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
680-1100 MHz 500W High Power Vehicular Antenna
Model: MJ-06M11G03A-NF | 500W CW Power | LoRa/GSM/3G Optimized
The MJ-06M11G03A-NF is a heavy-duty Signal Management antenna designed for advanced vehicular applications. Covering the 680-1100 MHz range, it features optimized performance in the 860-970 MHz band, making it the ultimate solution for managing 2G, 3G, and LoRa frequencies. Despite its compact 311mm profile, this robust 2.2kg unit handles an immense 500 Watts of Continuous Wave (CW) power, ensuring absolute Signal Integrity in the field.
Technical Specifications
Electrical Performance
| Frequency Range | 680 MHz to 1100 MHz |
| Operational Center | 860 MHz to 970 MHz (Optimized) |
| Maximum Power | 500 Watts (Continuous Wave) |
| Gain | 3 dBi |
| Beamwidth | H: 360° / V: 58° |
| V.S.W.R | ≤ 2.5 : 1 |
| Connector | N-Female |
Mechanical & Environmental
| Dimensions | Ø 140 x 311 mm (Compact Profile) |
| Net Weight | 2.2 kg (Heavy Duty Construction) |
| Waterproof Rating | IP67 Sealed Housing |
| Compliance | MIL-STD-810G, CE, FCC, RoHS |
| Temperature Range | -40°C to +120°C |
| Finish | Tactical Black and Green |
Key Tactical Features
500W High Power
Engineered for extreme Signal Management and Electronic Protection, capable of handling 500W CW in a compact tactical package.
LoRa/GSM/3G Optimization
Specific tuning for the 860-970 MHz band ensures maximum efficiency for LoRaWAN and secure Signal Security communication links.
Heavy-Duty Build
Weighing 2.2kg with a solid core, it offers exceptional thermal mass and structural integrity during high-power Tactical Use.
MIL-STD-810G Certified
Withstands 5G vibration and salt spray, ensuring mission readiness for armored vehicles and professional Signal Defense operations.
Get a Quote / Customization
Contact us for custom vehicle mounting patterns or specific frequency tuning for your communication project.
