700MHz to 1600MHz 3dbi Vehicle Omnidirectional Continuous-High-Power GPS antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

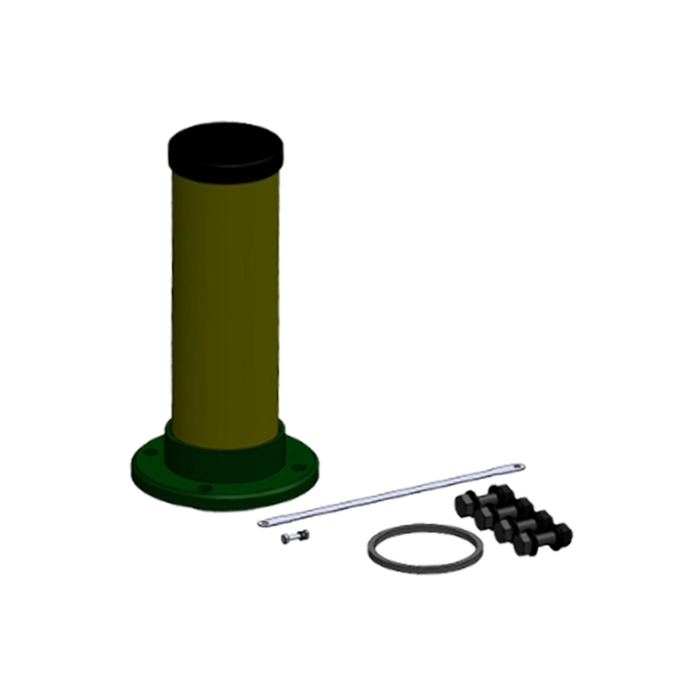

700-1600 MHz 300W High-Power Tactical GPS/Vehicle Antenna
Model: MJ-1213G03-NF | Optimized 1.2-1.3GHz | 300W CW | MIL-STD-810G
The MJ-1213G03-NF is a professional-grade Tactical Vehicular Antenna specifically engineered for high-intensity Signal Management and mission-critical GPS/GNSS operations. Spanning a broad spectrum from 700 MHz to 1600 MHz with an optimized center frequency, this antenna delivers an extraordinary 300 Watts (CW) power capacity. Its compact, low-profile design ensures minimal mechanical stress on mobile platforms. Fully compliant with MIL-STD-810G and rated at IP67, it ensures unwavering link dominance in the most hostile environments.
Technical Specifications
Electrical Performance
| Frequency Range | 700 MHz - 1600 MHz |
| Center Frequency | 1200 MHz - 1300 MHz (Optimized) |
| Gain | 3 dBi |
| Maximum Power | 300 Watts (Continuous Wave) |
| Vertical Beamwidth | 68° (-3dB Terrain Adaptability) |
| V.S.W.R | ≤ 2.0 : 1 (Typical Across Band) |
| Connector | N-Female |
Mechanical & Environmental Specs

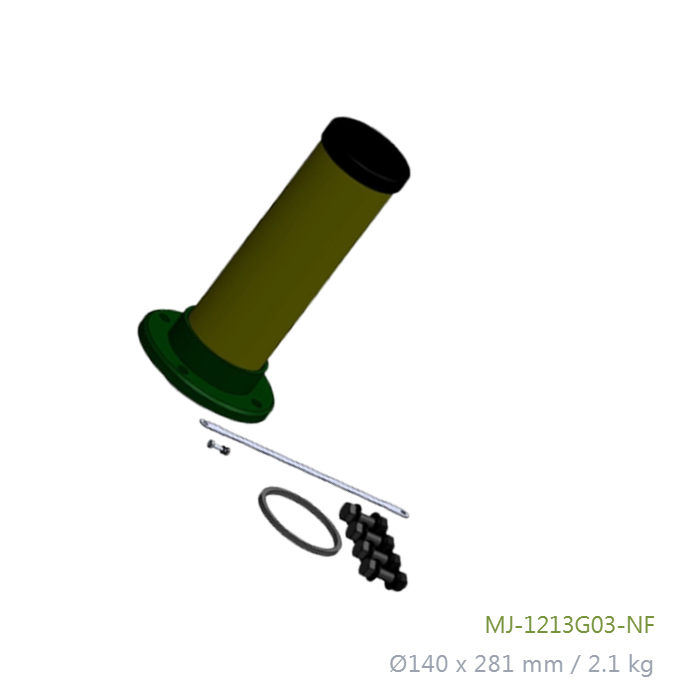

| Dimensions (WxH) | 140 x 281 mm (Tactical Low Profile) |
| Antenna Weight | 2.1 kg |
| Waterproof Rating | IP67 (Immersion Resistant) |
| Military Standard | MIL-STD-810G Compliant |
| Temperature Range | -40°C to +120°C |
| Testing Standards | 5.0G Vibration / 96H Salt Spray |
Key Tactical Features
High Power 300W CW Handling
Specifically engineered to withstand intense thermal stress for 300W continuous transmission, making it ideal for mobile Signal Security and protection operations.
Broadband L-Band Flexibility
Consolidates mission frequencies from 700MHz to 1.6GHz, allowing for simultaneous management of tactical radio, 4G/5G, and multi-band GPS signals.
Superior Wide Beamwidth
The 68-degree vertical beamwidth provides excellent link robustness even when the vehicle is traversing uneven terrain or tilting during maneuvers.
Battle-Tested IP67 Sealing
Ensures structural integrity and electrical performance during deep-water fording or heavy tropical storms, fully protecting the RF interface.
Get a Quote / Customization
Contact us for custom mounting flange patterns or specific GNSS L1/L2/L5 filtering requirements for your mobile platforms.
