800MHz to 1000MHz 3dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
800-1000 MHz High-End Tactical Manpack Antenna
Model: ME-08M1G02S-NM | 150W CW | MIL-STD-810G
The ME-08M1G02S-NM is a high-performance Tactical Manpack Antenna specifically engineered for mission-critical operations in the 800 MHz to 1000 MHz spectrum. Delivering a maximum power capacity of 150 Watts (CW), this antenna is optimized for GSM 900, LTE, and professional LoRa/RFID networks. Built with an integrated spring base and rated at IP67, it ensures reliable communication under the most extreme battlefield conditions.
Technical Specifications
Electrical Performance
| Frequency Range | 800 - 1000 MHz |
| Gain | 2 dBi |
| Maximum Power | 150 Watts (Continuous Wave) |
| Vertical Beamwidth | 58° (-3dB Radiation Pattern) |
| Horizontal Beamwidth | 360° (Omnidirectional) |

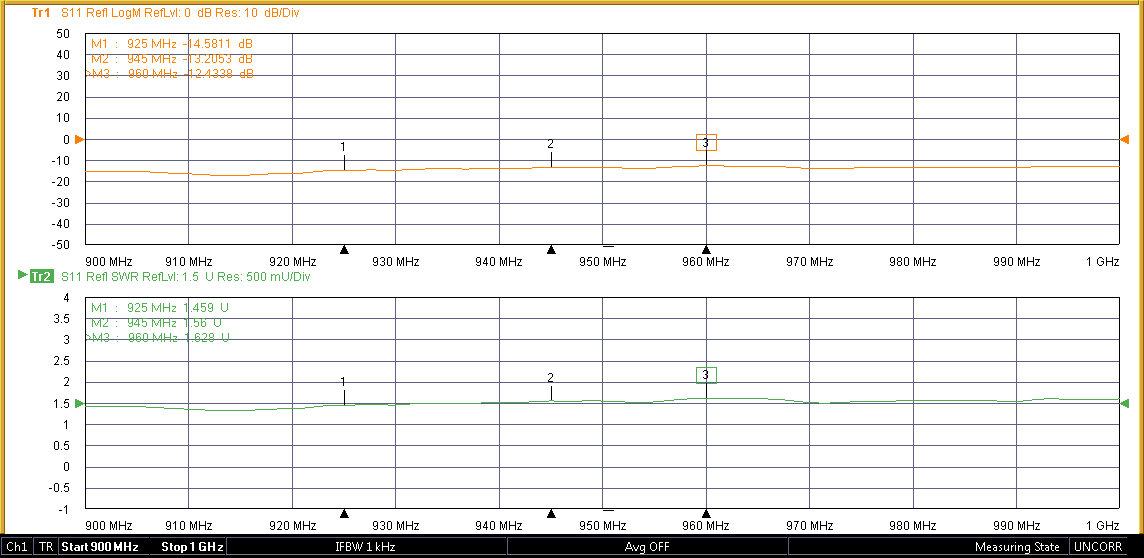

| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental

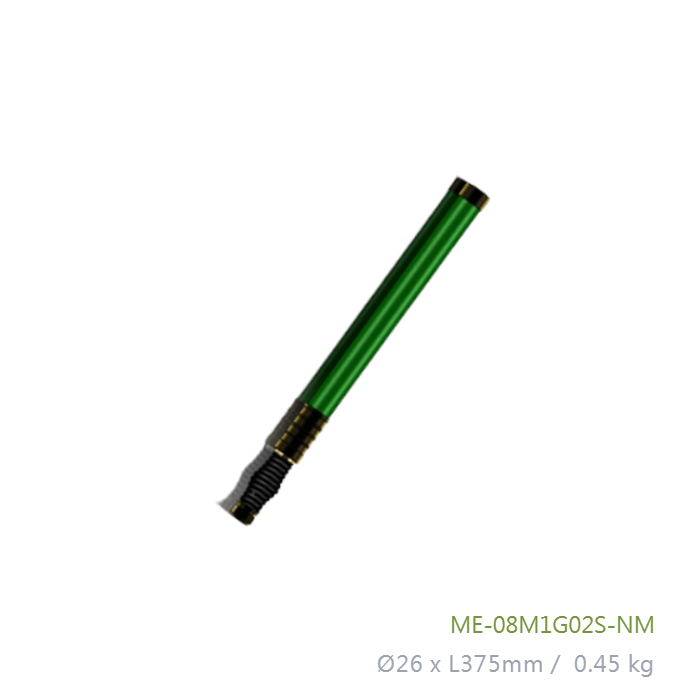

| Dimensions | Ø26 x L375 mm |
| Antenna Weight | 0.45 kg |
| Compliance | MIL-STD-810G / IP67 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
Sub-1GHz Efficiency
Optimized for the 800-1000 MHz band, offering superior wall penetration and signal diffraction in obstacle-heavy or urban theater environments.
Flexible Spring Base
Integrated heavy-duty spring protects the radio's RF port from torque and impact damage when moving through dense brush or confined spaces.
150W High Power Support
Specifically engineered to handle substantial heat dissipation for 150W continuous transmission, ensuring reliable Signal Security during long-range data links.
Battle-Proven Durability
Tested for extreme vibration and corrosion (96HR Salt Spray), ensuring structural integrity in humid, salt-rich, or high-impact combat zones.
Get a Quote / Customization
Contact us for custom connector adaptations or specific tactical camouflage color requirements.
