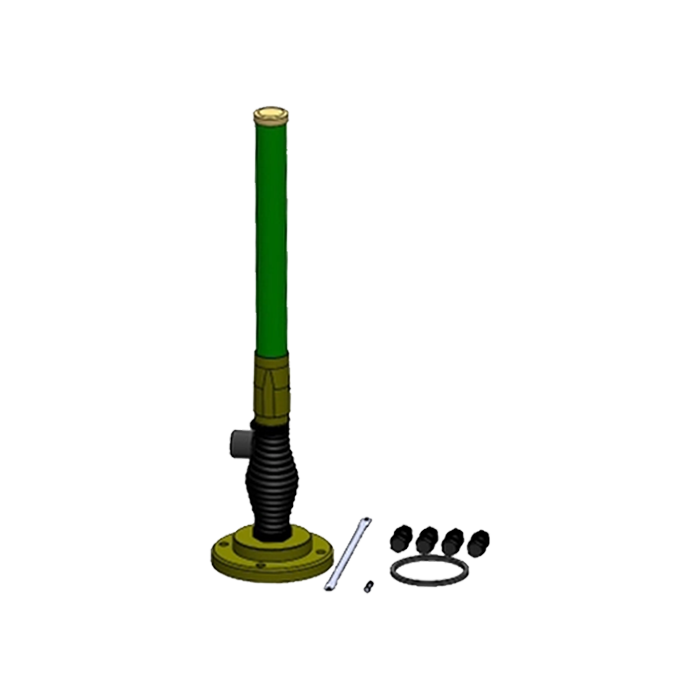

800MHz to 1000MHz 3dbi Vehicle Omnidirectional Signal Management antenna With Spring
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
800-1000 MHz Vehicular Signal Management Antenna
200W High Power | Rugged Spring Base | MIL-STD-810G | IP67
The 800-1000 MHz Vehicular Omnidirectional Antenna is a heavy-duty signal management solution engineered for high-power tactical applications. Featuring a robust shock-absorbing spring base, it is built to survive kinetic impacts during intense off-road maneuvers. With a high power handling capacity of 200 Watts (CW), this antenna is ideal for tactical Signal Defense, secure communications, and convoy Protection Operations. Fully compliant with MIL-STD-810G, it ensures mission-critical reliability in extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 800 MHz to 1000 MHz |
| Gain | 2 dBi |
| Maximum Power | 200 Watts (CW) |
| Beamwidth | H: 360° / V: 68° |
| V.S.W.R | ≤ 2.5 : 1 |
| Polarization | Vertical |
Mechanical & Environmental

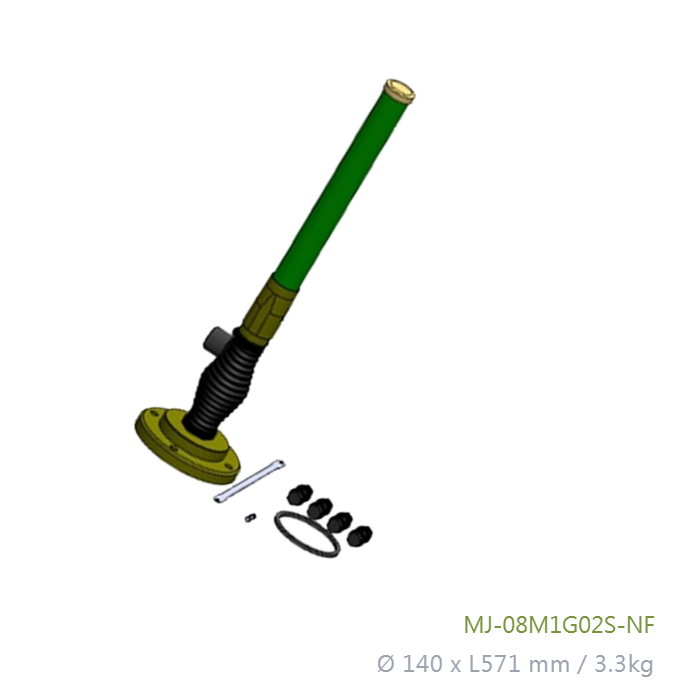

| Dimensions | Ø140 x 571 mm |
| Net Weight | 3.3 kg (Heavy Duty) |
| Waterproof Rating | IP67 Sealed Housing |
| Durability Tests | Vibration: 5.0G / Salt Spray: 96HR |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
Spring Loaded Base
Heavy-duty shock-absorbing spring mechanism protects the antenna mast from snapping when hitting low-hanging obstacles or navigating rough terrain.
200W High Power
Capable of sustaining 200W continuous wave power, making it the ideal solution for high-intensity Signal Security or mission-critical transmission.
MIL-810G & IP67
Fully certified for combat conditions: complete waterproofing (IP67), vibration resistance (5G), and salt-spray tested for 96 hours to ensure peak Signal Integrity.
Signal Management
Optimized for the 800-1000 MHz band, critical for managing cellular (GSM900) and UHF tactical communication signals in complex theater environments.
Get a Quote / Customization
Contact us for vehicle integration guides or custom color finishes for your tactical platform.
