TNC-Male to SMA-Female Gooseneck RF Adapter Cable (GA-C90-TM-SF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

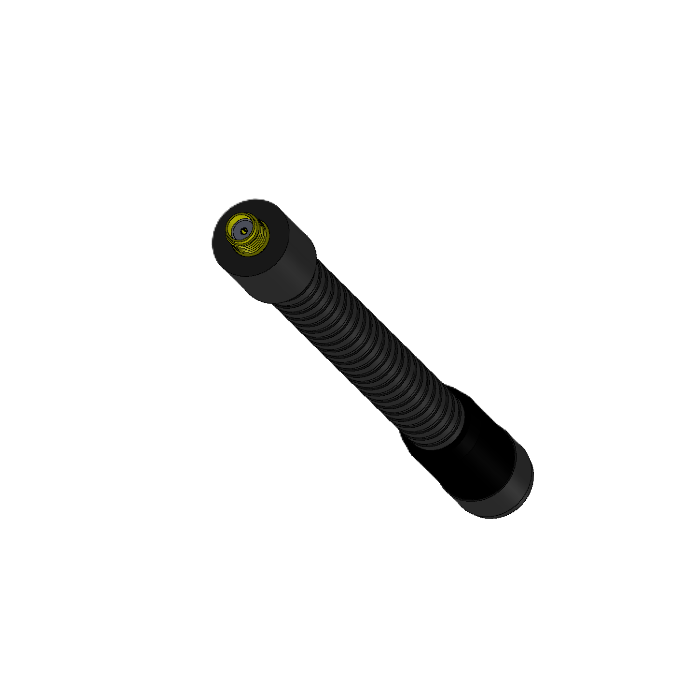

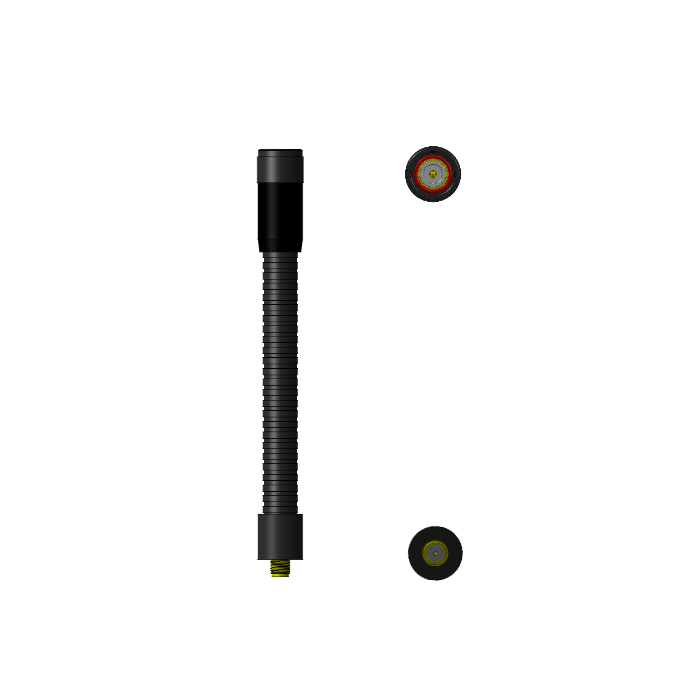

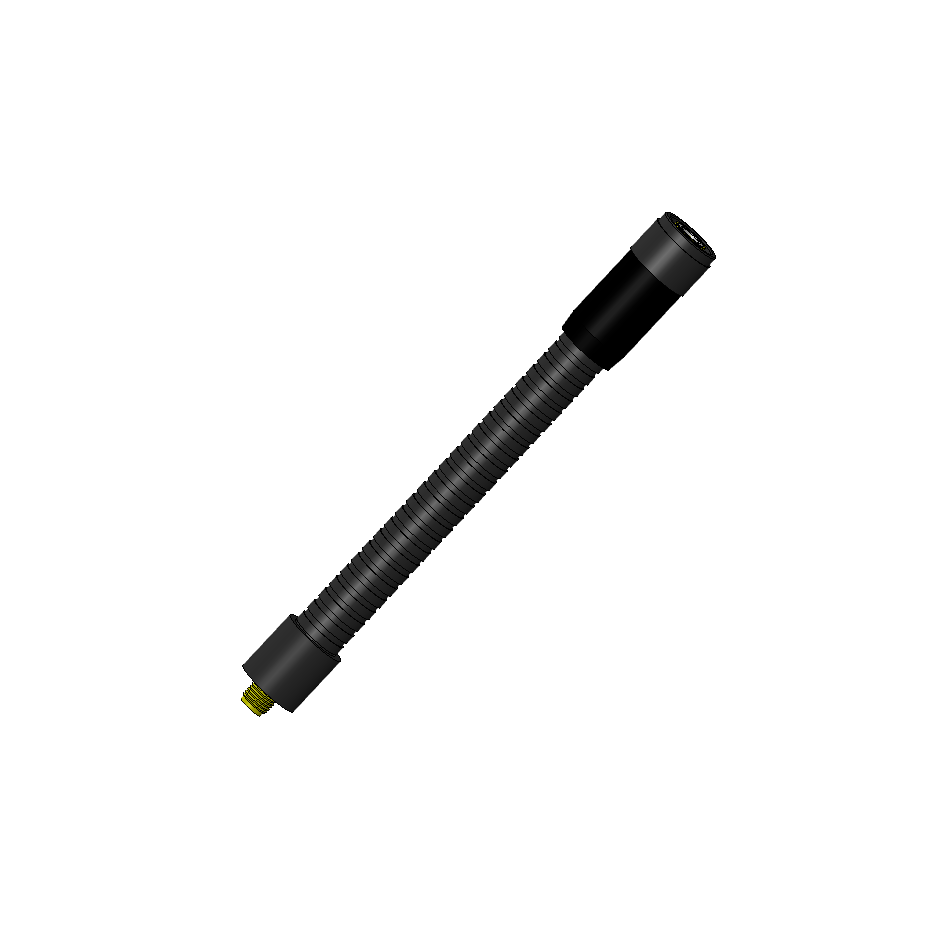

TNC-Male to SMA-Female Gooseneck RF Adapter Cable
Model: GA-C90-TM-SF | Flexible Gooseneck Design | Precision RF Assembly
The GA-C90-TM-SF is a high-performance flexible gooseneck RF adapter assembly featuring a TNC-Male connector on one end and an SMA-Female connector on the other. Engineered for versatile positioning and reliable signal transition, this component is ideal for tactical field communications, test setups, and equipment integration requiring adaptable cable routing.
Hardware Performance

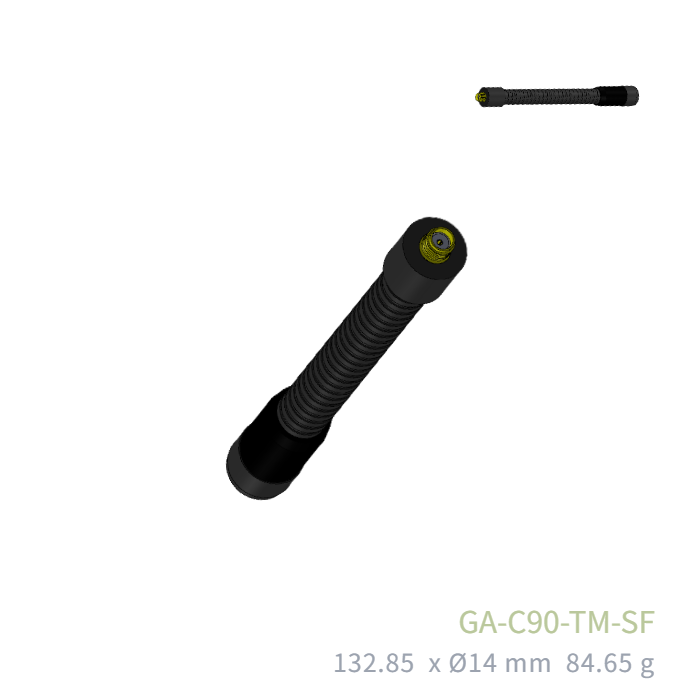

| Dimensions | Length: 132.85 mm (Gooseneck: 127.55 mm) / Diameter: 14.00 mm |
| Connectors | TNC-Male to SMA-Female |
| Estimated Weight | 84.65 g |
Software & Control
| Component Type | Gooseneck RF Adapter Cable |
| Series | GA-Series (Gooseneck for Connector) |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
Flexible Positioning
Equipped with a sturdy 127.55mm gooseneck structure, allowing easy angle adjustments and secure shape retention in complex deployments.
Precision Interfaces
Features industry-standard TNC-Male and SMA-Female connectors, ensuring low signal loss and reliable connection integrity.
Compact & Lightweight
Engineered for optimal portability with a lightweight build of approximately 84.65g, perfect for field operations and test benches.
Rugged Durability
Built with robust materials to withstand frequent bending and mechanical stress while maintaining electrical stability.
Contact FT-RF Engineering Division
Contact us for professional technical support or custom cable assembly options for your RF deployment system. Made in Taiwan.
