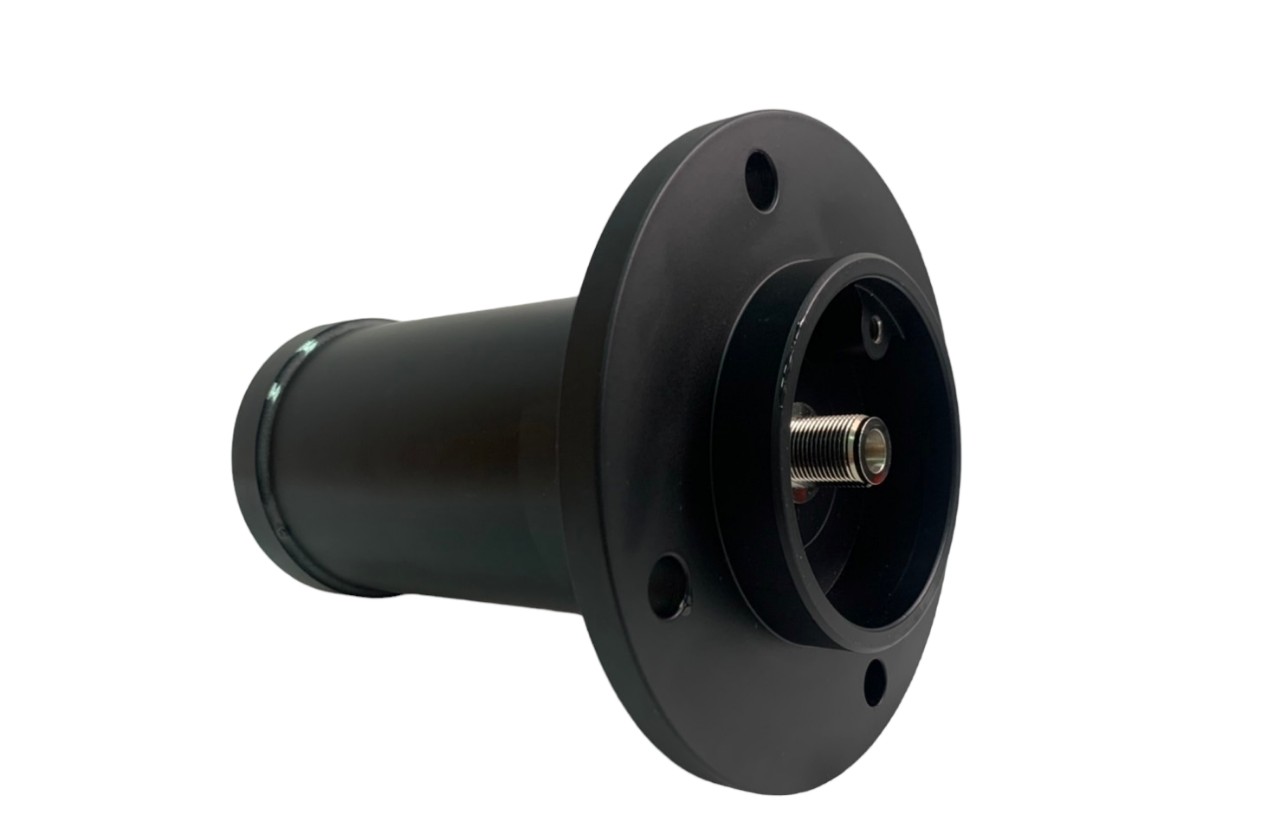

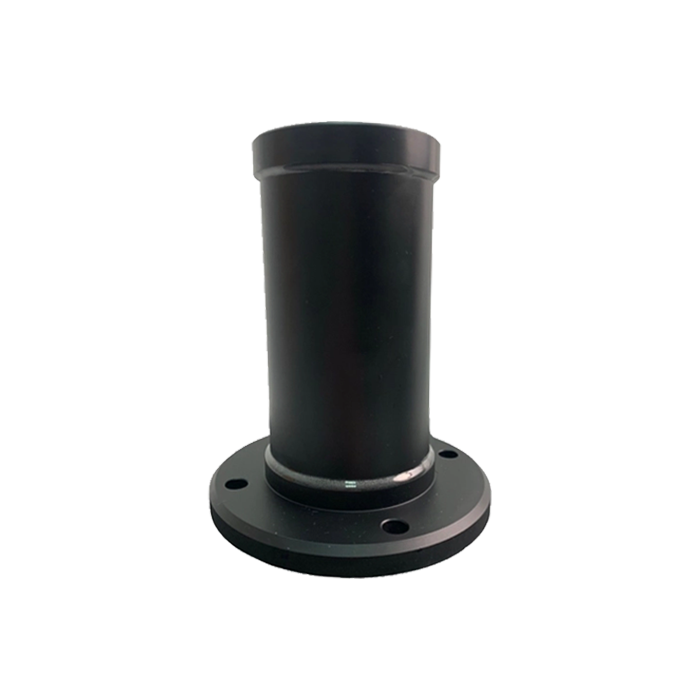

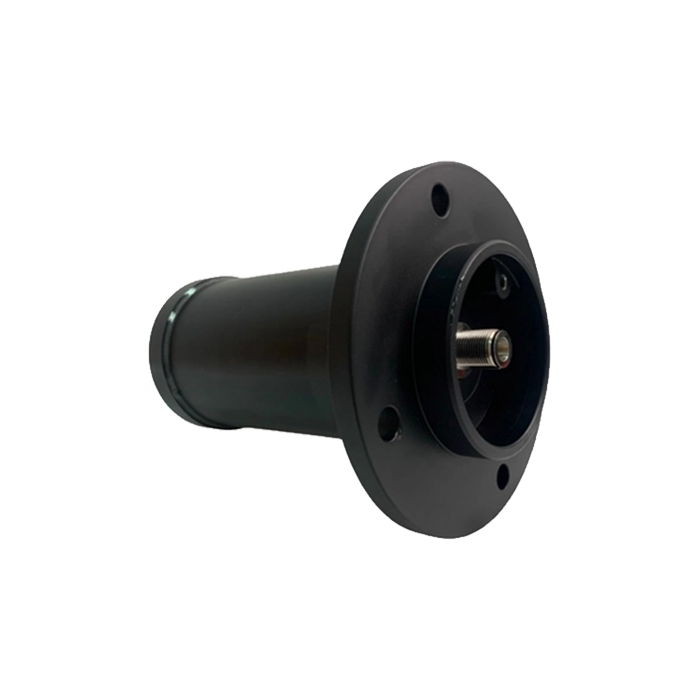

1.3 to 1.7 GHz 3dbi RHCP Quadrifilar Helix Antenna for Vehicles, N-Female Connector

1.3 to 1.7 GHz 3dbi RHCP Quadrifilar Helix Antenna for Vehicles, N-Female Connector

Model No: RQ-1550M03-NF

  • Frequency: 1.3 to 1.7 GHz
  • Gain: 3 dbi
  • Connector: N-Female
Quantity:
INQUIRY

  • Electrical Specifications

  • Mechanical Specifications

Frequency Range

1.3 – 1.7 GHz

 V.S.W.R

2:1

Antenna Type

Helix

Radiation

Omni-Directional

Gain

3 dbi

Polarization

RHCP

Maximum Power

N/A

-3db Vert. Beamwidth

61 deg

Impedance

50 Ohm

Connector

N-Female

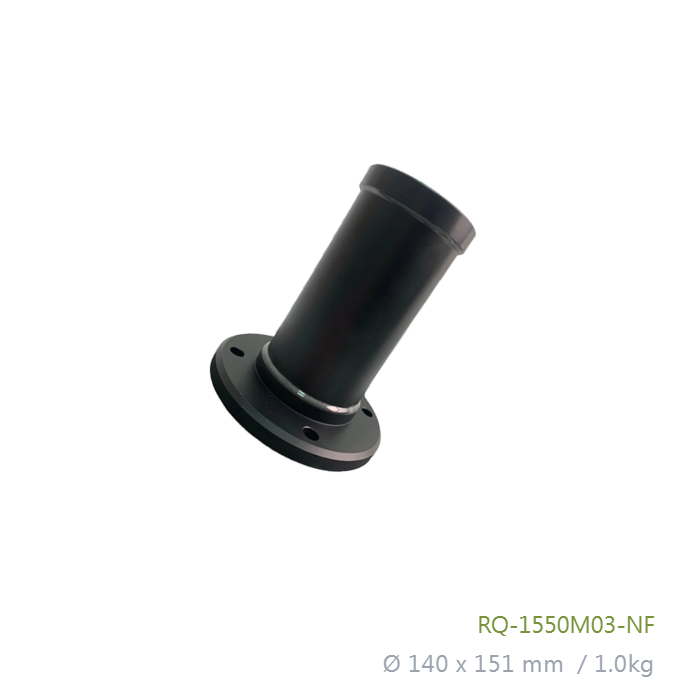

Dimension (WxL)

140x151mm

Weight

1.0 kg

Accessories

T3 Screw packages

Parts Material

Fiberglass, Aluminum

Application

Indoor/ Outdoor

Operating Temperature

(-)30 to +70°C

Operating Humidity

(-)30 to +70°C

Humidity

0 to 95% RH

Safety, Emission and other

RoHS, WEEE
