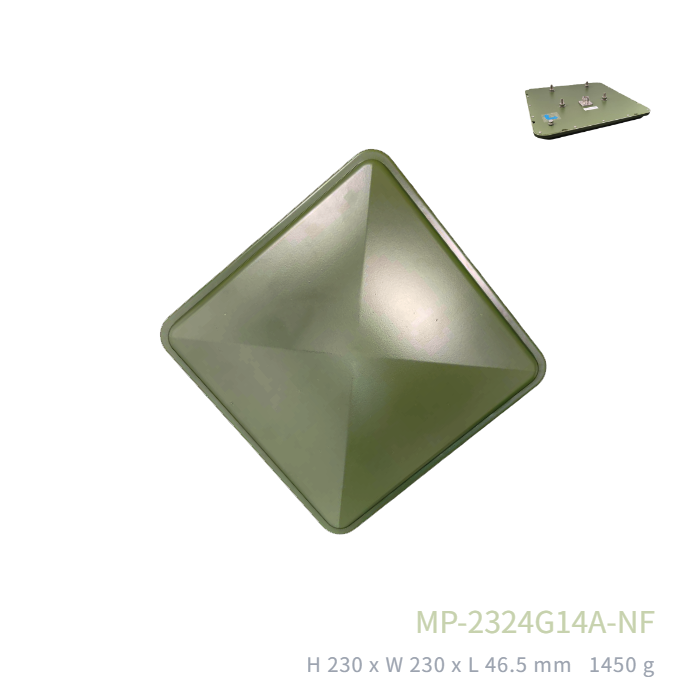

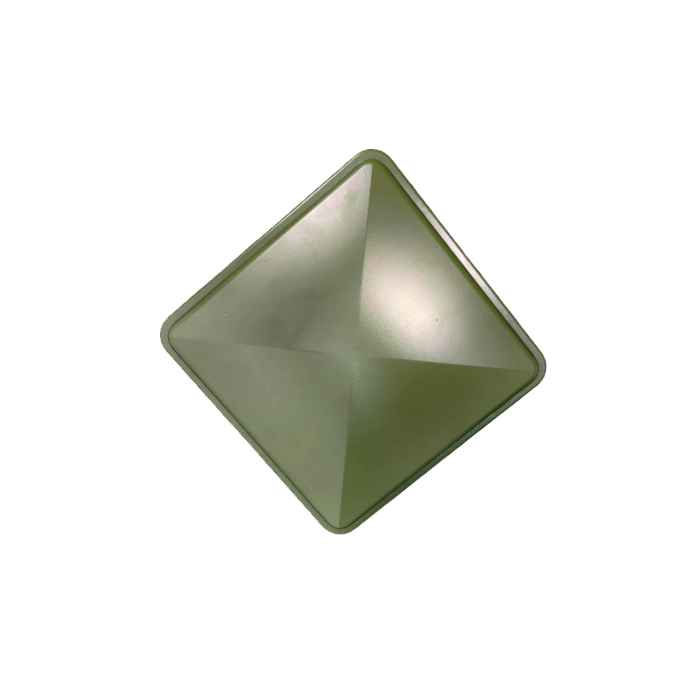

2.3GHz to 2.4GHz 14dBi High Power Panel Directional Outdoor N-Female Antenna (MP-2324G14A-NF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification
2.3GHz to 2.4GHz 14dBi High Power Panel Directional Outdoor N-Female Antenna
Model: MP-2324G14A-NF | High Power Design | N-Female Connector
The MP-2324G14A-NF is a high-performance 2.3GHz to 2.4GHz panel directional outdoor antenna engineered for wireless communication and network coverage. Delivering a robust 14 dBi gain with narrow E-plane and H-plane beamwidths, this antenna ensures precise directional signal propagation. Built with an aluminum die-casting mounting bracket (MO-Q1) and IP67 waterproof rating, it guarantees exceptional mechanical reliability in demanding outdoor environments.
Hardware Performance

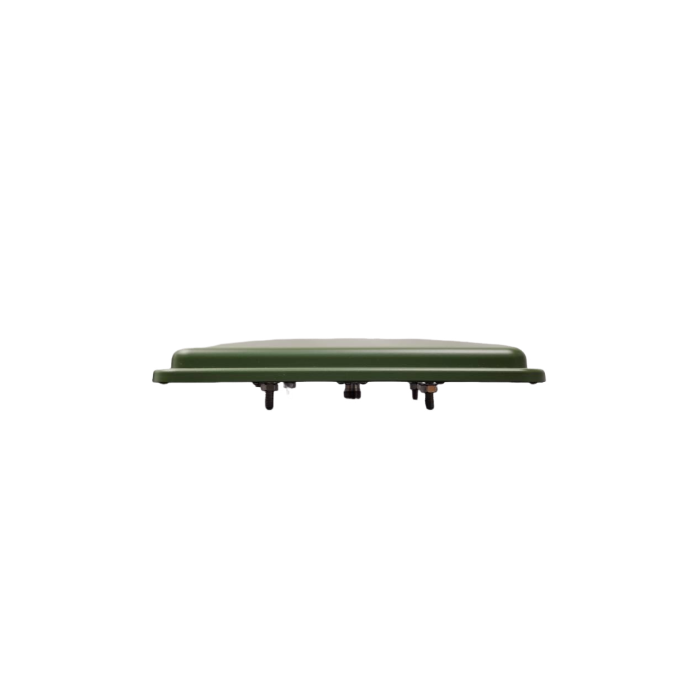

| Dimensions | H 230 x W 230 x L 46.5 mm |
| Weight | 1450 g |

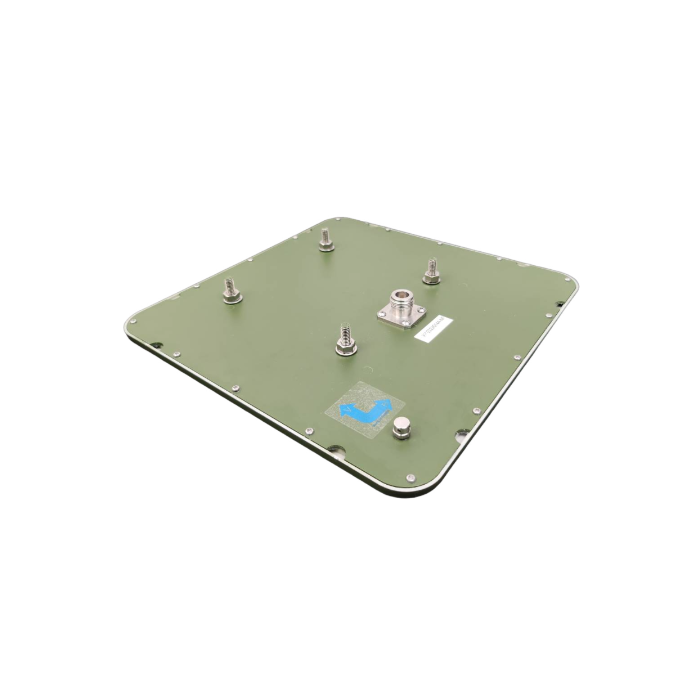

| Connector | N-Female |

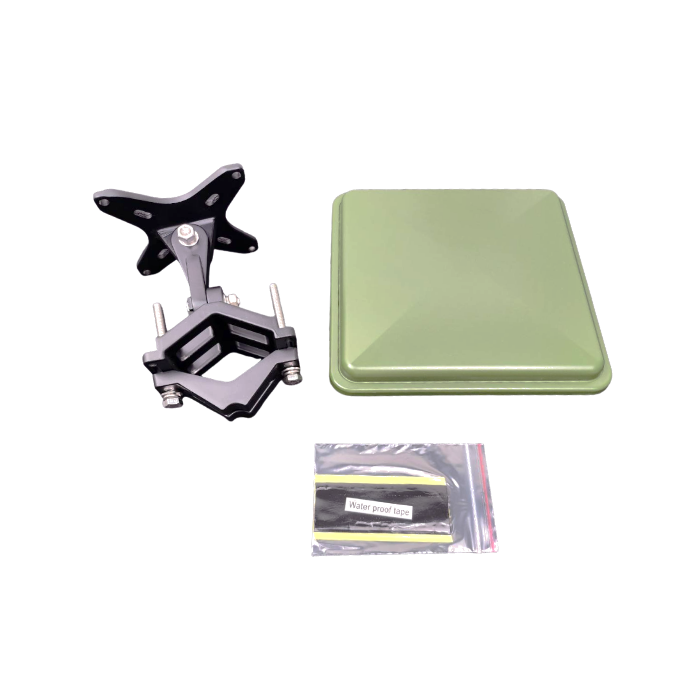

| Mounting Bracket | MO-Q1 (Aluminum Die Casting) |

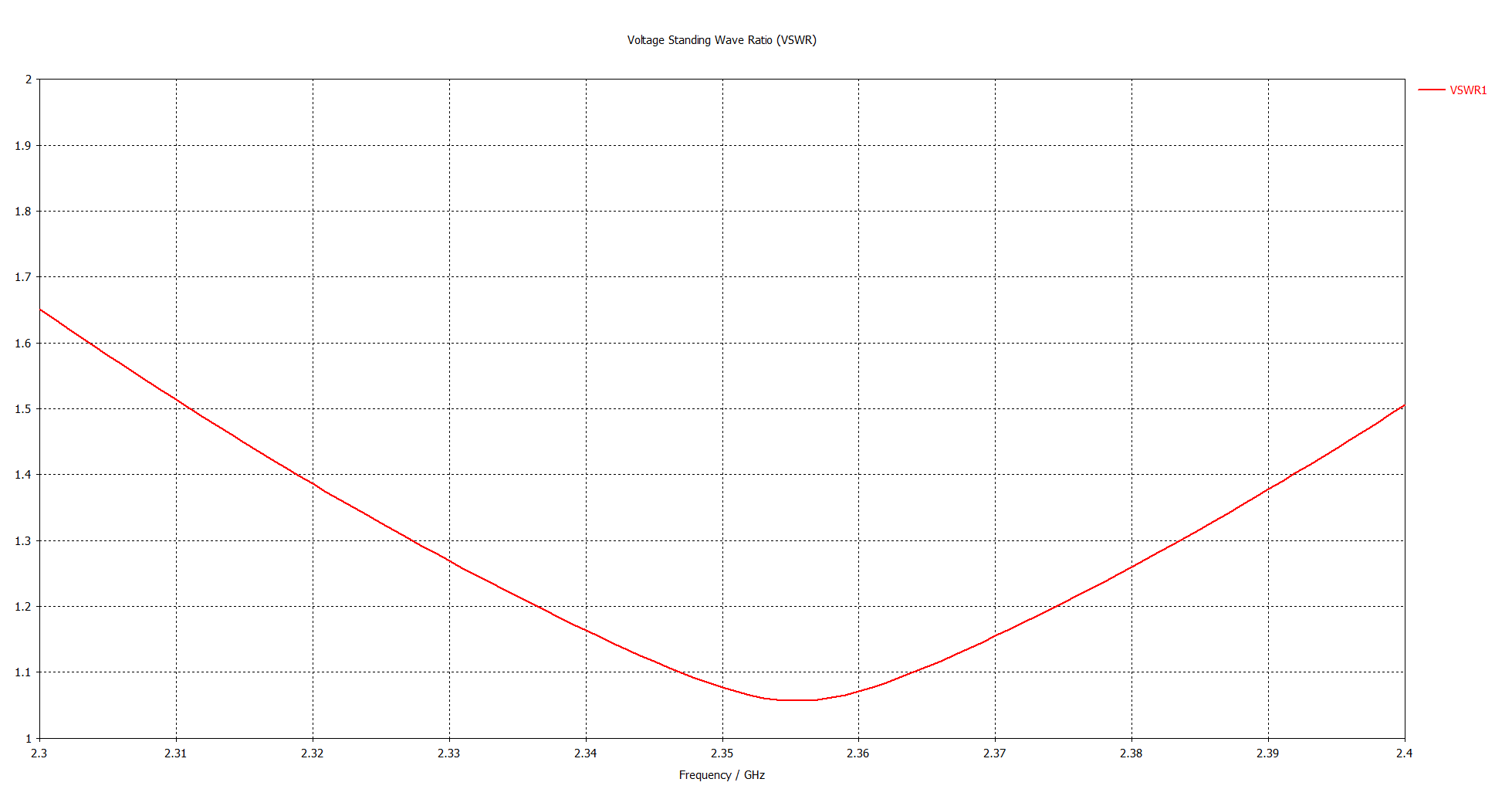

| V.S.W.R. | < 2.0:1 |
| Waterproof Rating | IP67 |
Software & Control
| Frequency Range | 2.3 GHz to 2.4 GHz |

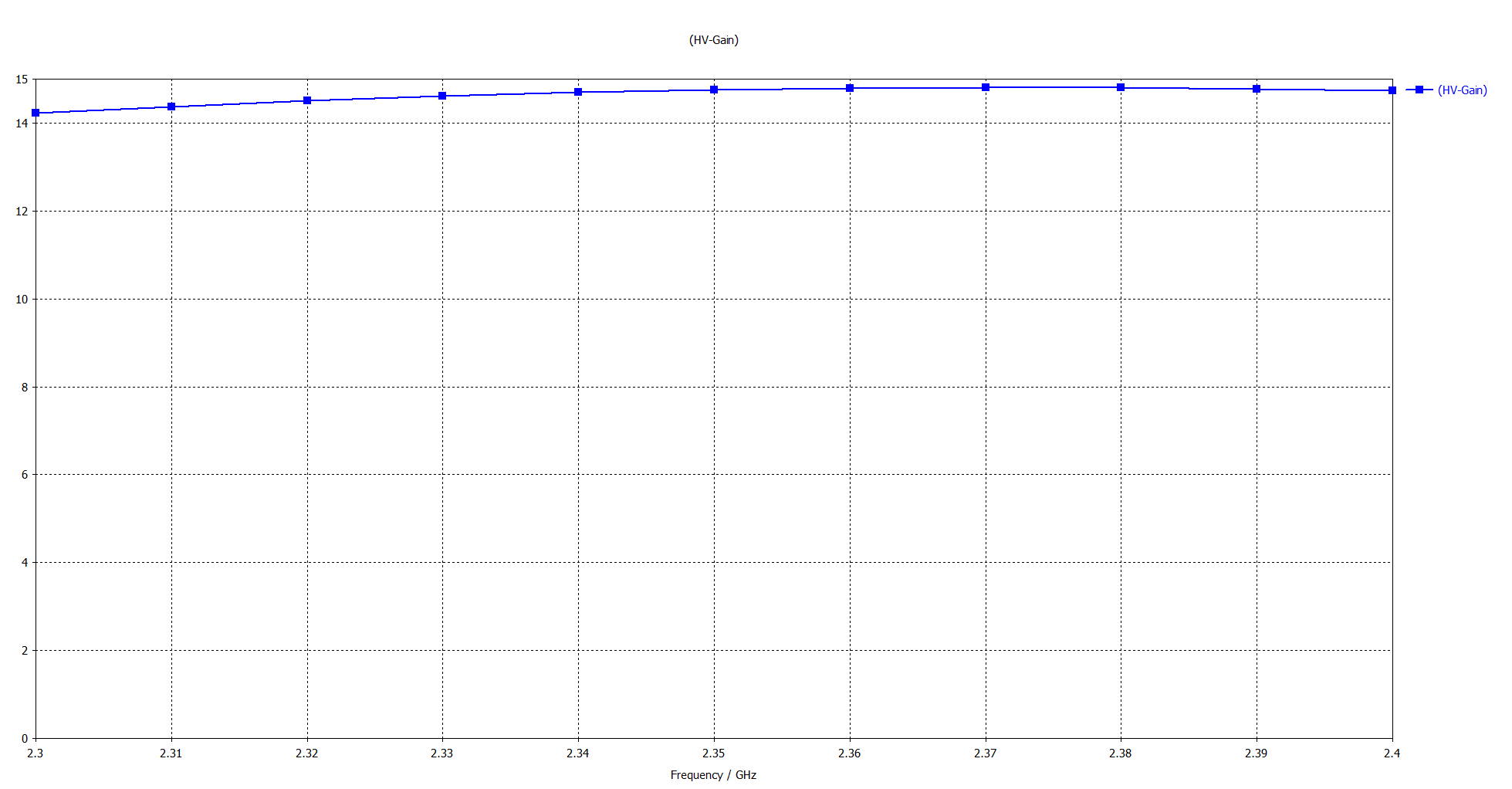

| Gain (Min) | 14 dBi |
| AVG Power | 250 W |
| -3dB Beamwidth (H-Plane) | 34° |
| -3dB Beamwidth (E-Plane) | 31° |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
High Precision Control
Delivers a stable directional gain of 14dBi across the 2.3GHz to 2.4GHz spectrum, ensuring exceptional signal focusing and long-range link quality.
Rugged Reliability
Constructed with durable aluminum die-casting and IP67 waterproof protection, providing superior structural strength in severe outdoor environments.
Versatile Integration
Features an industry-standard N-Female connector and the robust MO-Q1 mounting bracket for flexible installation and angle adjustment.
High Load Capacity
Engineered to withstand high power up to 250W with an optimized V.S.W.R. (< 2.0:1), ensuring reliable performance under heavy operational demands.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
