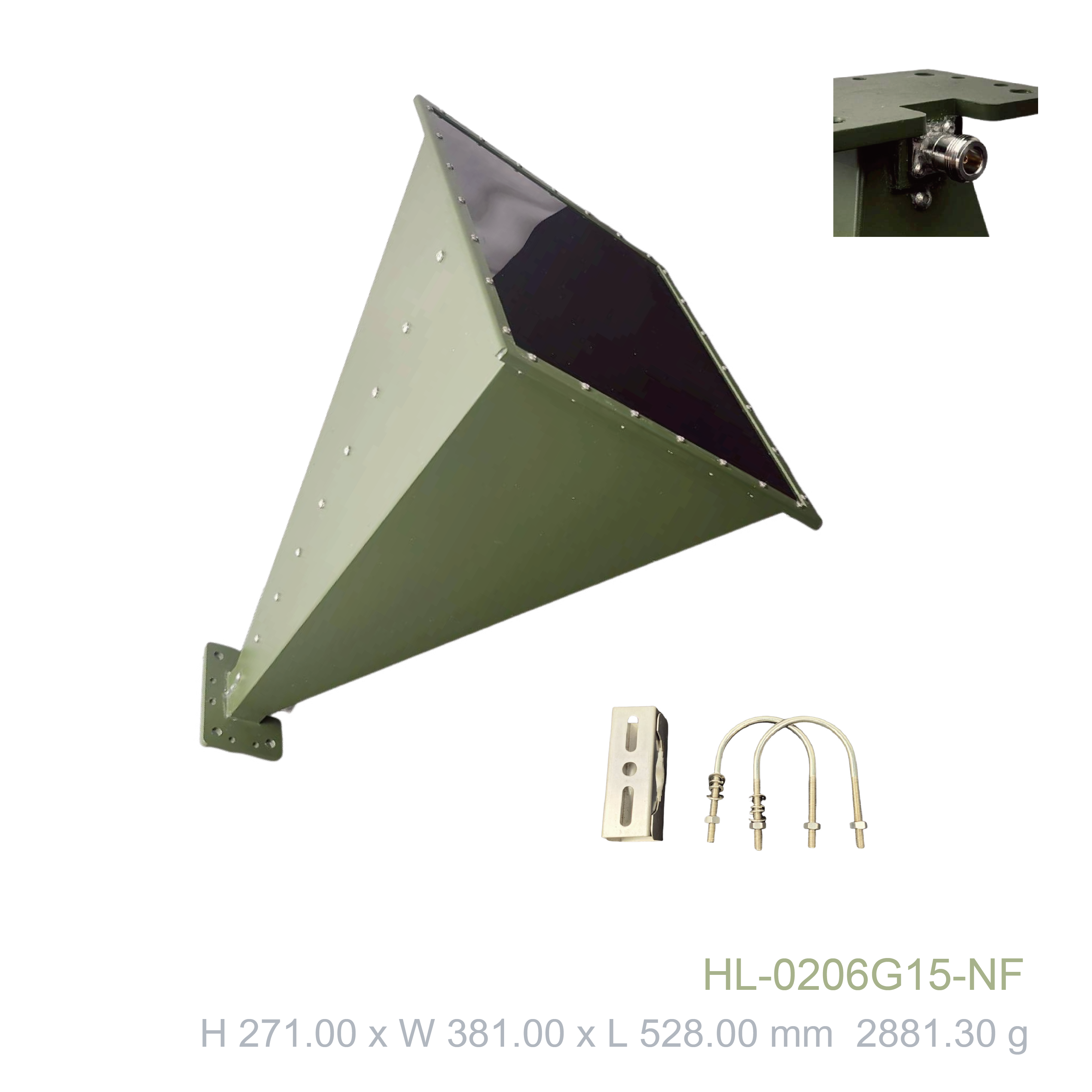

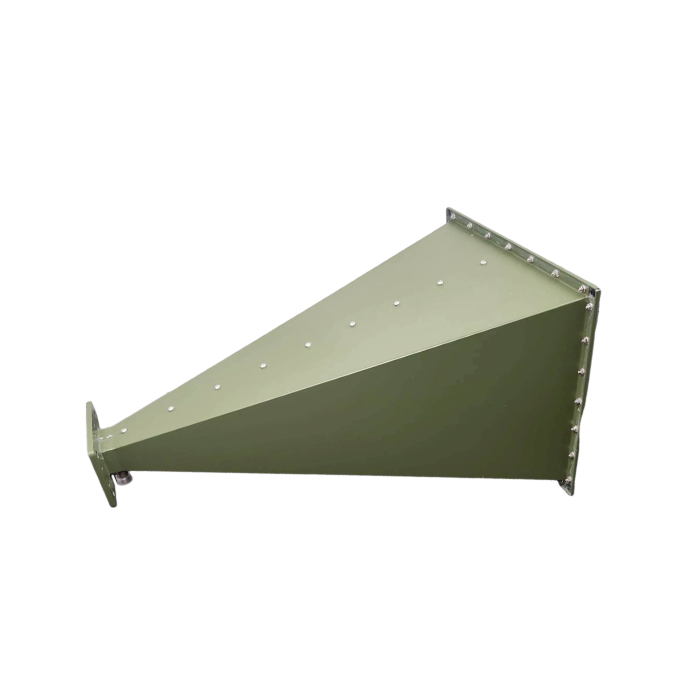

1.1GHz to 8GHz 15dBi High Power Double-Ridged Horn Antenna
Model: HL-0206G15-NF | High Power 125W CW / 350W Peak | IP54 Weatherproof
The HL-0206G15-NF is an ultra-wideband double-ridged horn antenna engineered for demanding microwave applications across 1.1 GHz to 8 GHz. Providing high directional gain from 10 to 20 dBi (nominal 15 dBi) and high-power endurance of up to 125W CW (350W Peak), this antenna is tailored for EMC/EMI compliance testing, spectrum monitoring, electronic warfare (EW), and radar simulation. Equipped with an IP54-rated ruggedized enclosure and an AISI 304 stainless steel MO-A5 mounting kit, it guarantees exceptional RF fidelity and mechanical resilience.
Hardware Performance

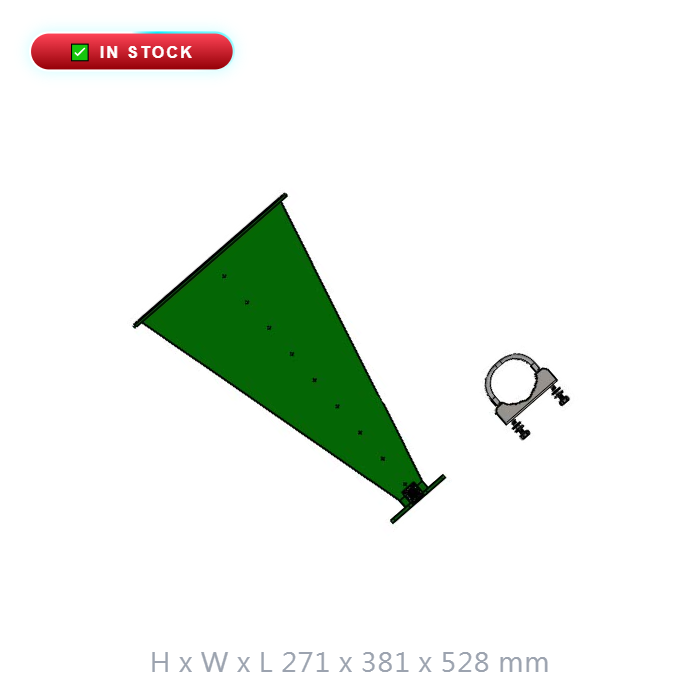

| Dimensions (Antenna) | H 271.00 x W 381.00 x L 528.00 mm |
| Antenna Length (Depth) | 527.20 mm |
| Weight (Antenna Only) | 2881.30 g (~2.88 kg) |
| Total Assembly Weight | Approx. 3.40 kg (3254.21 g w/ Mount) |

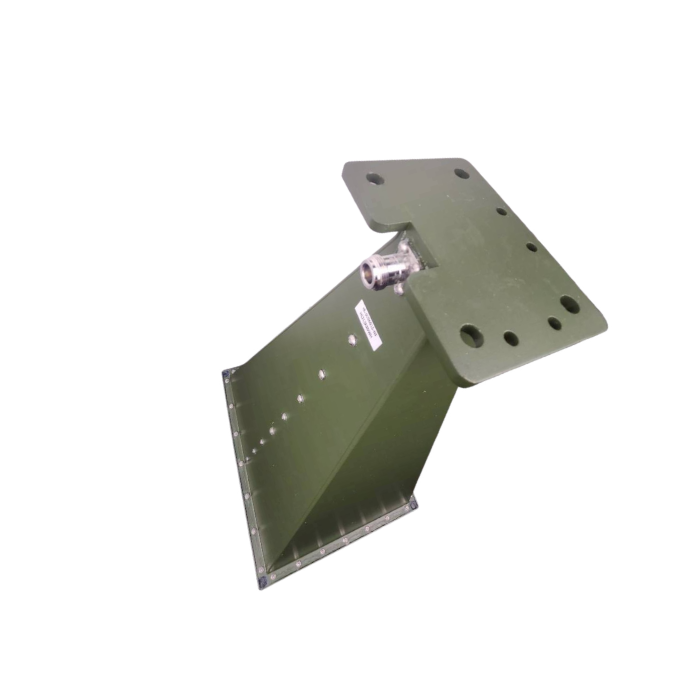

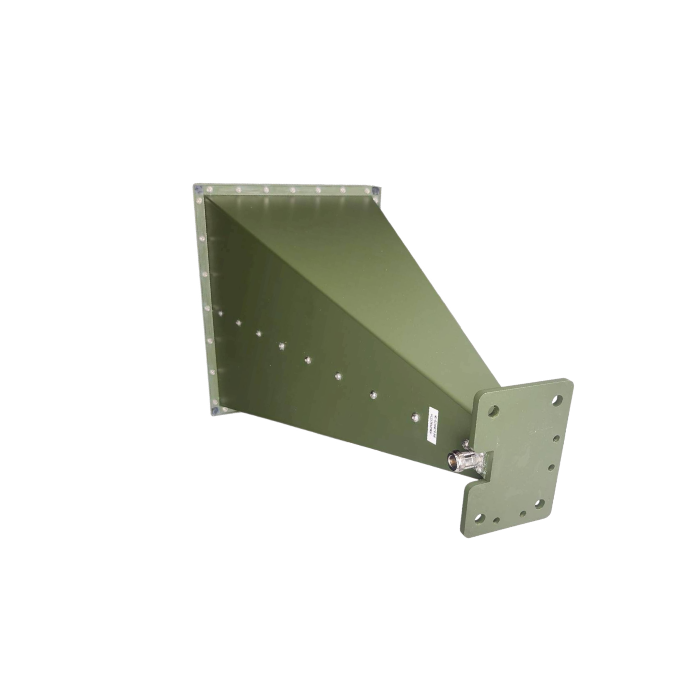

| RF Connector | N-Female (Stainless Steel / SUS) |

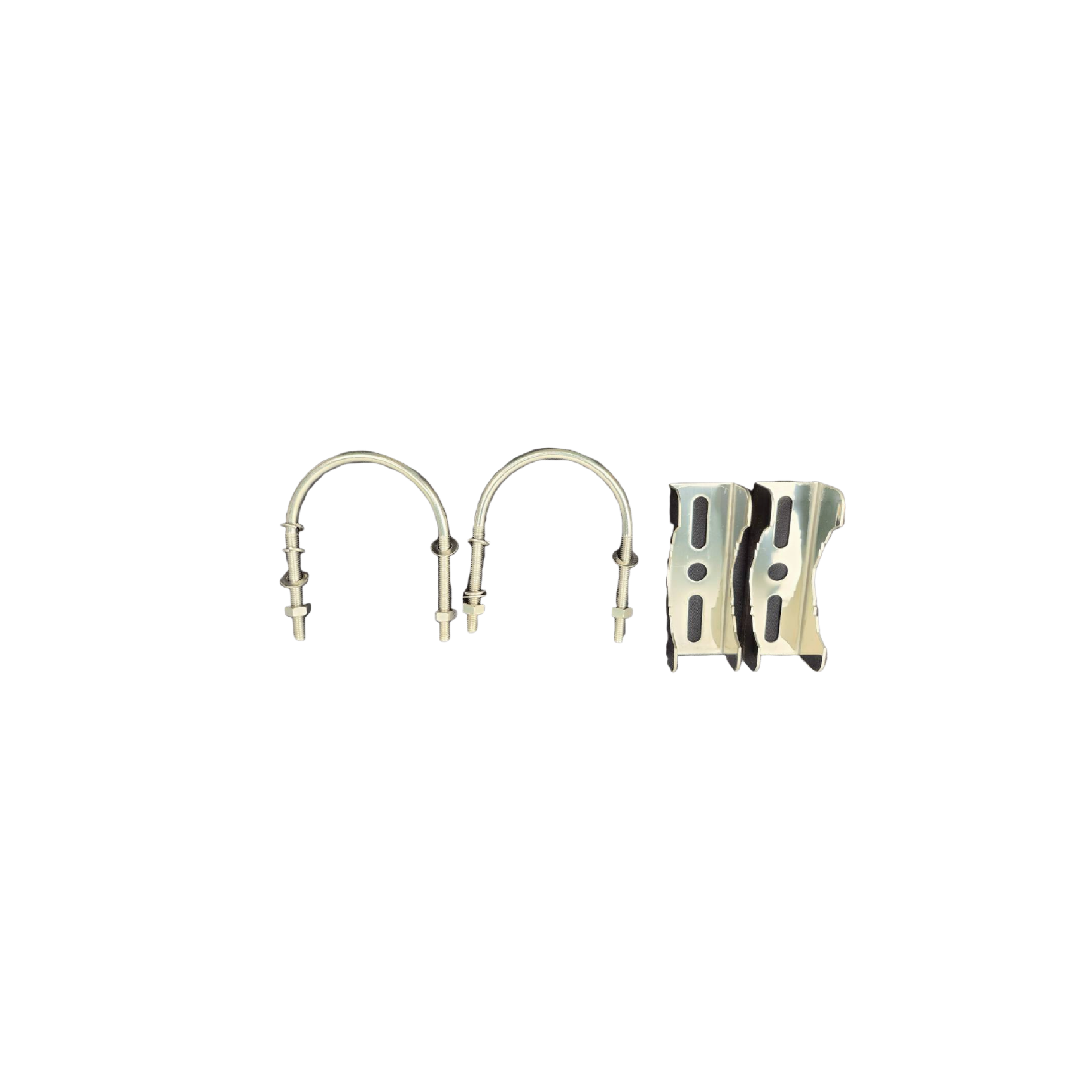

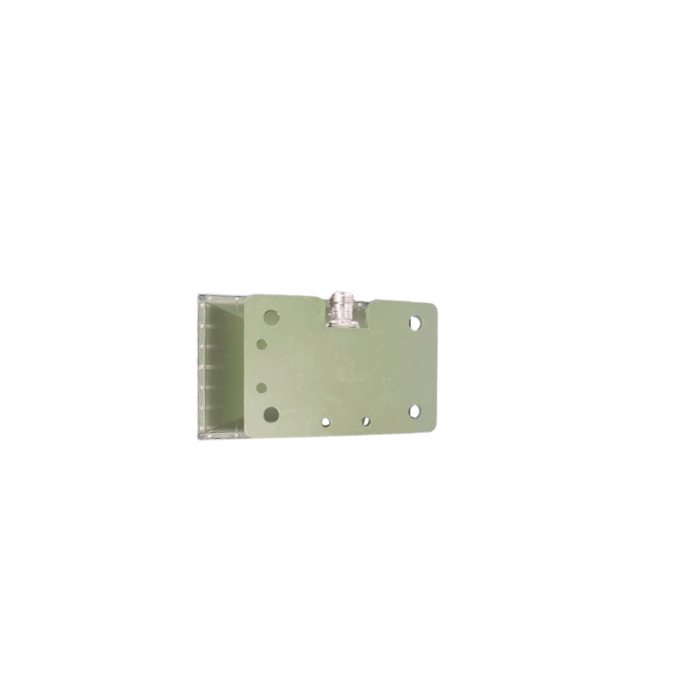

| Mounting Bracket | MO-A5 (3-inch AISI 304 Stainless Steel U-Bolt Kit) |
| Weatherproof Rating | IP54 Protected |
| Construction Material | Military Green Treated Horn Body & AISI 304 Hardware |
RF & Electrical Performance
| Frequency Range | 1.1 GHz to 8.0 GHz |
| Nominal Gain | 15 dBi (10 to 20 dBi across band) |
| VSWR | Typical 2.5:1 |
| Maximum Power (CW) | 125 W @ 8 GHz |
| Peak Power Handling | 350 W |
| Antenna Type | High Power Double-Ridged Horn Antenna |
| Origin | Made in Taiwan (FT-RF Design) |
Key Design & Feature Highlights
High Directional Gain
Provides consistent high gain from 10 to 20 dBi (15 dBi nominal) from 1.1 to 8GHz, ideal for long-range microwave links and high-field EMC generation.
High Power Capability
Supports up to 125W Continuous Wave (CW) at 8GHz and 350W peak power, accommodating rigorous immunity testing and EW transmission demands.
IP54 Weatherproof Defense
Constructed with an IP54 environmental protection rating and ruggedized radome seal, preventing moisture, dust, and particulate ingress.
Heavy-Duty Mast Mount
Includes the MO-A5 heavy-duty AISI 304 stainless steel 3-inch U-bolt mounting bracket, delivering rock-solid position retention on test towers.
