400MHz to 7.125GHz 3dBi Wideband Monopole Vehicle Antenna with N-Female Connector (MJ-04M07G03M-NF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification
400MHz to 7.125GHz 3dBi Wideband Monopole Vehicle Antenna
Model: MJ-04M07G03M-NF | Monopole Vehicle Mount | N-Female | MIL-STD-810G
The MJ-04M07G03M-NF is a high-reliability ultra-wideband monopole vehicle antenna engineered for tactical communications, mobile transceivers, and wireless telemetry spanning 400MHz to 7.125GHz. Featuring a low-profile ruggedized radome (Dia. 78.00 mm x H 141.00 mm), precision 6-hole flange base with included green silicone gasket, and standard N-Female interface, it delivers stable 3dBi omnidirectional coverage and complies with MIL-STD-810G shock and vibration specifications. Designed and manufactured in Taiwan by FT-RF.
Hardware Performance

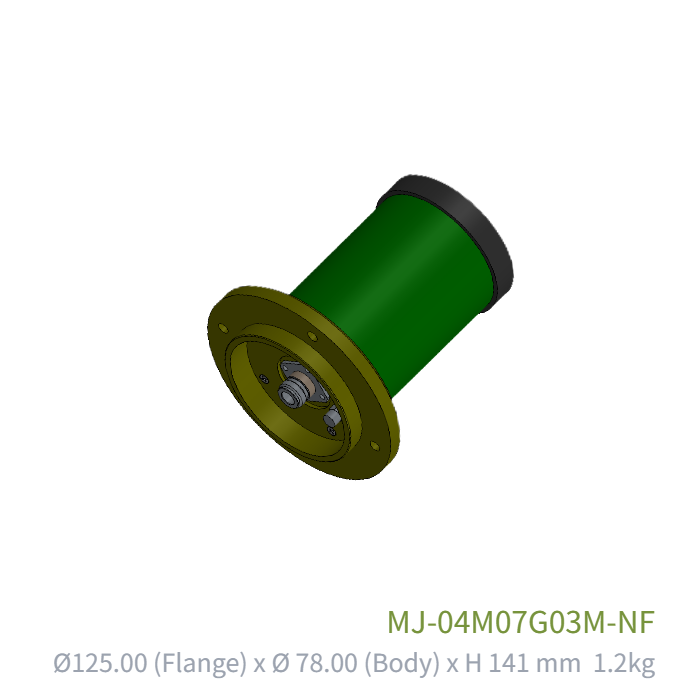

| Dimensions | Dia. 125.00 (Flange) x Dia. 78.00 (Body) x H 141.00 mm |
| Weight | 1.2 kg (1197.68 g Estimated CAD Total) |
| Connector | N-Female (50 Ohm) |

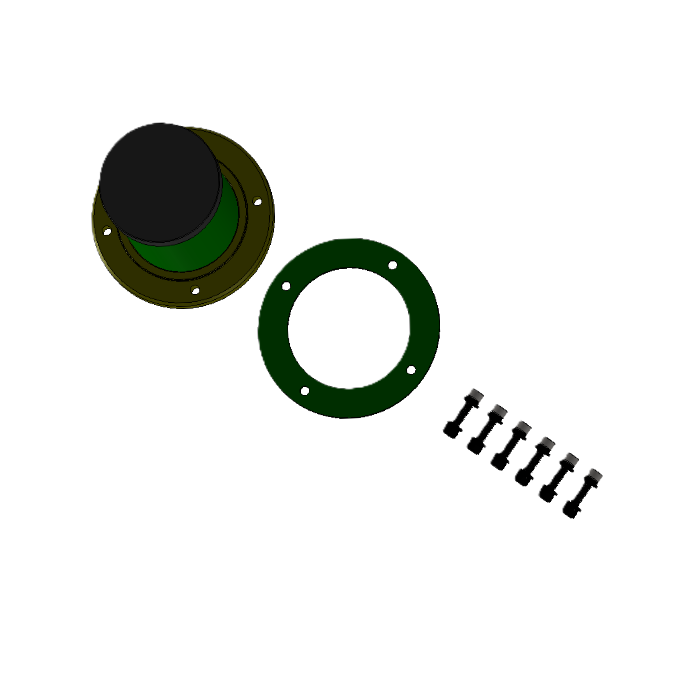

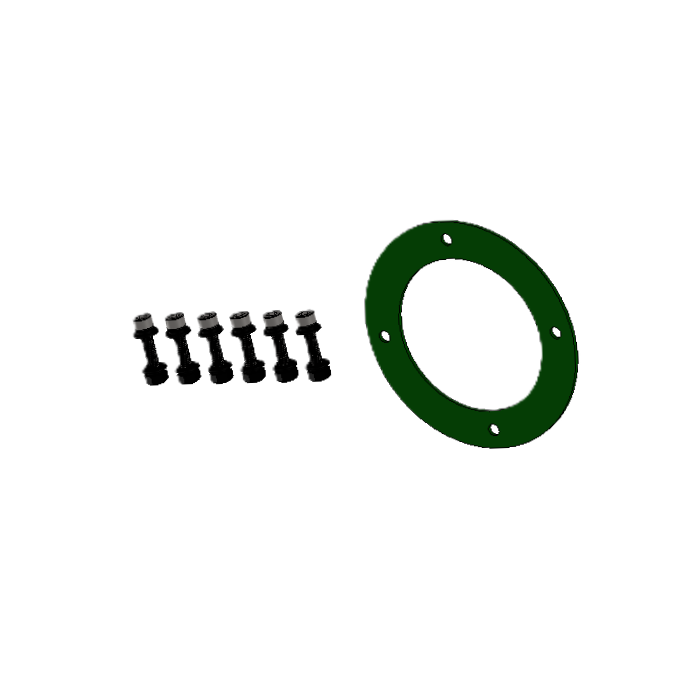

| Mounting Bracket | 6-Hole PCD 105mm Vehicle Base w/ Green Silicone Gasket & M6 Screws |
| Antenna Length (Body) | 141.00 mm (Radome Body Height: 121.00 mm) |
| Hardware Material | Weatherproof Composite Radome & AISI 304 Stainless Steel Hardware |
Software & Control
| Frequency Range | 400 MHz to 7.125 GHz (Continuous Ultra-Wideband) |
| Gain | 3 dBi (Nominal Peak) |
| Antenna Type | Ultra-Wideband Monopole Vehicle Antenna |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
High Precision Control
Delivers continuous ultra-wideband coverage from 400MHz to 7.125GHz with horizontal 360° omnidirectional radiation for mission-critical mobile communications.
Rugged Reliability
Fully compliant with MIL-STD-810G shock and vibration requirements, featuring 96-hour salt spray rated AISI 304 hardware and heavy-duty radome.
Versatile Integration
Low-profile 141mm height with standard 6-bolt PCD 105mm flange pattern and included silicone sealing gasket enables rapid, watertight vehicular deployment.
High Load Capacity
High-durability internal monopole radiator handles elevated RF transmit power with consistent impedance matching across harsh environmental extremes.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
