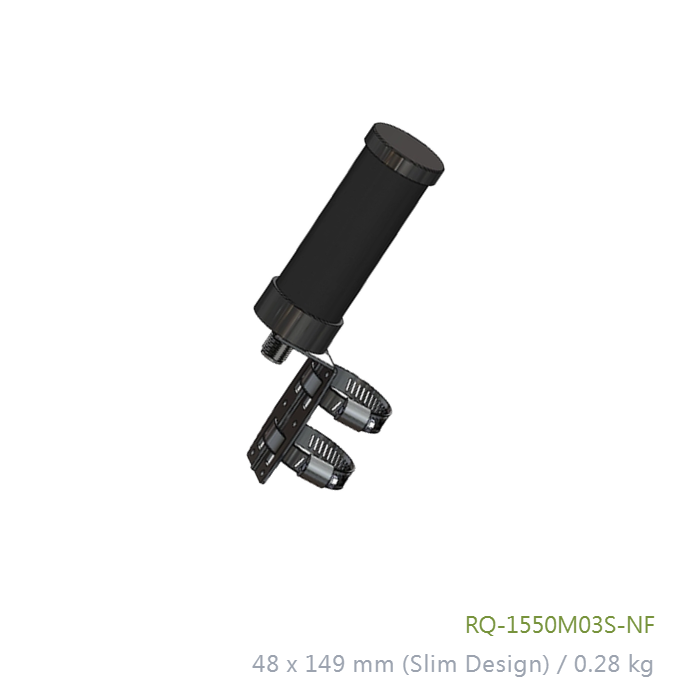

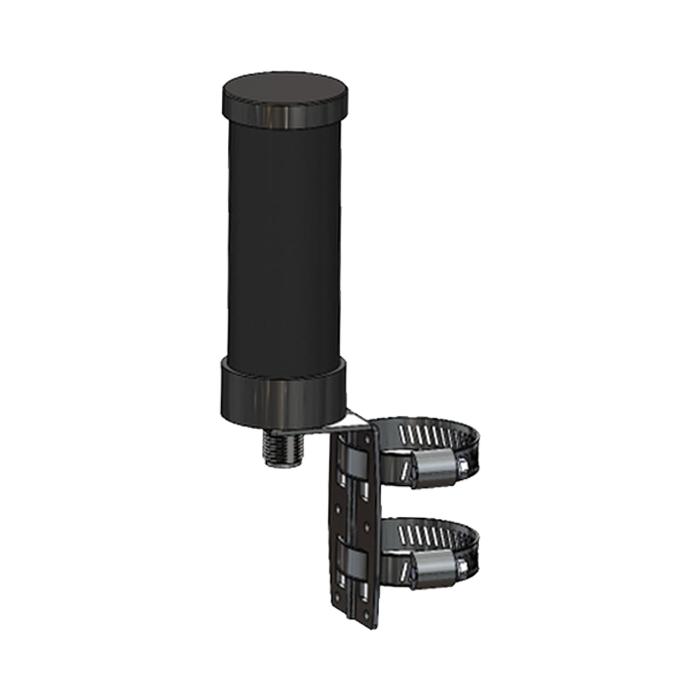

1.3 to 1.7 GHz 3dbi RHCP Quadrifilar Helix Outdoor Antenna, N-male connector, 46mm Stainless steel ring L-Type Bracket

1.3 to 1.7 GHz 3dbi RHCP Quadrifilar Helix Outdoor Antenna, N-male connector, 46mm Stainless steel ring L-Type Bracket

Model No: RQ-1550M03S-NF

Technical Specifications equency Range 1.3 – 1.7 GHz  V.S.W.R 2:1 Antenna Type Helix Radiation Omni-Directional Gain 3 dbi Polarization RHCP Maximum Power   -3db Horz. Beamwidth 360 deg -3db Vert. Beamwidth 120 deg Impedance 50 Ohm Connector N-Male Mechanical Specifications Dimension (WxL) 48x149mm Weight 0.28 kg Accessories 46mm stainless steel ring, L-type bracket Parts Material Fiberglass, Aluminum Application Indoor/ Outdoor Operating Temperature (-)30 to +70°C Operating Humidity (-)30 to +70°C Humidity 0 to 95% RH Safety, Emission and other RoHS, WEEE
Quantity:
INQUIRY

  • Technical Specifications

  • Mechanical Specifications

equency Range

1.3 – 1.7 GHz

 V.S.W.R

2:1

Antenna Type

Helix

Radiation

Omni-Directional

Gain

3 dbi

Polarization

RHCP

Maximum Power



-3db Horz. Beamwidth

360 deg

-3db Vert. Beamwidth

120 deg

Impedance

50 Ohm

Connector

N-Male

Dimension (WxL)

48x149mm

Weight

0.28 kg

Accessories

46mm stainless steel ring, L-type bracket

Parts Material

Fiberglass, Aluminum

Application

Indoor/ Outdoor

Operating Temperature

(-)30 to +70°C

Operating Humidity

(-)30 to +70°C

Humidity

0 to 95% RH

Safety, Emission and other

RoHS, WEEE
