1.6 to 1.8GHz large power 8dbi Directional Panel antenna
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
1.6GHz to 1.8GHz 8dBi Directional Panel Antenna

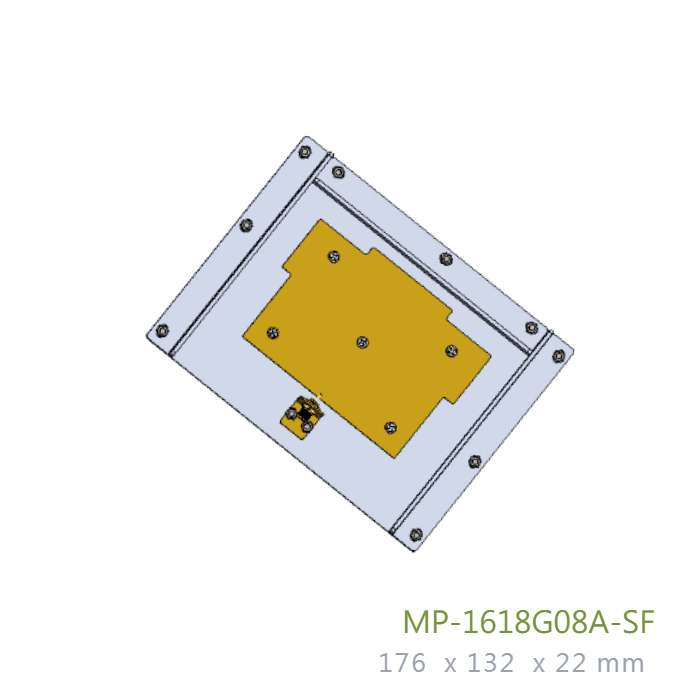

Model: MP-1618G08A-SF | 100W High Power | Directional Patch Design
The MP-1618G08A-SF is a high-performance directional panel antenna engineered for demanding wireless applications in the 1.6-1.8 GHz frequency range. Featuring a robust design and a high power handling capacity of up to 100W, this antenna provides reliable signal transmission for specialized communication systems and military-grade field operations.
Technical Specifications
Electrical Performance
| Frequency Range | 1600 MHz to 1800 MHz |
| Gain | 8 dBi |
| Beamwidth (-3dB) | V: 52° / H: 48° |
| Max Power | 100W |
| Connector | SMA-Female |
Mechanical Specifications
| Dimensions (W x H) | 176.00 mm x 132.00 mm |
Professional Features
High Power Handling
Engineered to withstand up to 100W of power, ensuring reliable performance in high-demand signal environments.
Directional Precision
Optimized for directional coverage with a focused beamwidth (V: 52°, H: 48°), ideal for point-to-point or sectorized applications.
Robust Design
Developed specifically for military and professional field use, focusing on structural durability and operational consistency.
Expertly Engineered
Designed and manufactured by FT-RF with a legacy of providing high-quality microwave patch antenna solutions.
Get a Quote / Customization
Contact us for professional inquiries, custom modifications, or bulk procurement. Proudly Made in Taiwan.
