1.6GHz to 1.8GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male Design
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

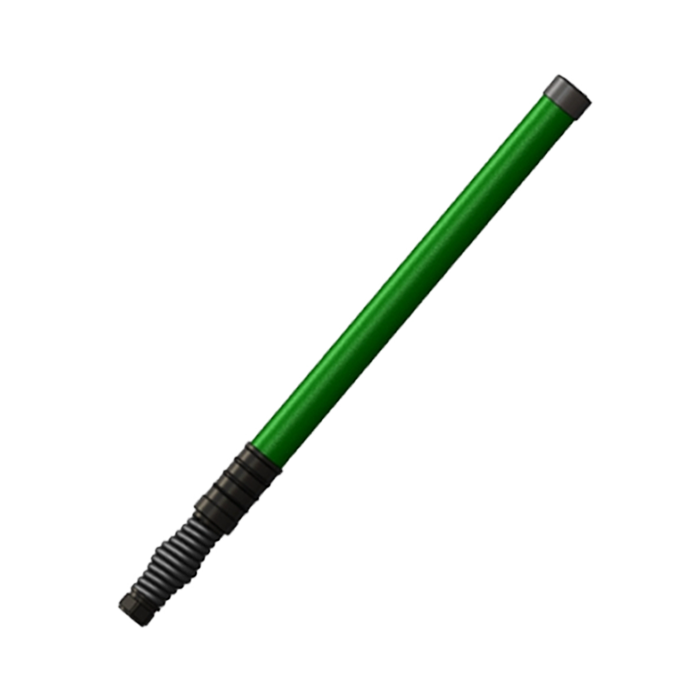

1.6-1.8 GHz 120W High-End Tactical Manpack Antenna
ME-1618G05AS-NM | Heavy-Duty Spring Base | 120W CW | MIL-STD-810G
The ME-1618G05AS-NM is a professional-grade Tactical Manpack Antenna engineered for mission-critical operations requiring high-power handling in the 1.6 GHz to 1.8 GHz spectrum. Delivering a robust 120 Watts (CW) power capacity, this radiator is optimized for advanced infantry radios and Signal Management systems. Featuring a specialized Heavy-Duty Spring Base, it ensures mechanical survival and link dominance in hostile environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1.6 - 1.8 GHz |
| Gain | 5 dBi |
| Maximum Power | 120 Watts (Continuous Wave) |
| Vertical Beamwidth | 54° (-3dB Elevation) |
| Impedance | 50 Ohm |
| Connector | N-Male |
Mechanical & Environmental

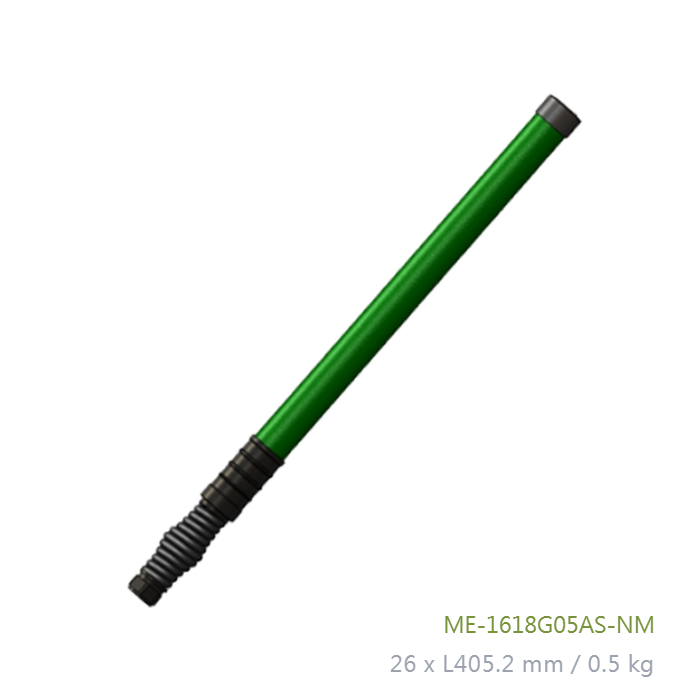

| Dimensions | 26 x L405.2 mm |
| Weight | 0.5 kg (Ultra-lightweight) |
| Waterproof Rating | IP67 Rated Sealing |
| Military Standard | MIL-STD-810G Compliant |
| Temperature Range | -40°C to +120°C |
| Testing Standards | 5.0G Vibration / 96H Salt Spray |
Key Tactical Features
Rugged Shock Spring Base
Equipped with a robust mechanical spring that allows the antenna to deflect upon impact, safeguarding the radio's RF port during tactical maneuvers.
120W High-Power Handling
Engineered to handle intense thermal loads of 120W continuous transmission, ensuring reliable link dominance for high-bandwidth portable radios.
MIL-STD-810G Endurance
Constructed with advanced tactical materials to survive extreme vibration, mechanical shocks from dropping, and corrosive salt-heavy environments.
Battle-Ready IP67 Sealing
Advanced sealing technology ensures performance during heavy rainfall or amphibious operations, protecting RF components from moisture ingress.
Get a Quote / Customization
Contact us for custom manpack connector adaptations or specific tactical camouflage color requirements for your tactical systems.
